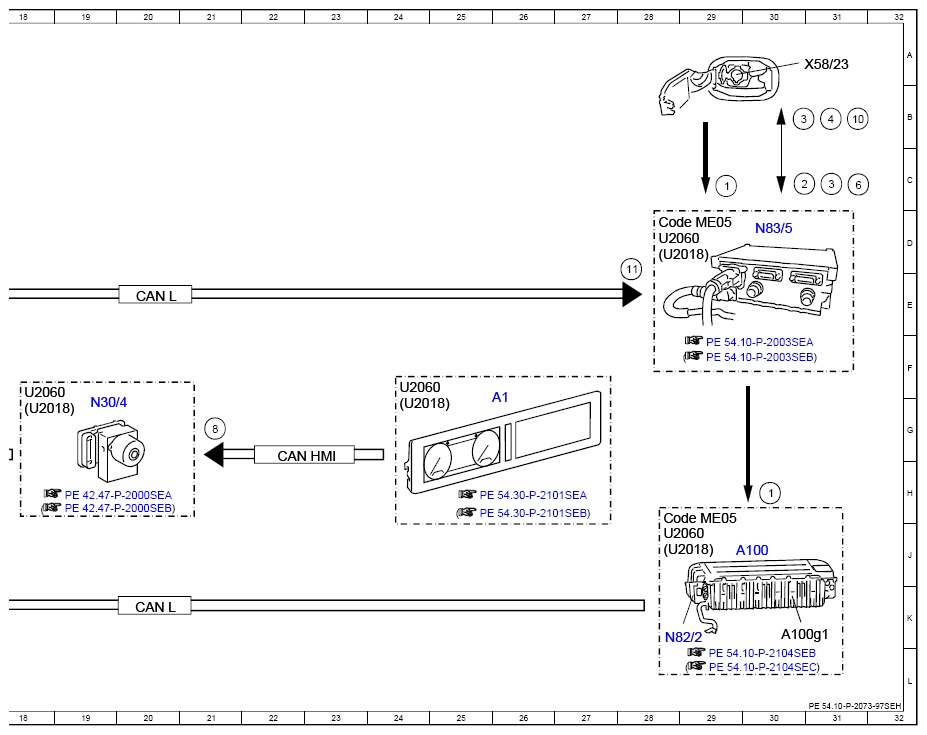

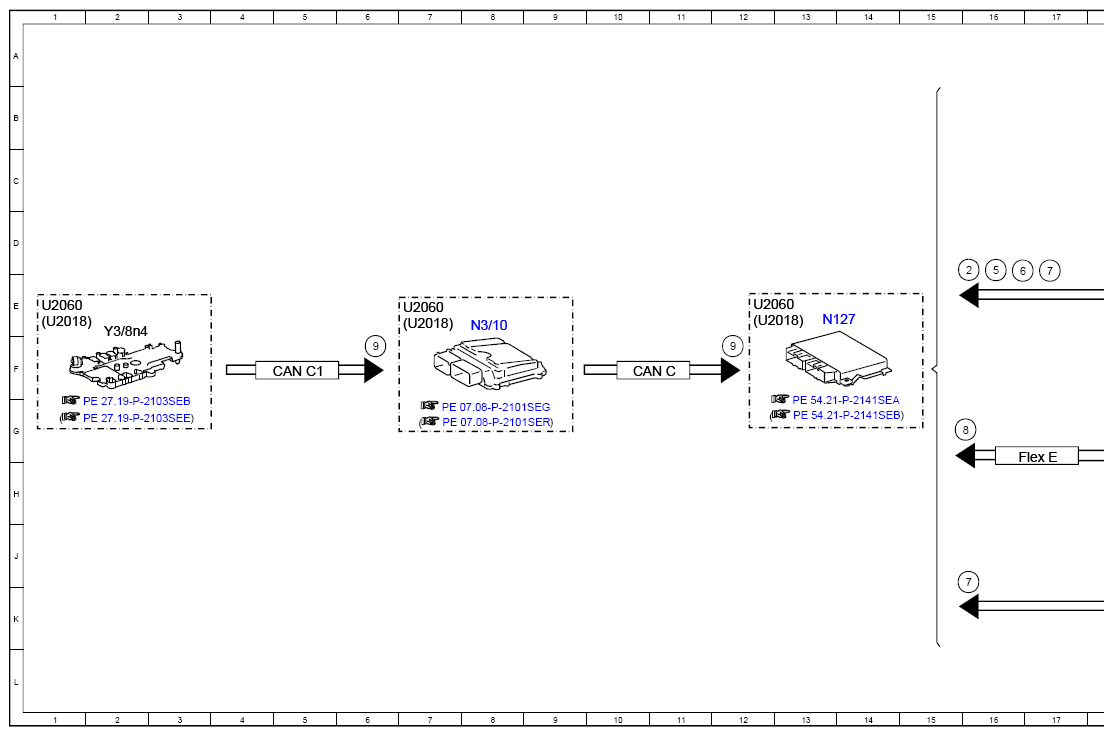

Electrical Function Schematic For Stationary Charging - PE54.10-P-2073-97SEH
Model 222.163 with engine 276
Model 222.173 with engine 276
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Charging current, energy flow | 29C |
| 1 | Charging current, energy flow | 30H |
| 10 | Lock charging cable, actuation | 31B |
| 11 | Charging voltage and charging current, request | 28E |
| 2 | Control Pilot, status | 16D |
| 2 | Control Pilot, status | 30C |
| 3 | External communication, data | 30B |
| 3 | External communication, data | 31C |
| 4 | Indicator lamp, actuation | 31B |
| 5 | Charging voltage and charging current, signal | 16E |
| 6 | Proximity detection, signal | 17D |
| 6 | Proximity detection, signal | 31C |
| 7 | Tolerable charging voltage/current, signal | 17E |
| 7 | Tolerable charging voltage/current, signal | 16J |
| 8 | Operating mode, status | 16G |
| 8 | Operating mode, status | 21G |
| 9 | Gear range, status | 6F |
| 9 | Gear range, status | 12F |
| A1 | Instrument cluster | 26G |
| A100 | High-voltage battery module | 30J |
| A100g1 | High-voltage battery | 30K |
| CAN C | Engine CAN | 10F |
| CAN C1 | Drive train CAN | 5F |
| CAN HMI | User interface CAN | 22G |
| CAN L | Hybrid CAN | 20E |
| CAN L | Hybrid CAN | 20K |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 28H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 28D |
| Flex E | Chassis FlexRay | 17G |
| N127 | Drivetrain control unit | 13E |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N30/4 | Electronic Stability Program control unit | 19G |
| N82/2 | Battery management system control unit | 28K |
| N83/5 | Charger | 30D |
| U2018 | Valid as of model year 2018 | 1E |
| U2018 | Valid as of model year 2018 | 12E |
| U2018 | Valid as of model year 2018 | 18G |
| U2018 | Valid as of model year 2018 | 28J |
| U2018 | Valid as of model year 2018 | 24G |
| U2018 | Valid as of model year 2018 | 7E |
| U2018 | Valid as of model year 2018 | 28D |
| U2060 | Valid up to model year 2018 | 1E |
| U2060 | Valid up to model year 2018 | 12E |
| U2060 | Valid up to model year 2018 | 18F |
| U2060 | Valid up to model year 2018 | 28J |
| U2060 | Valid up to model year 2018 | 24F |
| U2060 | Valid up to model year 2018 | 7E |
| U2060 | Valid up to model year 2018 | 28D |
| X58/23 | Charger feed-in socket | 30A |
| Y3/8n4 | Fully integrated transmission control, control unit | 2E |
