Remove/Install Air Suspension Valve Unit - AR32.22-P-2015LF

Model 217

except code 487 (Active Body Control (ABC))

Model 222

except code 487 (Active Body Control (ABC))

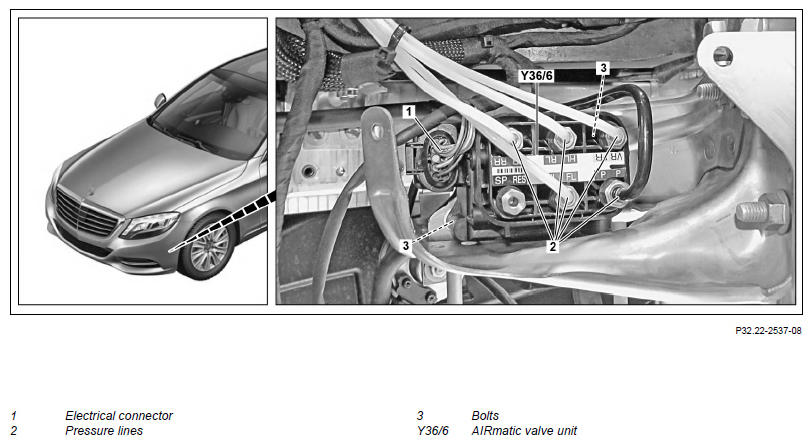

Fig 1: Air Suspension/AIRmatic Valve Unit Components Location - Model 222 Except Code 487

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 without CODE M005 (4MATIC)

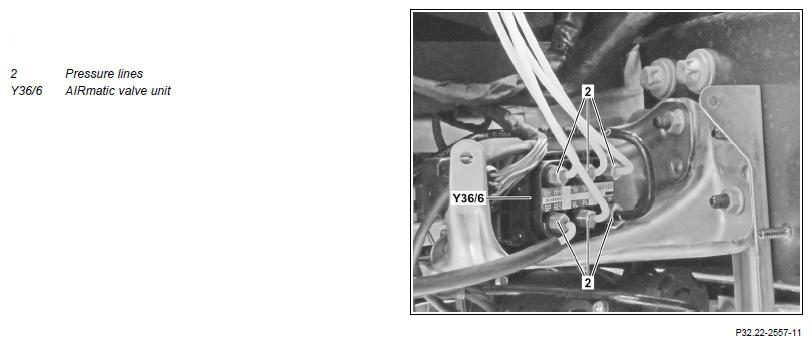

Shown on MODEL 222 With Code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Notes on AIRmatic		AH32.22-P-1000-02LF
	Remove/install
1	Empty AIRmatic using diagnostic system
			AD00.00-P-2000-04B
2	Remove front left fender liner		AR88.10-P-1300LF
3	Detach electrical connector (1) at AIRmatic valve unit (Y36/6)
4	Unscrew pressure lines (2) from AIRmatic valve unit (Y36/6) and seal pressure lines (2) using stop plugs	Mark pressure lines (2) relative to AIRmatic valve unit (Y36/6). Do not interchange pressure lines (2).
		Pressure line to air compressor/valve block	*BA32.22-P-1006-03F
		Record plug If the pressure line connection or pressure line are damaged: ↓ Repair AIRmatic pressure line or pressure line connection.	Fig 4
			AR32.22-P-2001-02SX
		Leak detection spray	*BR00.45-Z-1002-03A
		Socket wrench bit	Fig 2
		Knife	Fig 3
5	Remove screws/bolts (3) and remove AIRmatic valve unit (Y36/6)	Screw/bolt, valve block to bracket for air compressor	*BA32.22-P-1005-03F
	Check
6	Check compressor rubber guide for damage		AR32.22-P-2009LF
		Compressor rubber guide damaged. ↓ Replace compressor rubber guide
7	Install in the reverse order
8	Read out fault memory and erase if necessary
			AD00.00-P-2000-04B
9	Check AIRmatic for leaks		AR32.22-P-8100LF
10	Perform an engine test run and check for proper operation
