Check Condition Of Rear Axle And Control Arms - AP35.20-P-3552C
Model 217, 222

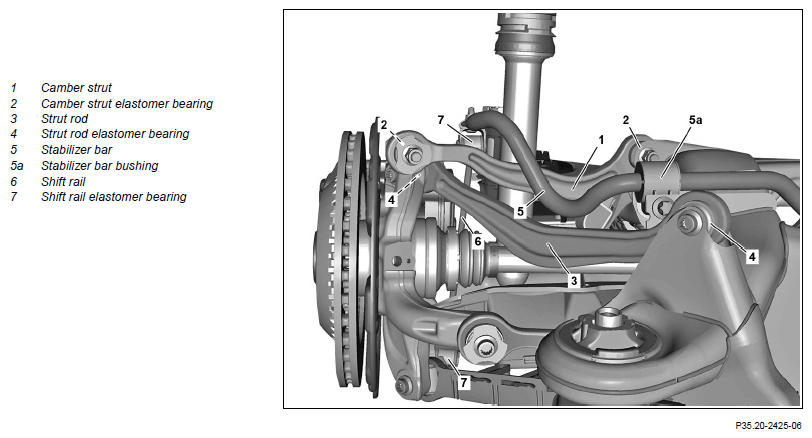

Shown on Model 222.133 With Code M005 (4MATIC)

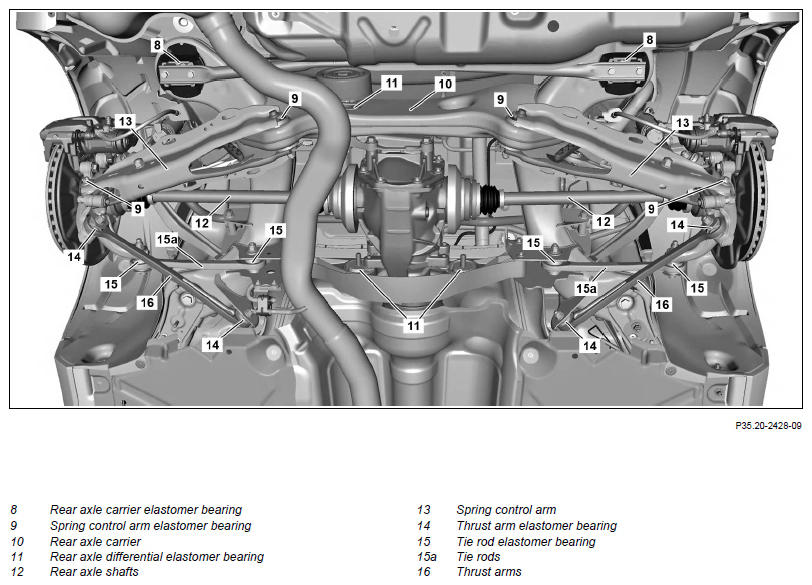

Shown on Model 222.133 With Code M005 (4MATIC)

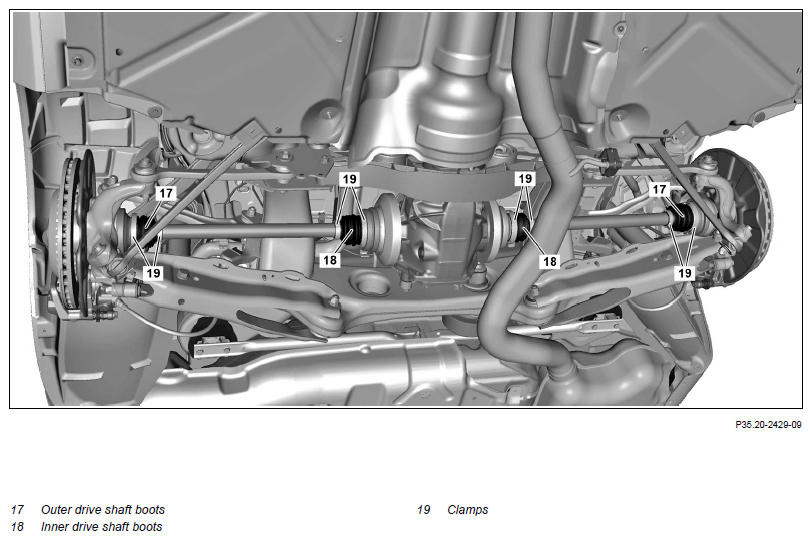

Shown on Model 222.133 With Code M005 (4MATIC)

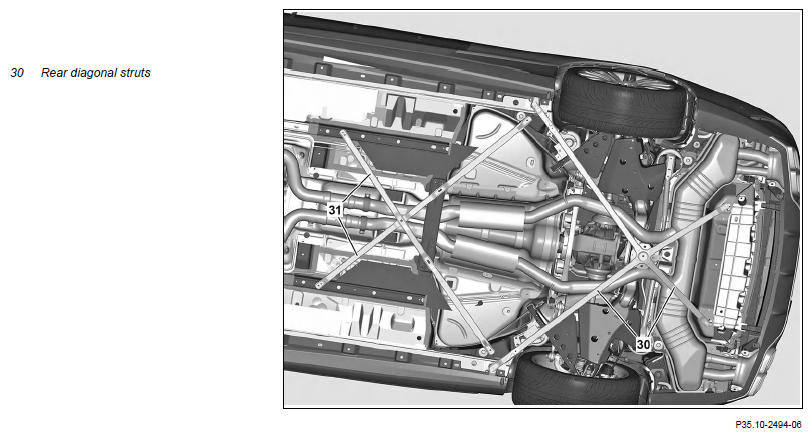

Shown on Model 217.483

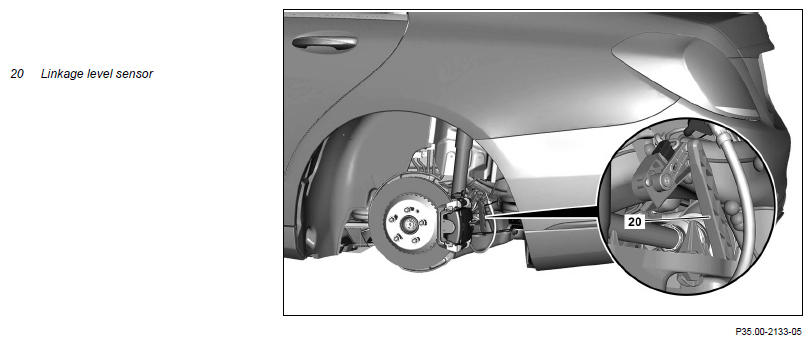

Shown on Model 222.183
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Release parking brake. | ||
| 2 | Lift vehicle with lifting platform. | ||
| AR00.60-P-1000LF | |||
| Check | |||
| 3 | Assess the wheel bearings by firmly tugging, pushing and turning at the wheels. | If problems occur, ↓ rectify the problems. |
|
| 4 | Check camber struts (1) for cracks, deformation and corrosion. | If problems occur, ↓ rectify the problems. |
|
| 5 | Check camber strut elastomer bearings (2) for cracks, deformation and wear as well as play by firmly pulling and pushing them. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 6 | Check rear diagonal struts (30) for cracks, deformation and corrosion. | Model 217.4 If problems occur, ↓ rectify the problems. |
|
| 7 | Check strut rods (3) for cracks, deformation and corrosion. | If problems occur, ↓ rectify the problems. |
|
| 8 | Check strut rod elastomer bearings (4) for cracks, deformation and wear, then check for play by firmly pulling and pushing them. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 9 | Check stabilizer bar (5) for cracks, deformation and corrosion. | Model 217, 222 except code 487 (Active Body Control (ABC)) If problems occur, ↓ rectify the problems. |
|
| 10 | Check stabilizer bar bushings (5a) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | Model 217, 222 except code 487 (Active Body Control (ABC)) Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 11 | Check shift rails (6) for cracks, deformation and corrosion. | Model 217, 222 except code 487 (Active Body Control (ABC)) If problems occur, ↓ rectify the problems. |
|
| 12 | Check shift rail elastomer bearings (7) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | Model 217, 222 except code 487 (Active Body Control (ABC)) Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 13 | Check spring links (13) for cracks, deformation and corrosion. | If problems occur, ↓ rectify the problems. |
|
| 14 | Check spring link elastomer bearings (9) for cracks, deformation and wear as well as for play by firmly pulling and pushing. | If problems occur, ↓ rectify the problems. |
|
| 15 | Check thrust arms (16) for cracks, deformation and corrosion. | If problems occur, ↓ rectify the problems. |
|
| 16 | Check thrust arm elastomer bearings (14) for cracks, deformation and wear as well as for play by firmly pulling and pressing them. | If problems occur, ↓ rectify the problems. |
|
| 17 | Check tie rods (15a) for cracks, deformation and corrosion. | If problems occur, ↓ rectify the problems. |
|
| 18 | Check tie rod elastomer bearings (15) for cracks, deformation and wear as well as for play by firmly pulling and pressing them. | If problems occur, ↓ rectify the problems. |
|
| 19 | Check rear axle carrier (10) for cracks, deformation and corrosion. | If problems occur, ↓ rectify the problems. |
|
| 20 | Check rear axle carrier elastomer bearings (8) for cracks, deformation and wear. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 21 | Check rear axle differential elastomer bearings (11) for cracks, deformation and wear. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 22 | Check condition of rear axle shafts (12). | If problems occur, ↓ rectify the problems. |
|
| 23 | Check outer drive shaft boots (17) for condition, leaktightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 24 | Check inner drive shaft boots (18) for condition, leaktightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If problems occur, ↓ rectify the problems. |
|
| 25 | Check condition and seating of clamps (19). | If problems occur, ↓ rectify the problems. |
|
| 26 | Check linkage level sensor (20) for correct seating, cracks, deformation, corrosion and play. |
Vehicle with level sensor. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977 - 1 If no problems occur, ↓ rectify the problems. |
|
| Finishing activity | |||
| 27 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1000LF |
