Remove/Install Front Stabilizer Bar Link Rod - AR32.35-P-3328LF

Model 217

except code 487 (Active Body Control (ABC))

Model 222

except code 487 (Active Body Control (ABC))

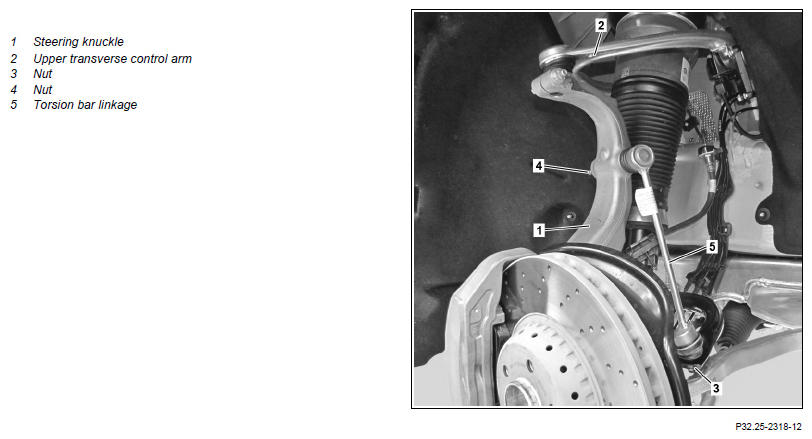

Fig 1: Front Stabilizer/Torsion Bar Link Rod Components Location - Model 222 Except Code 487

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Detach corresponding complete wheel		AR40.10-P-1102A
2	Turn front axle in corresponding direction and unscrew nut (3)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (B7 armoring on special protection version) Nut, torsion bar linkage to torsion bar	*BA32.20-P-1001-02O
3	Unscrew nut (4)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (B7 armoring on special protection version) Nut, torsion bar linkage to steering knuckle	*BA32.20-P-1002-02O
4	Detach corresponding steering knuckle (1) from upper transverse control arm (2)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (B7 armoring on special protection version) Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01T
5	Remove torsion bar linkage (5)
6	Install in the reverse order
