Remove/Install Control Unit (ABC) - AR32.50-P-0023LF
MODEL 217, 222
With Code 487 (Active Body Control (ABC))
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out variant coding of Active Body Control, control unit (N51/2) using diagnostic equipment | When replacing Active Body Control, control unit (N51/2) | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Move the front passenger seat into the rearmost position | ||

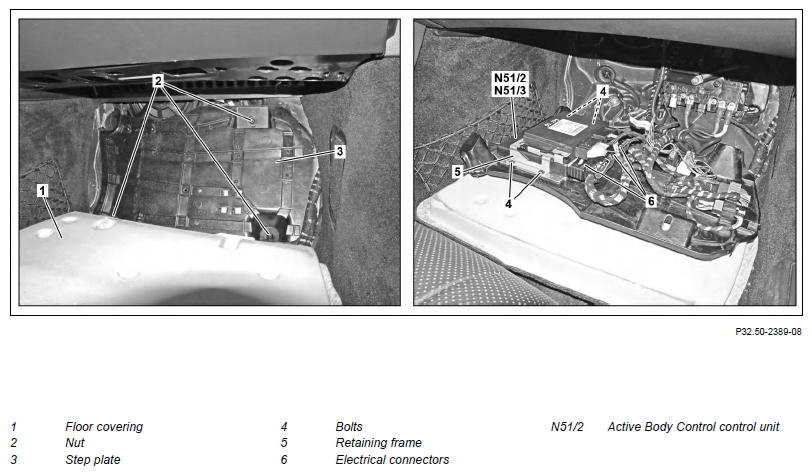

| 4 | Remove floor mat and fold back floor covering (1) in front passenger footwell | ||
| 5 | Unscrew nut (2) from step plate (3) | ||
| 6 | Fold down step plate (3) | ||
| 7 | Unscrew bolts (4), remove retaining frame (5) and place to one side | ||
| 8 | Disconnect electrical connectors (6) from Active Body Control, control unit (N51/2) | ||
| 9 | Remove Active Body Control, control unit (N51/2) | ||
| 10 | Install in the reverse order | ||
| 11 | Read out fault memory using diagnostic unit and clear, if necessary | ||
| AD00.00-P-2000-04B |
