Install/Remove Emergency Buffer - AR32.00-P-1000SX

Model 216.3, 221.0/1

with AIRmatic

Model 217

except code 487 (Active Body Control (ABC))

Model 222

except code 487 (Active Body Control (ABC))

Shown on model 221.1

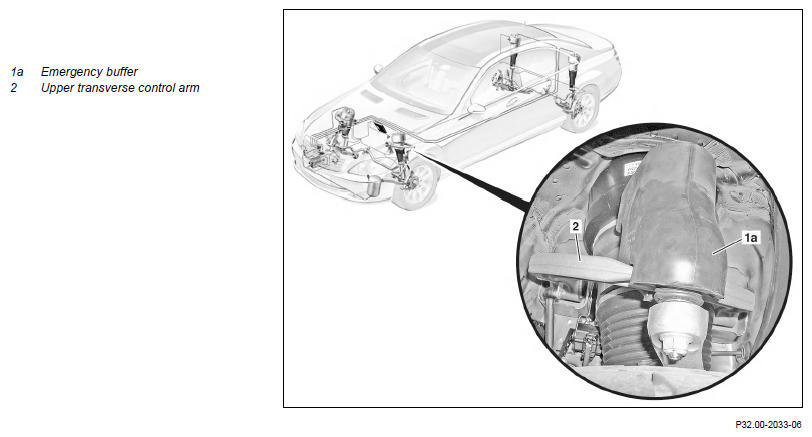

Fig 1: Emergency Buffer Components Location - Model 222 Except Code 487 (Shown On Model 221.1)

Courtesy of MERCEDES-BENZ USA

	Notes on AIRmatic	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC))	AH32.22-P-1000-02LF
	Notes on AIRmatic	Model 216.3, 221.0/1mit AIRmatic	AH32.22-P-1000-02SX
	Install/remove
1	Raise appropriate side of vehicle.
2	Position emergency buffer (1a) on upper transverse control arm (2).	Emergency buffers (1a) should be used for maneuvering only.
		MODEL 217, 222 Set of emergency buffers	Fig 3
		MODEL 216.3, 221.0/1 Set of emergency buffers	Fig 2
3	Slowly lower vehicle.	Make sure that the emergency buffer (1a) rests against the top of the wheel well.
4	Remove in the reverse order
5	Replace upper transverse control arm (2).	MODEL 221 with CODE Z07 (Highest protection) If the emergency buffer (1a) is inserted, the upper ball joint in the upper transverse control arm (2) will be damaged by the increased weight. The upper transverse control arm (2) must be replaced.	AR33.20-P-0500SXS

Fig 2: Identifying Set Of Emergency Buffers (221 589 00 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Emergency Buffers (222 589 00 31 00)

Courtesy of MERCEDES-BENZ USA
