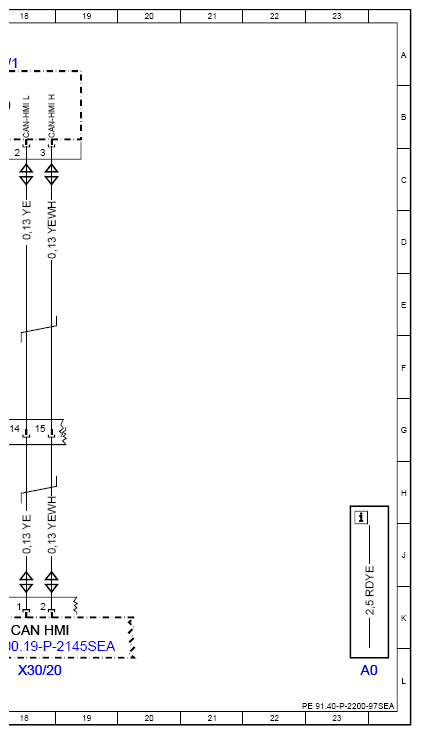

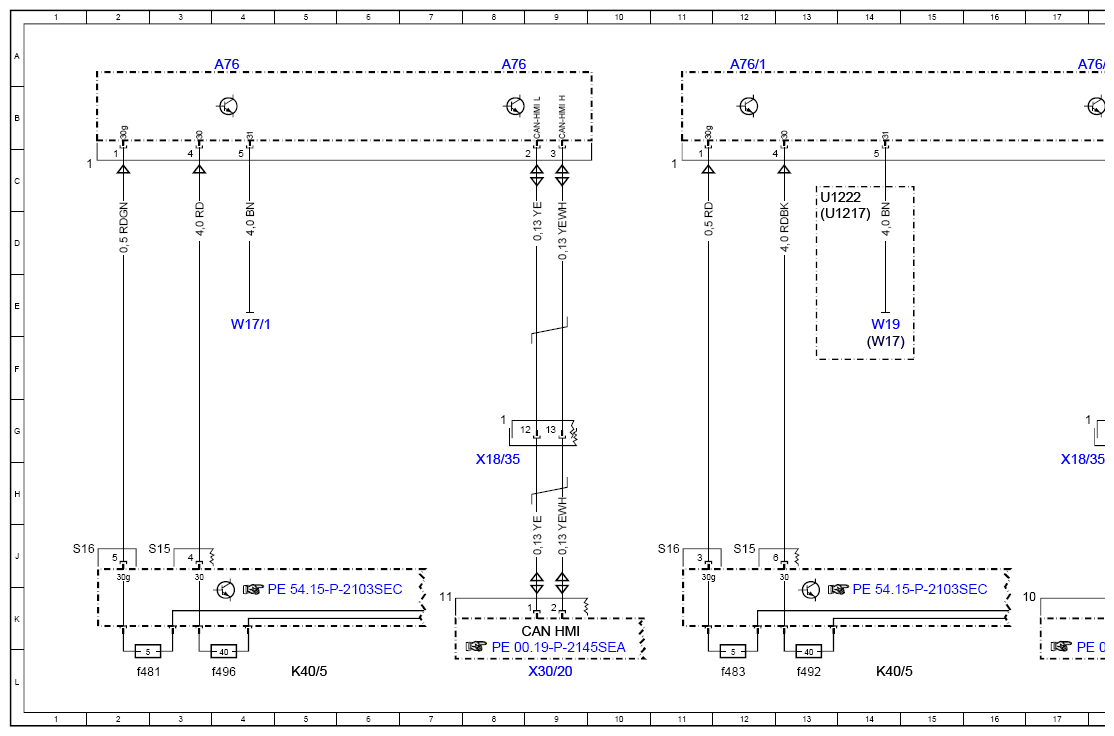

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97SEA
Model 217 up to model year 2018 Control unit A76, control unit A76/1
Model 222 up to model year 2018 Control unit A76, control unit A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A76 | Left front reversible emergency tensioning retractor | 4A |
| A76 | Left front reversible emergency tensioning retractor | 8A |
| A76/1 | Right front reversible emergency tensioning retractor | 17A |
| A76/1 | Right front reversible emergency tensioning retractor | 12A |
| CAN HMI | User interface CAN | 9K |
| CAN HMI | User interface CAN | 18K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5 | Rear fuse and relay module | 14L |
| K40/5f481 | Fuse 481 | 2L |
| K40/5f483 | Fuse 483 | 12L |
| K40/5f492 | Fuse 492 | 13L |
| K40/5f496 | Fuse 496 | 4L |
| U1217 | Valid for model series 217 | 13D |
| U1222 | Valid for model series 222 | 13C |
| W17 | Right rear seat ground point | 14F |
| W17/1 | Left rear seat ground point | 4E |
| W19 | Right front seat crossmember ground point | 14E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 8H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 17H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 9L |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 18L |
