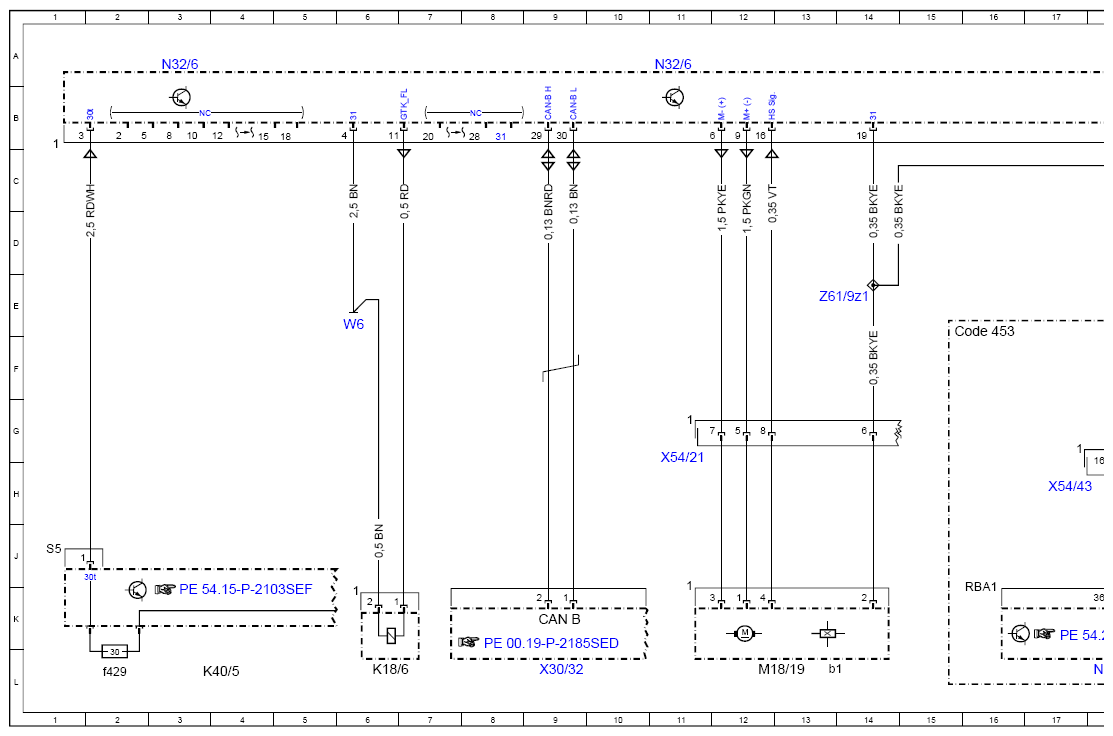

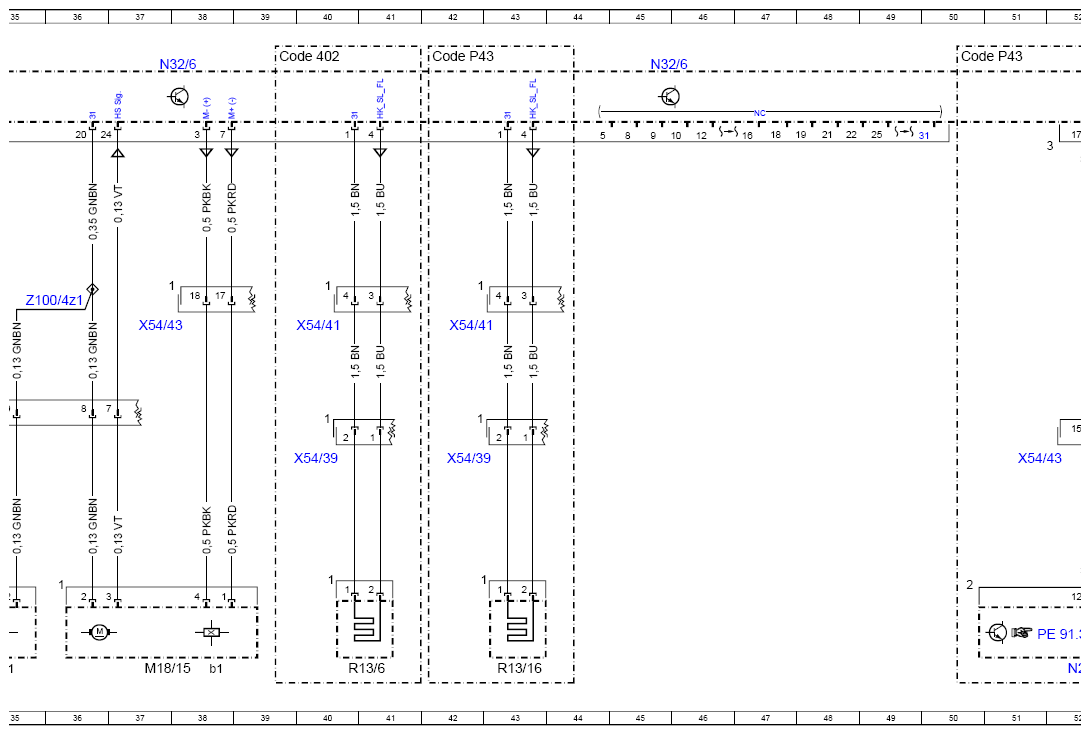

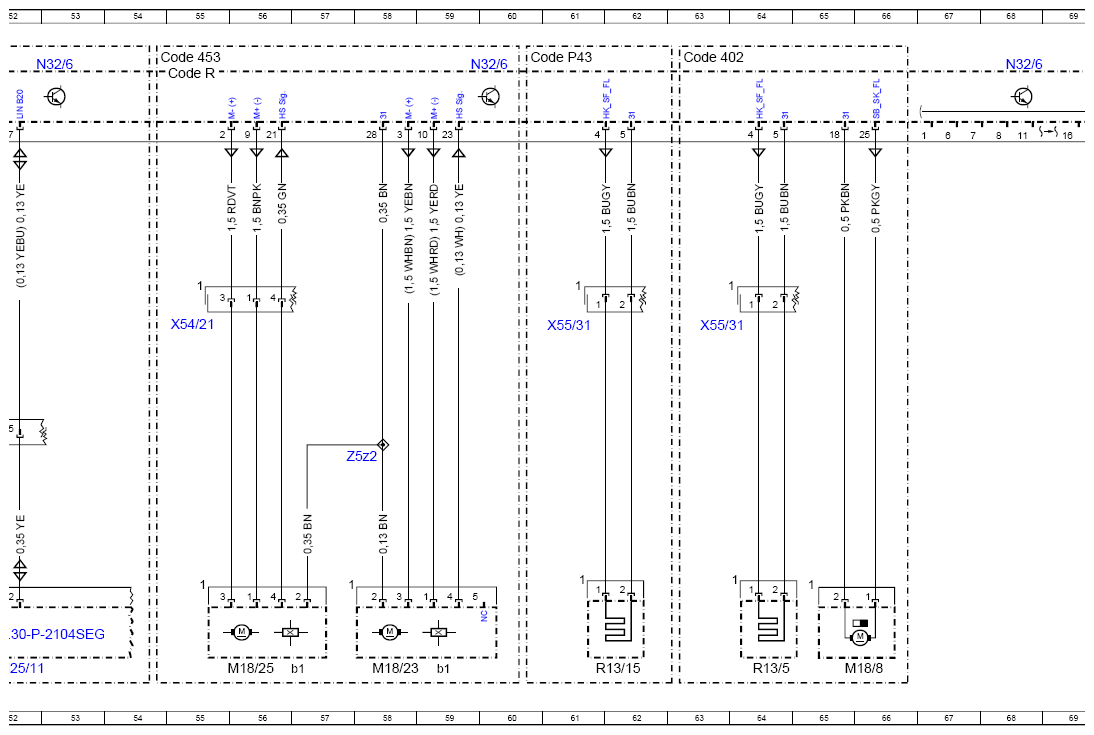

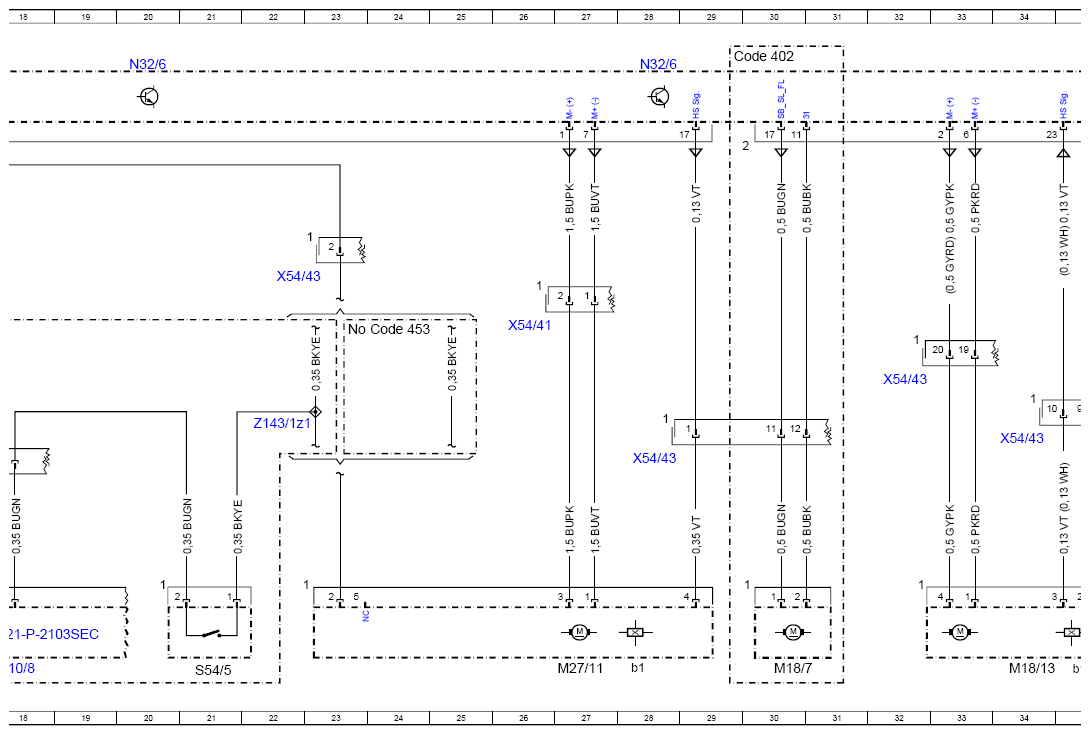

Wiring Diagram For Left Rear Seat Control Unit - PE91.29-P-2106-97SEB
Model 222 as of model year 2018 Control unit N32/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| CAN B | Interior CAN | 9K |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 29A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 39A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 63A |
| Code 453 | Rear reclining seats | 15E |
| Code 453 | Rear reclining seats | 24E |
| Code 453 | Rear reclining seats | 54A |
| Code P43 | Rear seating comfort package | 42A |
| Code P43 | Rear seating comfort package | 50A |
| Code P43 | Rear seating comfort package | 60A |
| Code R | RIGHT-HAND DRIVE | 55A |
| K18/6 | Seat belt comfort-fit function solenoid, left rear seat | 6L |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f429 | Fuse 429 | 2L |
| M18/13 | Left rear seat head restraint height adjustment motor | 34L |
| M18/13b1 | Left rear seat head restraint height adjustment Hall sensor | 35L |
| M18/15 | Left rear seat head restraint inclination adjustment motor | 37L |
| M18/15b1 | Left rear seat head restraint inclination adjustment Hall sensor | 38L |
| M18/19 | Left rear seat cushion inclination adjustment motor | 12L |
| M18/19b1 | Left rear seat cushion inclination adjustment Hall sensor | 13L |
| M18/23 | Left rear seat leg rest inclination adjustment motor | 58L |
| M18/23b1 | Left rear seat leg rest inclination adjustment Hall sensor | 59L |
| M18/25 | Left rear seat leg rest fore/aft adjustment motor | 56L |
| M18/25b1 | Left rear seat leg rest fore/aft adjustment Hall sensor | 57L |
| M18/7 | Left rear seat backrest ventilation motors | 30L |
| M18/8 | Left rear seat cushion ventilation motors | 65L |
| M27/11 | Left rear seat backrest inclination adjustment motor | 27L |
| M27/11b1 | Left rear seat backrest inclination adjustment Hall sensor | 28L |
| N10/8 | Rear SAM control unit | 18L |
| N25/11 | Left rear seat heater control unit | 52L |
| N32/6 | Left rear seat control unit | 3A |
| N32/6 | Left rear seat control unit | 11A |
| N32/6 | Left rear seat control unit | 28A |
| N32/6 | Left rear seat control unit | 20A |
| N32/6 | Left rear seat control unit | 37A |
| N32/6 | Left rear seat control unit | 45A |
| N32/6 | Left rear seat control unit | 53A |
| N32/6 | Left rear seat control unit | 60A |
| N32/6 | Left rear seat control unit | 68A |
| R13/15 | Seat cushion side bolster heater pad, left rear | 62L |
| R13/16 | Backrest side bolster heater pad, left rear | 43L |
| R13/5 | Left rear seat sitting surface heated cushion | 64L |
| R13/6 | Left rear backrest heated cushion | 40L |
| S54/5 | Left rear backrest inclination switch | 21L |
| W6 | Left wheel arch trunk ground point | 6E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 9L |
| X54/21 | Left rear seat longitudinal/inclination adjustment seat adjustment motors electrical connector | 11H |
| X54/21 | Left rear seat longitudinal/inclination adjustment seat adjustment motors electrical connector | 55E |
| X54/39 | Left rear backrest heater pad electrical connector | 40H |
| X54/39 | Left rear backrest heater pad electrical connector | 42H |
| X54/41 | Frame floor assembly/left rear seat backrest electrical connector | 26E |
| X54/41 | Frame floor assembly/left rear seat backrest electrical connector | 40E |
| X54/41 | Frame floor assembly/left rear seat backrest electrical connector | 42E |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 32F |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 28H |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 17H |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 34G |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 22E |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 37E |
| X54/43 | Frame floor assembly/left rear seat backrest electrical connector | 51H |
| X55/31 | Left rear seat sitting surface heater pad electrical connector | 61E |
| X55/31 | Left rear seat sitting surface heater pad electrical connector | 63E |
| Z100/4z1 | Head restraint adjustment Hall sensor connector sleeve | 36E |
| Z143/1z1 | Left rear backrest inclination connector sleeve | 22G |
| Z5z2 | Connector sleeve in wiring harness | 58G |
| Z61/9z1 | Hall sensor circuit 31 connector sleeve | 14E |
