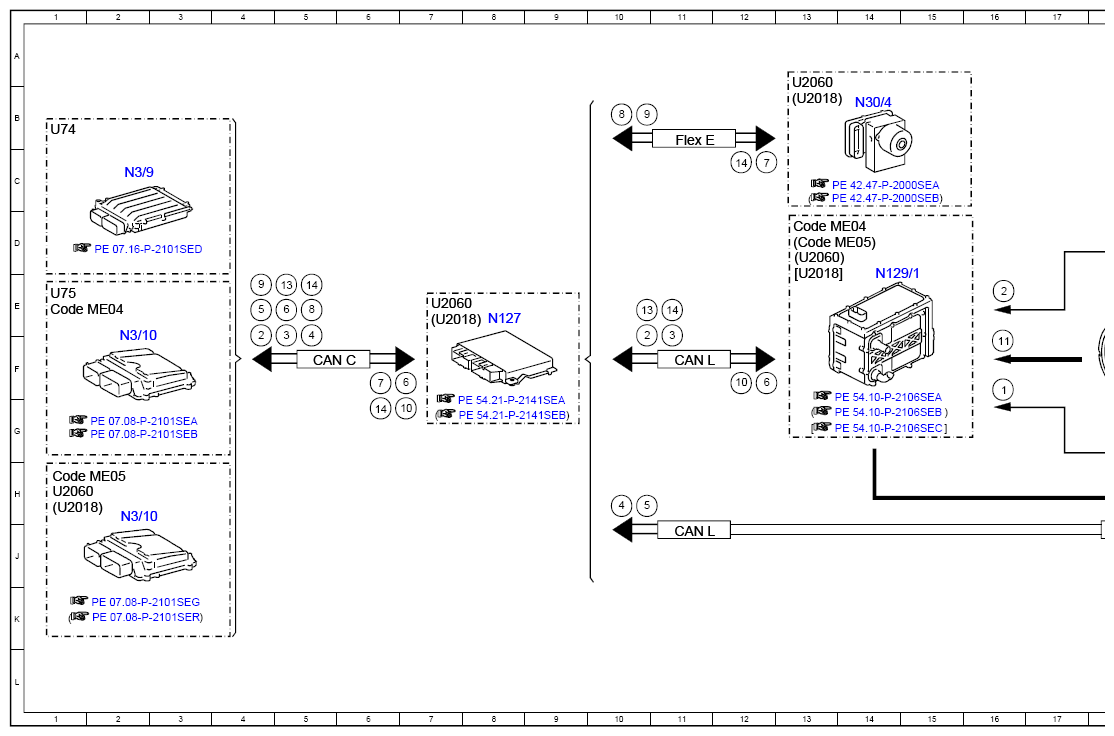

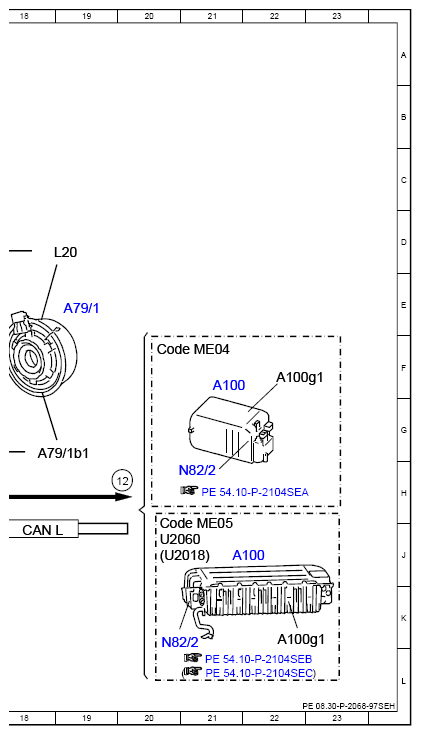

Electrical Function Schematic For Regenerative Braking - PE08.30-P-2068-97SEH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electric machine temperature, signal | 16F |
| 10 | Electric machine specified torque, request | 12F |
| 10 | Electric machine specified torque, request | 7G |
| 11 | Charging current from alternator operation, energy flow | 16F |
| 12 | Charging current, energy flow | 20H |
| 13 | Charging voltage and charging current, signal | 10E |
| 13 | Charging voltage and charging current, signal | 5E |
| 14 | Generated regenerative braking torque, signal | 12C |
| 14 | Generated regenerative braking torque, signal | 11E |
| 14 | Generated regenerative braking torque, signal | 5E |
| 14 | Generated regenerative braking torque, signal | 6G |
| 2 | Electric machine rpm, signal | 16E |
| 2 | Electric machine rpm, signal | 10F |
| 2 | Electric machine rpm, signal | 4F |
| 3 | Electric machine, status | 11F |
| 3 | Electric machine, status | 5F |
| 4 | High-voltage battery voltage, signal | 10H |
| 4 | High-voltage battery voltage, signal | 5F |
| 5 | High-voltage battery temperature, signal | 10H |
| 5 | High-voltage battery temperature, signal | 4E |
| 6 | Tolerable charging voltage/current, signal | 12F |
| 6 | Tolerable charging voltage/current, signal | 5E |
| 6 | Tolerable charging voltage/current, signal | 7F |
| 7 | Available regenerative braking torque, signal | 12C |
| 7 | Available regenerative braking torque, signal | 6F |
| 8 | Regenerative braking torque, request | 10B |
| 8 | Regenerative braking torque, request | 5E |
| 9 | Wheel speed, signal | 10B |
| 9 | Wheel speed, signal | 4E |
| A100 | High-voltage battery module | 21F |
| A100 | High-voltage battery module | 21J |
| A100g1 | High-voltage battery | 22F |
| A100g1 | High-voltage battery | 22K |
| A79/1 | Electric machine | 19E |
| A79/1b1 | Electric machine temperature sensor | 18G |
| CAN C | Engine CAN | 5F |
| CAN L | Hybrid CAN | 11F |
| CAN L | Hybrid CAN | 11J |
| CAN L | Hybrid CAN | 18J |
| Code ME04 | Mild hybrid drive | 1E |
| Code ME04 | Mild hybrid drive | 20F |
| Code ME04 | Mild hybrid drive | 13D |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 20J |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 1H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 13D |
| Flex E | Chassis FlexRay | 11B |
| L20 | Electric machine rotor position sensor | 19D |
| N127 | Drivetrain control unit | 8E |
| N129/1 | Power electronics control unit | 14E |
| N3/10 | ME-SFI [ME] control unit | 2F |
| N3/10 | ME-SFI [ME] control unit | 2H |
| N3/9 | CDI control unit | 2C |
| N30/4 | Electronic Stability Program control unit | 14B |
| N82/2 | Battery management system control unit | 21H |
| N82/2 | Battery management system control unit | 20K |
| U2018 | Valid as of model year 2018 | 7E |
| U2018 | Valid as of model year 2018 | 13B |
| U2018 | Valid as of model year 2018 | 20J |
| U2018 | Valid as of model year 2018 | 1H |
| U2018 | Valid as of model year 2018 | 13E |
| U2060 | Valid up to model year 2018 | 7E |
| U2060 | Valid up to model year 2018 | 13B |
| U2060 | Valid up to model year 2018 | 20J |
| U2060 | Valid up to model year 2018 | 1H |
| U2060 | Valid up to model year 2018 | 13D |
| U74 | Valid for diesel engines | 1B |
| U75 | Valid for gasoline engines | 1E |
