Electrical Function Schematic For Driving Conditions Of The Hybrid Drive System - PE08.30-P-2069-97SEH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operating mode, request | 2D |
| 1 | Operating mode, request | 14K |
| 1 | Operating mode, request | 34K |
| 1 | Operating mode, request | 38H |
| 10 | Discharge current for motor operation, energy flow | 21E |
| 11 | Charging current from alternator operation, energy flow | 20E |
| 12 | Charging current, energy flow | 24H |
| 13 | Charging voltage and charging current, signal | 14E |
| 13 | Charging voltage and charging current, signal | 8E |
| 14 | Electrical machine rotor position, signal | 20D |
| 15 | Charging voltage and charging current, request | 16F |
| 15 | Charging voltage and charging current, request | 10G |
| 16 | High-voltage battery voltage, signal | 14J |
| 16 | High-voltage battery voltage, signal | 8E |
| 17 | High-voltage battery temperature, signal | 14J |
| 17 | High-voltage battery temperature, signal | 9E |
| 18 | Available torque, signal | 14E |
| 18 | Available torque, signal | 8E |
| 19 | Electric machine generative torque, signal | 15E |
| 19 | Electric machine generative torque, signal | 8E |
| 2 | Operating mode, status | 4E |
| 2 | Operating mode, status | 14E |
| 2 | Operating mode, status | 8F |
| 2 | Operating mode, status | 33G |
| 2 | Operating mode, status | 30K |
| 20 | Electric machine motor torque, signal | 14D |
| 20 | Electric machine motor torque, signal | 9E |
| 21 | Wet clutch, request | 2E |
| 22 | Wet clutch, status | 4E |
| 23 | Discharge voltage and discharge current, request | 16F |
| 23 | Discharge voltage and discharge current, request | 10G |
| 24 | Wheel speed, signal | 14B |
| 24 | Wheel speed, signal | 8D |
| 25 | Torque lowering/ESP dynamics, request | 14B |
| 25 | Torque lowering/ESP dynamics, request | 8D |
| 26 | Torque change/DISTRONIC dynamics, request | 14C |
| 26 | Torque change/DISTRONIC dynamics, request | 9D |
| 27 | Accelerator pedal sensor, signal | 4G |
| 28 | Service brake, status | 15B |
| 28 | Service brake, status | 9D |
| 29 | Transmission mode button, status | 14K |
| 29 | Transmission mode button, status | 34K |
| 29 | Transmission mode button, status | 39H |
| 3 | Electric machine rpm, signal | 14E |
| 3 | Electric machine rpm, signal | 20D |
| 3 | Electric machine rpm, signal | 9F |
| 4 | Electric machine temperature, signal | 20F |
| 5 | Electric machine, status | 15E |
| 5 | Electric machine, status | 9F |
| 6 | Tolerable discharge voltage/current, signal | 16F |
| 6 | Tolerable discharge voltage/current, signal | 10F |
| 7 | Tolerable charging voltage/current, signal | 16F |
| 7 | Tolerable charging voltage/current, signal | 10F |
| 8 | Electric machine specified torque, request | 15F |
| 8 | Electric machine specified torque, request | 10F |
| 9 | Discharge current, energy flow | 18H |
| A1 | Instrument cluster | 32E |
| A100 | High-voltage battery module | 26F |
| A100 | High-voltage battery module | 26H |
| A100g1 | High-voltage battery | 27F |
| A100g1 | High-voltage battery | 27K |
| A26/17 | Head unit | 37J |

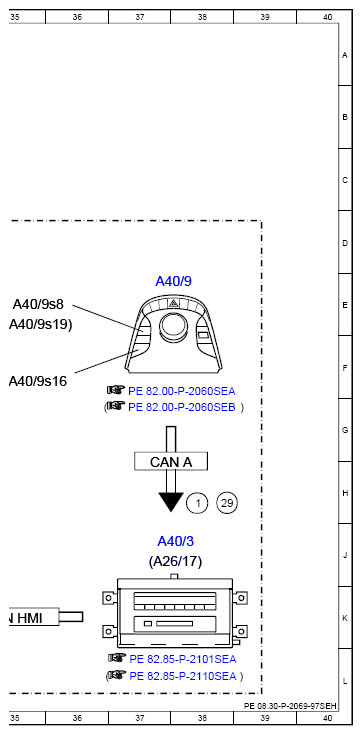

| A40/3 | COMAND control unit | 37J |
| A40/9 | Audio/COMAND control panel | 37E |
| A40/9s16 | Operating mode select button | 35F |
| A40/9s19 | DYNAMIC SELECT switch | 35E |
| A40/9s8 | Transmission mode button | 35E |

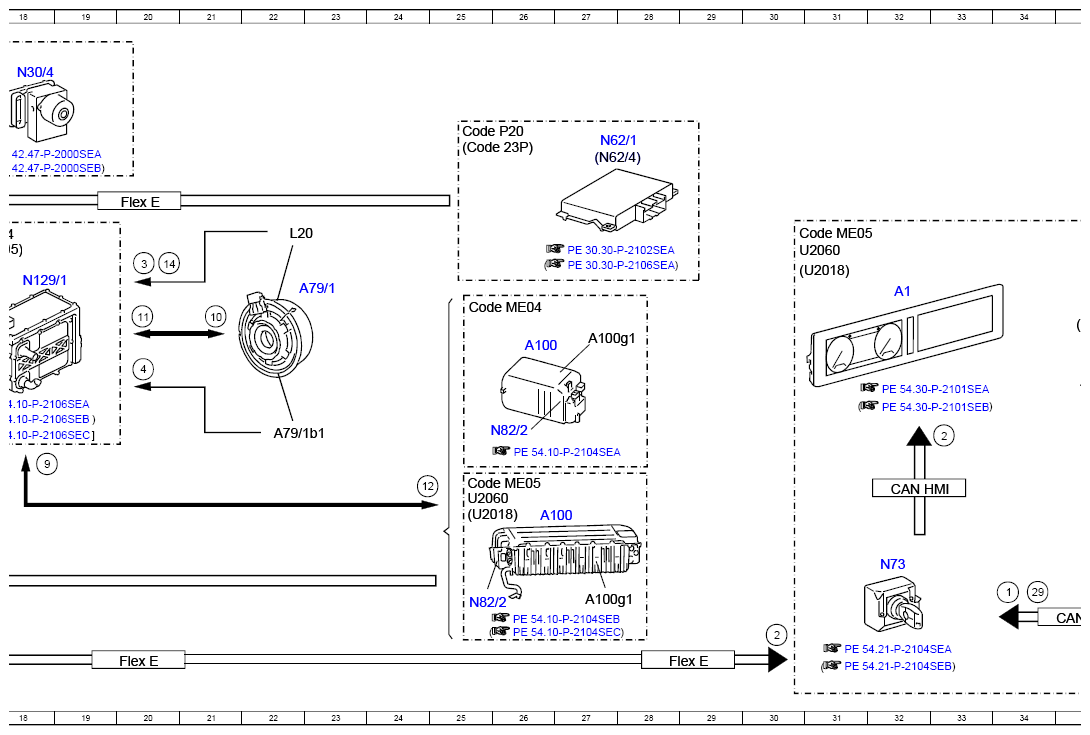

| A79/1 | Electric machine | 23E |
| A79/1b1 | Electric machine temperature sensor | 22G |
| B37 | Accelerator pedal sensor | 2J |
| CAN A | Telematics CAN | 37H |
| CAN C | Engine CAN | 9F |
| CAN C1 | Drive train CAN | 3E |
| CAN HMI | User interface CAN | 35K |
| CAN HMI | User interface CAN | 32H |
| CAN L | Hybrid CAN | 15F |
| CAN L | Hybrid CAN | 15K |
| Code 23P | Driver assistance package | 25C |
| Code ME04 | Mild hybrid drive | 5E |
| Code ME04 | Mild hybrid drive | 25E |
| Code ME04 | Mild hybrid drive | 17D |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 30D |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 25H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 5H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 17D |
| Code P20 | Driver assistance package PLUS | 25B |
| Flex E | Chassis FlexRay | 15B |
| Flex E | Chassis FlexRay | 20C |
| Flex E | Chassis FlexRay | 28L |
| Flex E | Chassis FlexRay | 20L |
| L20 | Electric machine rotor position sensor | 22D |

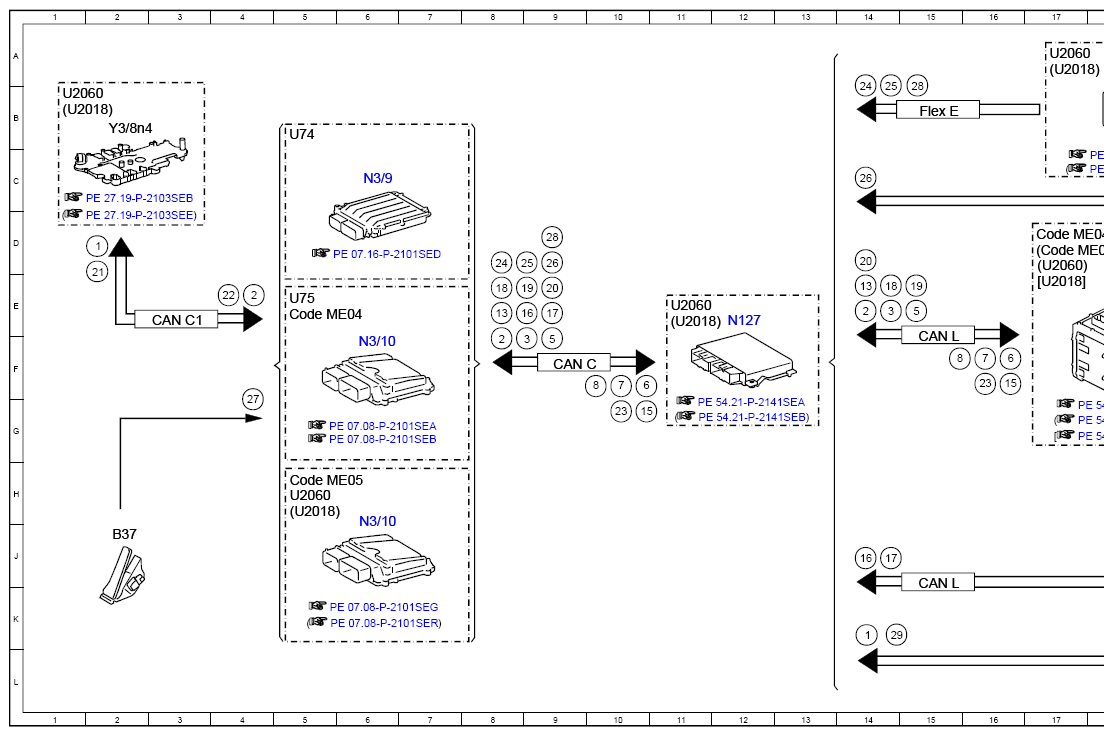

| N127 | Drivetrain control unit | 12E |
| N129/1 | Power electronics control unit | 18E |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N3/9 | CDI control unit | 6C |
| N30/4 | Electronic Stability Program control unit | 18A |
| N62/1 | Radar sensors control unit | 27B |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 27C |
| N73 | Electronic ignition switch control unit | 32J |
| N82/2 | Battery management system control unit | 26G |
| N82/2 | Battery management system control unit | 25K |
| U2018 | Valid as of model year 2018 | 1B |
| U2018 | Valid as of model year 2018 | 11E |
| U2018 | Valid as of model year 2018 | 17A |
| U2018 | Valid as of model year 2018 | 30E |
| U2018 | Valid as of model year 2018 | 25H |
| U2018 | Valid as of model year 2018 | 5H |
| U2018 | Valid as of model year 2018 | 17E |
| U2060 | Valid up to model year 2018 | 1B |
| U2060 | Valid up to model year 2018 | 11E |
| U2060 | Valid up to model year 2018 | 17A |
| U2060 | Valid up to model year 2018 | 30D |
| U2060 | Valid up to model year 2018 | 25H |
| U2060 | Valid up to model year 2018 | 5H |
| U2060 | Valid up to model year 2018 | 17D |
| U74 | Valid for diesel engines | 5B |
| U75 | Valid for gasoline engines | 5E |
| Y3/8n4 | Fully integrated transmission control, control unit | 2B |
