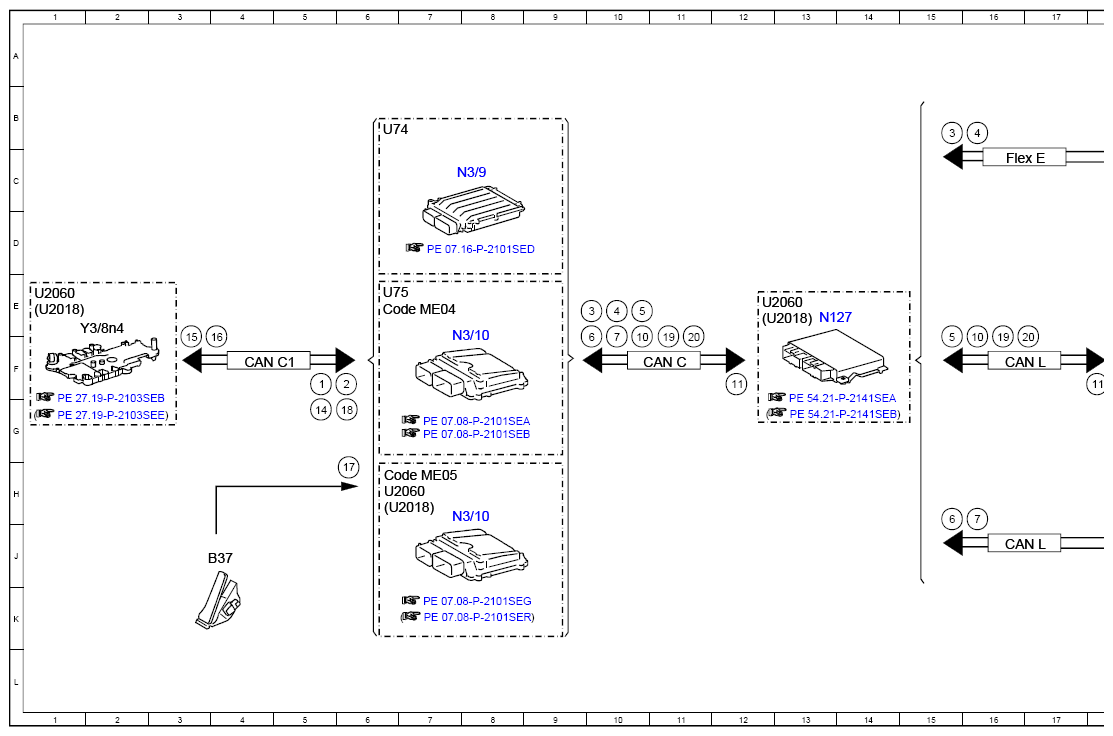

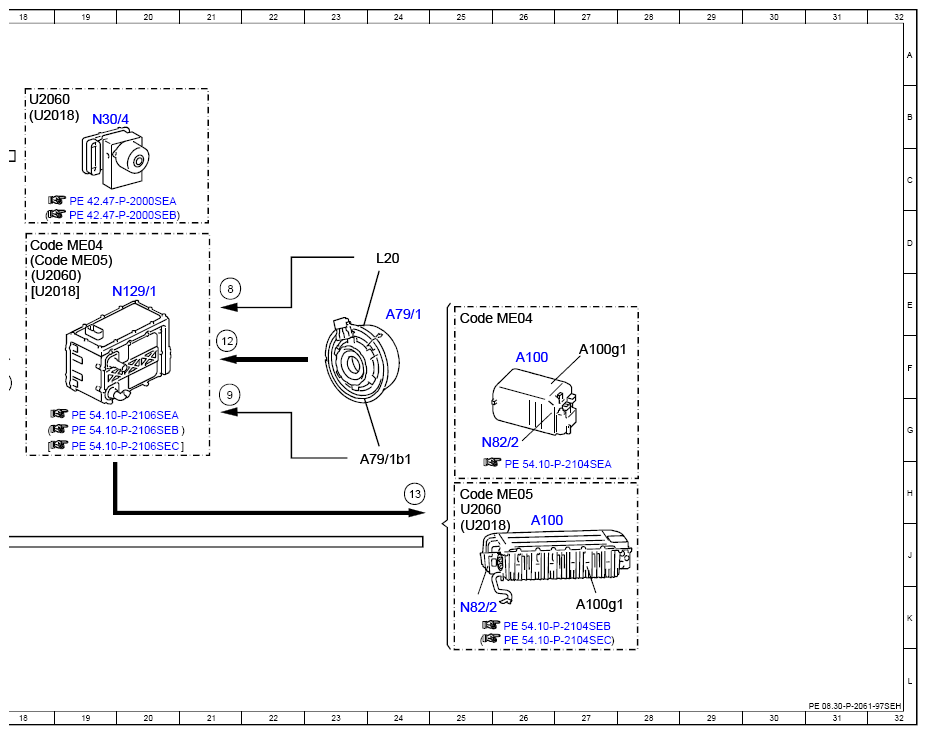

Electrical Function Schematic For Deceleration Mode - PE08.30-P-2061-97SEH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Transmission oil temperature, signal | 5F |
| 10 | Electric machine, status | 16F |
| 10 | Electric machine, status | 10F |
| 11 | Electric machine specified torque, request | 18F |
| 11 | Electric machine specified torque, request | 12F |
| 12 | Charging current from alternator operation, energy flow | 21F |
| 13 | Charging current, energy flow | 24H |
| 14 | Wet clutch, status | 5G |
| 15 | Wet clutch, request | 3F |
| 16 | Operating mode, status | 4F |
| 17 | Accelerator pedal sensor, signal | 6H |
| 18 | Electric auxiliary oil pump, status | 6G |
| 19 | Electric machine motor torque, signal | 11F |
| 19 | Electric machine motor torque, signal | 16F |
| 2 | Gear range, status | 6F |
| 20 | Electric machine generative torque, signal | 11F |
| 20 | Electric machine generative torque, signal | 17F |
| 3 | Service brake, status | 15B |
| 3 | Service brake, status | 10E |
| 4 | Wheel speed, signal | 16B |
| 4 | Wheel speed, signal | 10E |
| 5 | Tolerable charging voltage/current, signal | 15F |
| 5 | Tolerable charging voltage/current, signal | 10E |
| 6 | High-voltage battery voltage, signal | 15H |
| 6 | High-voltage battery voltage, signal | 10F |
| 7 | High-voltage battery temperature, signal | 16H |
| 7 | High-voltage battery temperature, signal | 10F |
| 8 | Electric machine rpm, signal | 21E |
| 9 | Electric machine temperature, signal | 21G |
| A100 | High-voltage battery module | 26F |
| A100 | High-voltage battery module | 26J |
| A100g1 | High-voltage battery | 27F |
| A100g1 | High-voltage battery | 27K |
| A79/1 | Electric machine | 24E |
| A79/1b1 | Electric machine temperature sensor | 24H |
| B37 | Accelerator pedal sensor | 4J |
| CAN C | Engine CAN | 11F |
| CAN C1 | Drive train CAN | 4F |
| CAN L | Hybrid CAN | 16F |
| CAN L | Hybrid CAN | 16J |
| Code ME04 | Mild hybrid drive | 6E |
| Code ME04 | Mild hybrid drive | 25E |
| Code ME04 | Mild hybrid drive | 18D |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 25H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 6H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 18D |
| Flex E | Chassis FlexRay | 16C |
| L20 | Electric machine rotor position sensor | 24D |
| N127 | Drivetrain control unit | 13E |
| N129/1 | Power electronics control unit | 20E |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N3/10 | ME-SFI [ME] control unit | 8H |
| N3/9 | CDI control unit | 8C |
| N30/4 | Electronic Stability Program control unit | 19B |
| N82/2 | Battery management system control unit | 25G |
| N82/2 | Battery management system control unit | 25K |
| U2018 | Valid as of model year 2018 | 1E |
| U2018 | Valid as of model year 2018 | 12E |
| U2018 | Valid as of model year 2018 | 25J |
| U2018 | Valid as of model year 2018 | 18B |
| U2018 | Valid as of model year 2018 | 6H |
| U2018 | Valid as of model year 2018 | 18E |
| U2060 | Valid up to model year 2018 | 1E |
| U2060 | Valid up to model year 2018 | 12E |
| U2060 | Valid up to model year 2018 | 25H |
| U2060 | Valid up to model year 2018 | 18B |
| U2060 | Valid up to model year 2018 | 6H |
| U2060 | Valid up to model year 2018 | 18E |
| U74 | Valid for diesel engines | 6B |
| U75 | Valid for gasoline engines | 6E |
| Y3/8n4 | Fully integrated transmission control, control unit | 2E |
