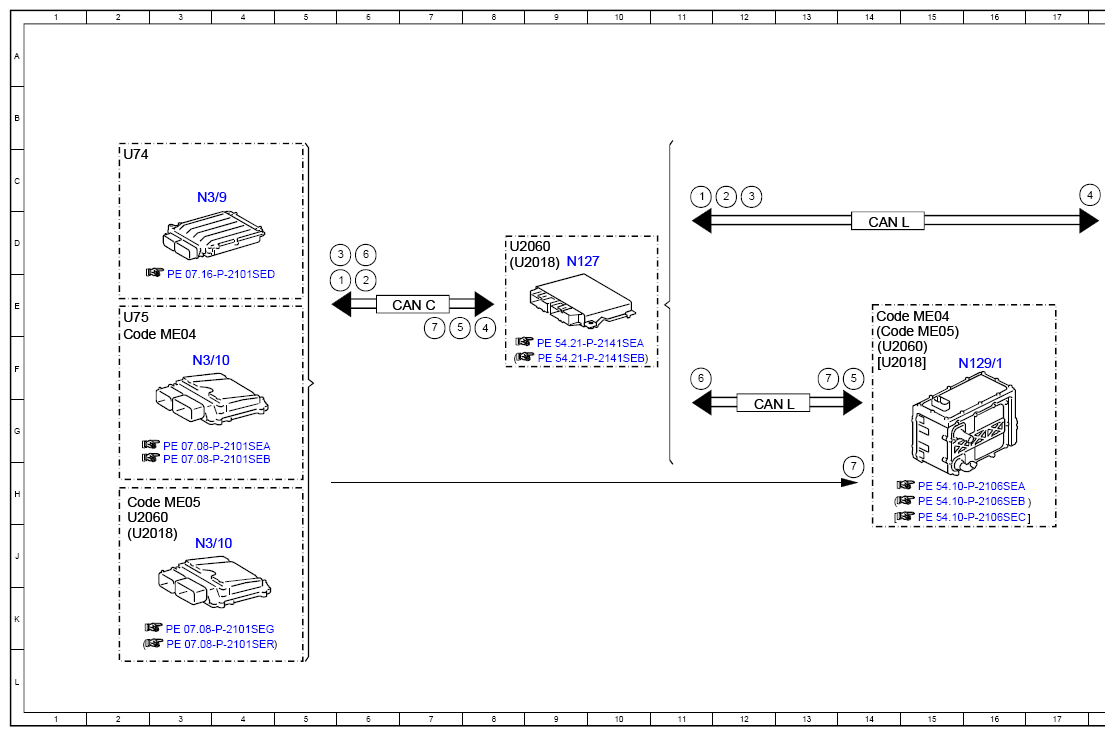

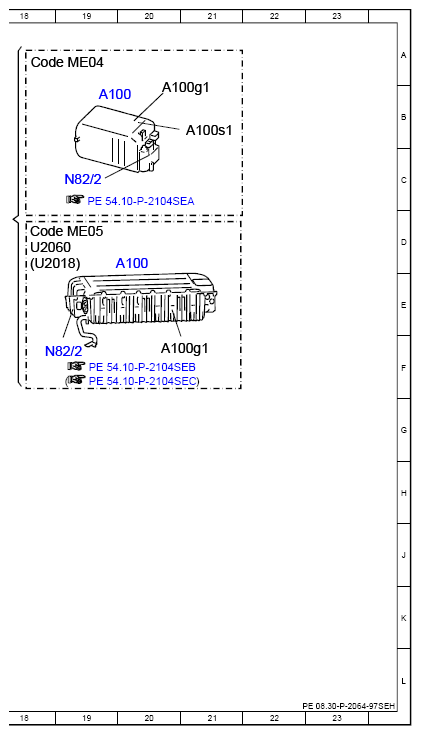

Electrical Function Schematic For Deactivation Of The Hybrid Drive System - PE08.30-P-2064-97SEH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104
| Code: | Designation: | Position: |
|---|---|---|
| 1 | High-voltage battery voltage, signal | 11C |
| 1 | High-voltage battery voltage, signal | 6E |
| 2 | High-voltage battery temperature, signal | 12C |
| 2 | High-voltage battery temperature, signal | 6E |
| 3 | Contactor, status | 12C |
| 3 | Contactor, status | 6D |
| 4 | Contactor, request | 18C |
| 4 | Contactor, request | 8E |
| 5 | Intermediate circuit discharging, request | 14F |
| 5 | Intermediate circuit discharging, request | 7E |
| 6 | Intermediate circuit discharging, status | 11F |
| 6 | Intermediate circuit discharging, status | 6D |
| 7 | High-voltage on-board electrical system consumers OFF, request | 13F |
| 7 | High-voltage on-board electrical system consumers OFF, request | 7E |
| 7 | High-voltage on-board electrical system consumers OFF, request | 14H |
| A100 | High-voltage battery module | 19B |
| A100 | High-voltage battery module | 20D |
| A100g1 | High-voltage battery | 20B |
| A100g1 | High-voltage battery | 20F |
| A100s1 | Contactor | 21B |
| CAN C | Engine CAN | 7E |
| CAN L | Hybrid CAN | 12G |
| CAN L | Hybrid CAN | 14D |
| Code ME04 | Mild hybrid drive | 2F |
| Code ME04 | Mild hybrid drive | 18A |
| Code ME04 | Mild hybrid drive | 14E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 18D |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 2H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 14E |
| N127 | Drivetrain control unit | 9D |
| N129/1 | Power electronics control unit | 16F |
| N3/10 | ME-SFI [ME] control unit | 3F |
| N3/10 | ME-SFI [ME] control unit | 3J |
| N3/9 | CDI control unit | 3C |
| N82/2 | Battery management system control unit | 19C |
| N82/2 | Battery management system control unit | 18F |
| U2018 | Valid as of model year 2018 | 8D |
| U2018 | Valid as of model year 2018 | 18D |
| U2018 | Valid as of model year 2018 | 2J |
| U2018 | Valid as of model year 2018 | 14F |
| U2060 | Valid up to model year 2018 | 8D |
| U2060 | Valid up to model year 2018 | 18D |
| U2060 | Valid up to model year 2018 | 2H |
| U2060 | Valid up to model year 2018 | 14F |
| U74 | Valid for diesel engines | 2C |
| U75 | Valid for gasoline engines | 2E |
