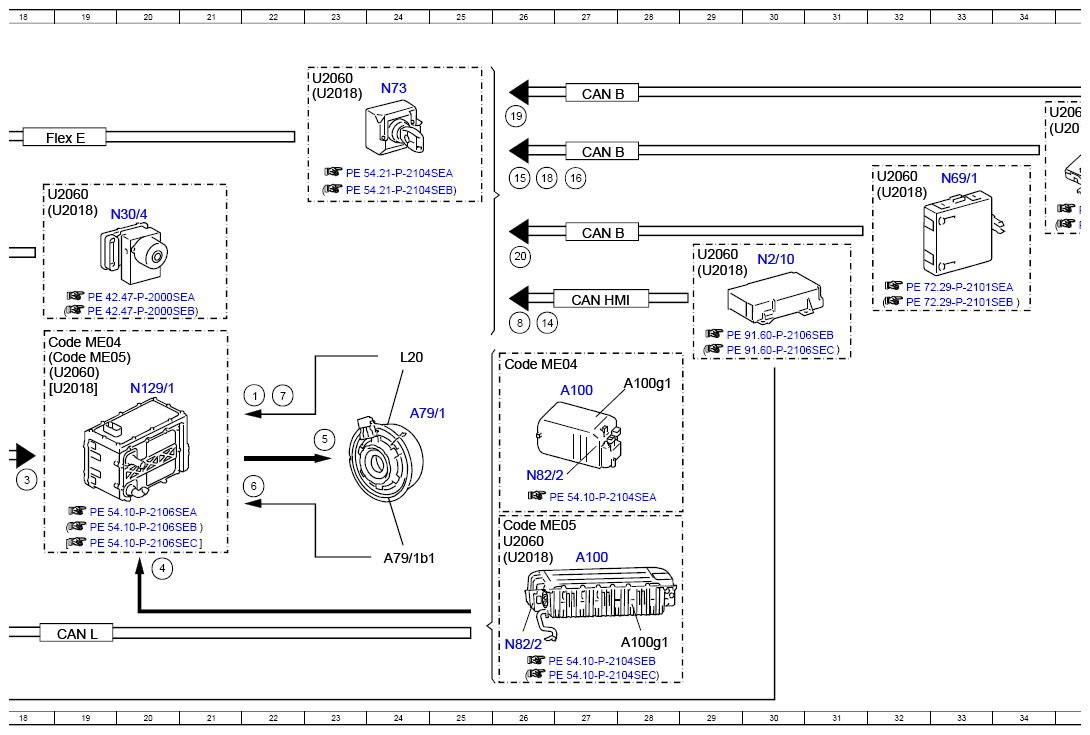

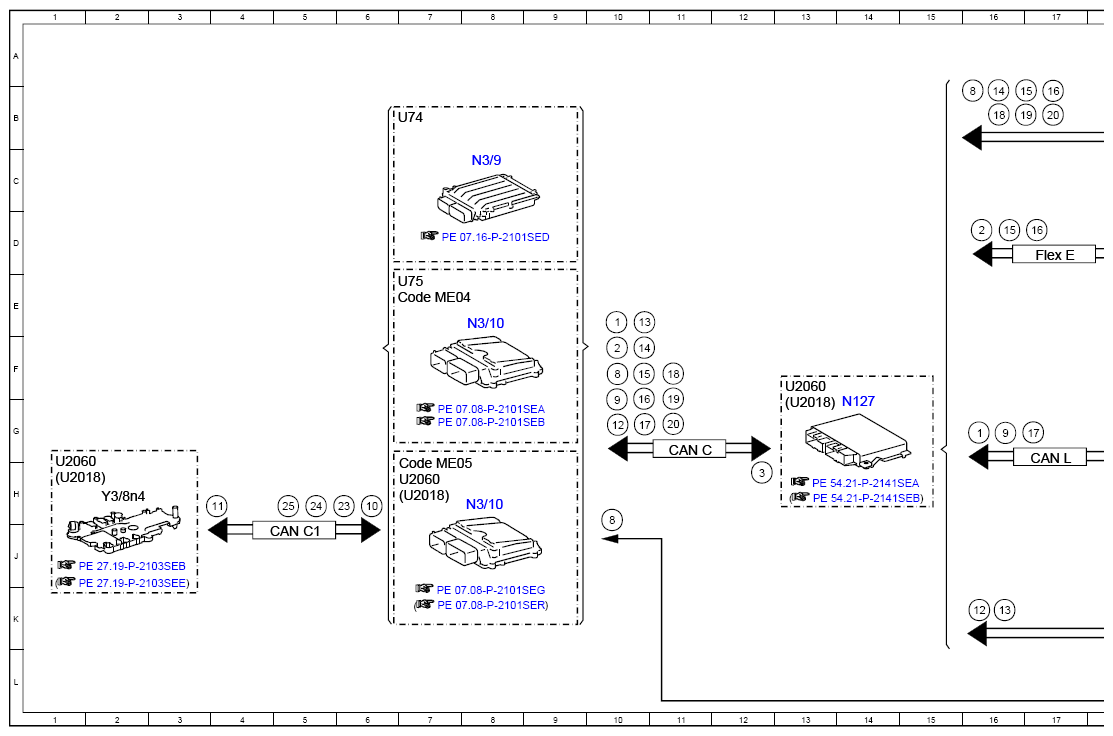

Electrical Function Schematic For Automatic Engine Stop - PE08.30-P-2053-97SEH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electric machine rpm, signal | 22G |
| 1 | Electric machine rpm, signal | 10E |
| 1 | Electric machine rpm, signal | 16G |
| 10 | Wet clutch, status | 6H |
| 11 | Wet clutch, request | 4H |
| 12 | High-voltage battery voltage, signal | 16K |
| 12 | High-voltage battery voltage, signal | 10G |
| 13 | High-voltage battery temperature, signal | 16K |
| 13 | High-voltage battery temperature, signal | 10E |
| 14 | Seat belt buckle restraint system switch, status | 10F |
| 14 | Seat belt buckle restraint system switch, status | 26E |
| 14 | Seat belt buckle restraint system switch, status | 16B |
| 15 | Engine stop prohibited, request | 10F |
| 15 | Engine stop prohibited, request | 16D |
| 15 | Engine stop prohibited, request | 26C |
| 15 | Engine stop prohibited, request | 16B |
| 16 | Engine start, request | 10G |
| 16 | Engine start, request | 17D |
| 16 | Engine start, request | 27C |
| 16 | Engine start, request | 17B |
| 17 | Electric machine motor torque, signal | 10G |
| 17 | Electric machine motor torque, signal | 17G |
| 18 | Engine hood anti-theft alarm system switch, status | 11F |
| 18 | Engine hood anti-theft alarm system switch, status | 26C |
| 18 | Engine hood anti-theft alarm system switch, status | 16B |
| 19 | Air conditioning, status | 11G |
| 19 | Air conditioning, status | 26B |
| 19 | Air conditioning, status | 16B |
| 2 | Wheel speed, signal | 16D |
| 2 | Wheel speed, signal | 10F |
| 20 | Door rotary tumbler switch, status | 11G |
| 20 | Door rotary tumbler switch, status | 26D |
| 20 | Door rotary tumbler switch, status | 17B |
| 23 | Transmission oil temperature, signal | 6H |
| 24 | Electric auxiliary oil pump, status | 5H |
| 25 | Gear range, status | 5H |
| 3 | Discharge voltage and discharge current, request | 18H |
| 3 | Discharge voltage and discharge current, request | 12H |
| 4 | Discharge current, energy flow | 20J |
| 5 | Discharge current for motor operation, energy flow | 23G |
| 6 | Electric machine temperature, signal | 22H |
| 7 | Electrical machine rotor position, signal | 22G |
| 8 | Crash, signal | 10F |
| 8 | Crash, signal | 26E |
| 8 | Crash, signal | 16B |
| 8 | Crash, signal | 10H |
| 9 | Electric machine, status | 16G |
| 9 | Electric machine, status | 10G |
| A100 | High-voltage battery module | 27F |
| A100 | High-voltage battery module | 27J |
| A100g1 | High-voltage battery | 28F |
| A100g1 | High-voltage battery | 28K |
| A79/1 | Electric machine | 24G |
| A79/1b1 | Electric machine temperature sensor | 24J |
| CAN B | Interior CAN | 27C |
| CAN B | Interior CAN | 27D |
| CAN B | Interior CAN | 27B |
| CAN C | Engine CAN | 11G |
| CAN C1 | Drive train CAN | 5J |
| CAN HMI | User interface CAN | 27E |
| CAN L | Hybrid CAN | 17H |
| CAN L | Hybrid CAN | 19K |
| Code ME04 | Mild hybrid drive | 6E |
| Code ME04 | Mild hybrid drive | 26F |
| Code ME04 | Mild hybrid drive | 18F |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 26J |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 7H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 18F |
| Flex E | Chassis FlexRay | 17D |
| Flex E | Chassis FlexRay | 19B |
| L20 | Electric machine rotor position sensor | 24F |
| N10/6 | Front SAM control unit | 36B |
| N127 | Drivetrain control unit | 14G |
| N129/1 | Power electronics control unit | 20F |
| N2/10 | Supplemental restraint system control unit | 30D |
| N22/1 | Climate control, control unit | 39A |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N3/10 | ME-SFI [ME] control unit | 8H |
| N3/9 | CDI control unit | 8C |
| N30/4 | Electronic Stability Program control unit | 19D |
| N69/1 | Left front door control unit | 33C |
| N73 | Electronic ignition switch control unit | 24B |
| N82/2 | Battery management system control unit | 26H |
| N82/2 | Battery management system control unit | 26L |
| U2018 | Valid as of model year 2018 | 1H |
| U2018 | Valid as of model year 2018 | 13G |
| U2018 | Valid as of model year 2018 | 23B |
| U2018 | Valid as of model year 2018 | 18D |
| U2018 | Valid as of model year 2018 | 37A |
| U2018 | Valid as of model year 2018 | 34B |
| U2018 | Valid as of model year 2018 | 32C |
| U2018 | Valid as of model year 2018 | 29E |
| U2018 | Valid as of model year 2018 | 26J |
| U2018 | Valid as of model year 2018 | 7H |
| U2018 | Valid as of model year 2018 | 18F |
| U2060 | Valid up to model year 2018 | 1H |
| U2060 | Valid up to model year 2018 | 13F |
| U2060 | Valid up to model year 2018 | 23A |
| U2060 | Valid up to model year 2018 | 18C |
| U2060 | Valid up to model year 2018 | 37A |
| U2060 | Valid up to model year 2018 | 34B |
| U2060 | Valid up to model year 2018 | 32C |
| U2060 | Valid up to model year 2018 | 29D |
| U2060 | Valid up to model year 2018 | 26J |
| U2060 | Valid up to model year 2018 | 7H |
| U2060 | Valid up to model year 2018 | 18F |
| U74 | Valid for diesel engines | 6B |
| U75 | Valid for gasoline engines | 6E |
| Y3/8n4 | Fully integrated transmission control, control unit | 2H |
