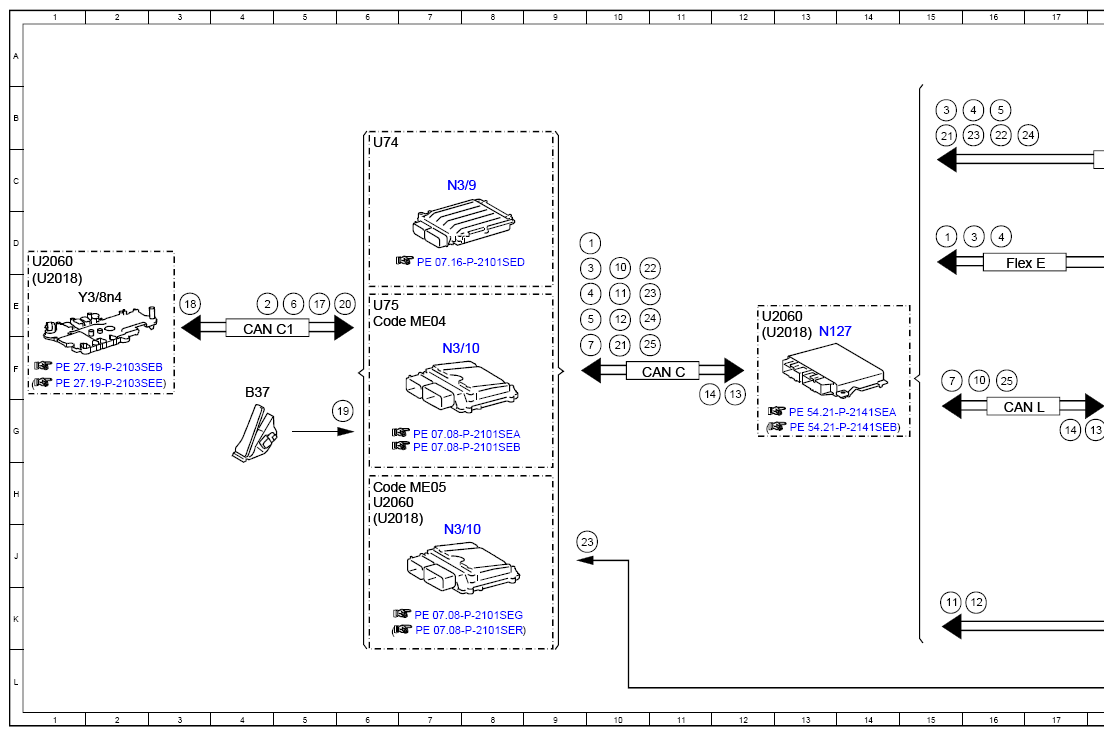

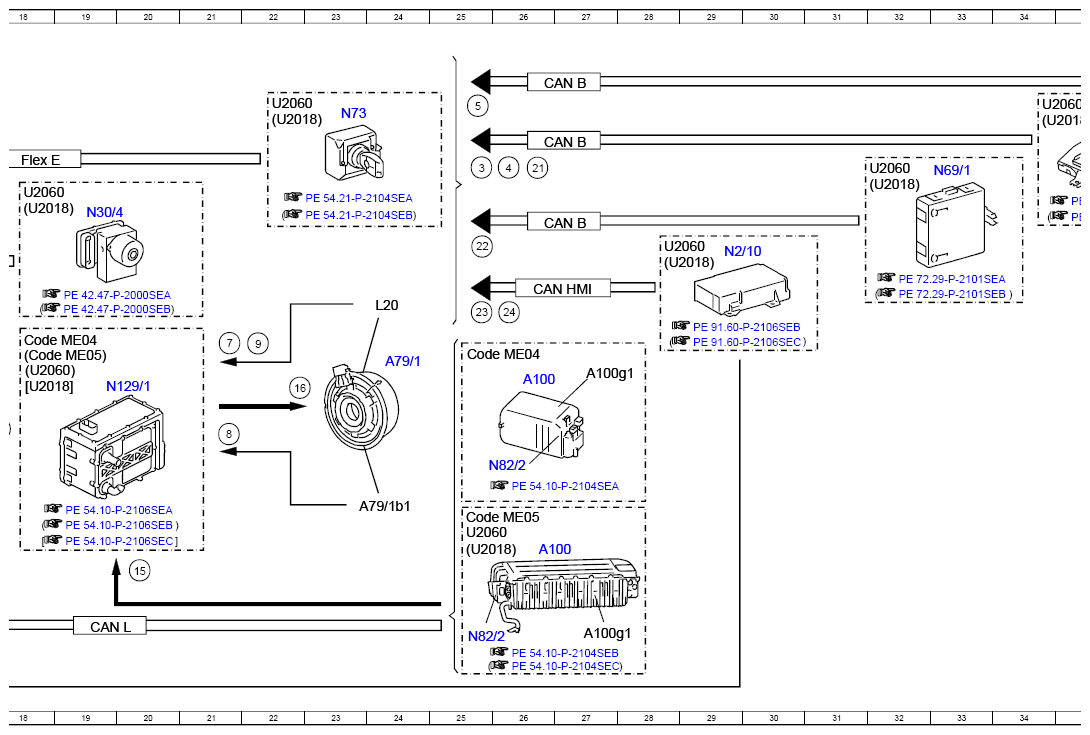

Electrical Function Schematic For Automatic Engine Start - PE08.30-P-2052-97SEH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 10D |
| 1 | Wheel speed, signal | 15D |
| 10 | Electric machine, status | 16F |
| 10 | Electric machine, status | 10D |
| 11 | High-voltage battery voltage, signal | 15K |
| 11 | High-voltage battery voltage, signal | 10E |
| 12 | High-voltage battery temperature, signal | 16K |
| 12 | High-voltage battery temperature, signal | 10E |
| 13 | Discharge voltage and discharge current, request | 18G |
| 13 | Discharge voltage and discharge current, request | 12F |
| 14 | Electric machine specified torque, request | 17G |
| 14 | Electric machine specified torque, request | 11F |
| 15 | Discharge current, energy flow | 20J |
| 16 | Discharge current for motor operation, energy flow | 22F |
| 17 | Wet clutch, status | 5E |
| 18 | Wet clutch, request | 3E |
| 19 | Accelerator pedal sensor, signal | 6G |
| 2 | Gear range, status | 4E |
| 20 | Electric auxiliary oil pump, status | 6E |
| 21 | Engine hood contact switch, status | 10F |
| 21 | Engine hood contact switch, status | 15B |
| 21 | Engine hood contact switch, status | 26C |
| 22 | Door rotary tumbler switch, status | 10D |
| 22 | Door rotary tumbler switch, status | 16B |
| 22 | Door rotary tumbler switch, status | 25D |
| 23 | Crash, signal | 10E |
| 23 | Crash, signal | 16B |
| 23 | Crash, signal | 25E |
| 23 | Crash, signal | 9J |
| 24 | Seat belt buckle restraint system switch, status | 10E |
| 24 | Seat belt buckle restraint system switch, status | 26E |
| 24 | Seat belt buckle restraint system switch, status | 17B |
| 25 | Electric machine motor torque, signal | 10F |
| 25 | Electric machine motor torque, signal | 16F |
| 3 | Engine stop prohibited, request | 10D |
| 3 | Engine stop prohibited, request | 15B |
| 3 | Engine stop prohibited, request | 16D |
| 3 | Engine stop prohibited, request | 25C |
| 4 | Engine start, request | 10E |
| 4 | Engine start, request | 16B |
| 4 | Engine start, request | 16D |
| 4 | Engine start, request | 26C |
| 5 | Air conditioning, status | 10E |
| 5 | Air conditioning, status | 16B |
| 5 | Air conditioning, status | 25B |
| 6 | Transmission oil temperature, signal | 5E |
| 7 | Electric machine rpm, signal | 21F |
| 7 | Electric machine rpm, signal | 10F |
| 7 | Electric machine rpm, signal | 15F |
| 8 | Electric machine temperature, signal | 21G |
| 9 | Electrical machine rotor position, signal | 22F |
| A100 | High-voltage battery module | 26F |
| A100 | High-voltage battery module | 26J |
| A100g1 | High-voltage battery | 27F |
| A100g1 | High-voltage battery | 27K |
| A79/1 | Electric machine | 24F |
| A79/1b1 | Electric machine temperature sensor | 24H |
| B37 | Accelerator pedal sensor | 4F |
| CAN B | Interior CAN | 27B |
| CAN B | Interior CAN | 27B |
| CAN B | Interior CAN | 27D |
| CAN C | Engine CAN | 11F |
| CAN C1 | Drive train CAN | 4E |
| CAN HMI | User interface CAN | 26E |
| CAN L | Hybrid CAN | 16G |
| CAN L | Hybrid CAN | 19K |
| Code ME04 | Mild hybrid drive | 6E |
| Code ME04 | Mild hybrid drive | 25F |
| Code ME04 | Mild hybrid drive | 18F |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 25H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 6H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 18F |
| Flex E | Chassis FlexRay | 16D |
| Flex E | Chassis FlexRay | 18C |
| L20 | Electric machine rotor position sensor | 24E |
| N10/6 | Front SAM control unit | 35B |
| N127 | Drivetrain control unit | 13E |
| N129/1 | Power electronics control unit | 20F |
| N2/10 | Supplemental restraint system control unit | 29D |
| N22/1 | Climate control, control unit | 38A |
| N3/10 | ME-SFI [ME] control unit | 7F |
| N3/10 | ME-SFI [ME] control unit | 7J |
| N3/9 | CDI control unit | 7C |
| N30/4 | Electronic Stability Program control unit | 19D |
| N69/1 | Left front door control unit | 33C |
| N73 | Electronic ignition switch control unit | 23B |
| N82/2 | Battery management system control unit | 26H |
| N82/2 | Battery management system control unit | 25K |
| U2018 | Valid as of model year 2018 | 1E |
| U2018 | Valid as of model year 2018 | 12E |
| U2018 | Valid as of model year 2018 | 18D |
| U2018 | Valid as of model year 2018 | 22B |
| U2018 | Valid as of model year 2018 | 37A |
| U2018 | Valid as of model year 2018 | 34B |
| U2018 | Valid as of model year 2018 | 32C |
| U2018 | Valid as of model year 2018 | 28D |
| U2018 | Valid as of model year 2018 | 25J |
| U2018 | Valid as of model year 2018 | 6H |
| U2018 | Valid as of model year 2018 | 18F |
| U2060 | Valid up to model year 2018 | 1D |
| U2060 | Valid up to model year 2018 | 12E |
| U2060 | Valid up to model year 2018 | 18C |
| U2060 | Valid up to model year 2018 | 22B |
| U2060 | Valid up to model year 2018 | 37A |
| U2060 | Valid up to model year 2018 | 34B |
| U2060 | Valid up to model year 2018 | 32C |
| U2060 | Valid up to model year 2018 | 28D |
| U2060 | Valid up to model year 2018 | 25J |
| U2060 | Valid up to model year 2018 | 6H |
| U2060 | Valid up to model year 2018 | 18F |
| U74 | Valid for diesel engines | 6B |
| U75 | Valid for gasoline engines | 6E |
| Y3/8n4 | Fully integrated transmission control, control unit | 2E |
