Overview Of System Components, Hybrid Drive System - GF08.30-P-9999LFH
Engine 276 in model 222.057/157
Engine 276 in model 222.163
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104

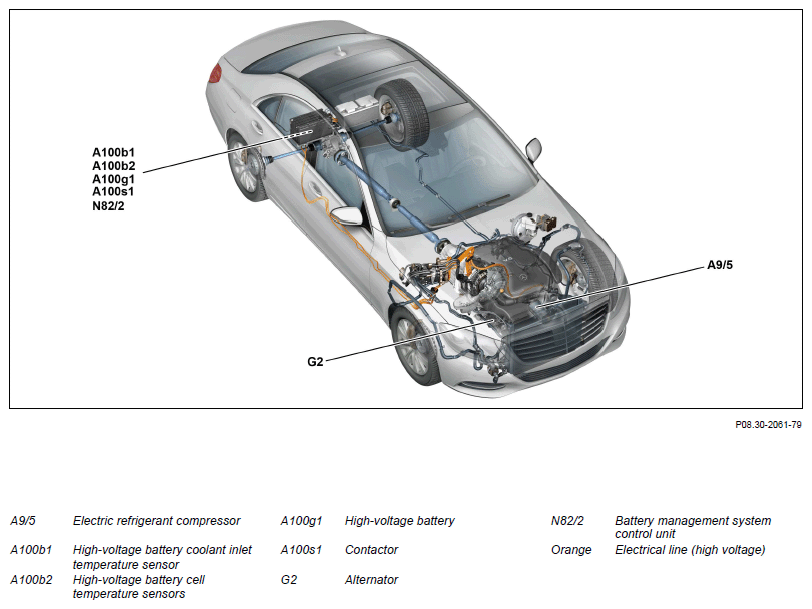

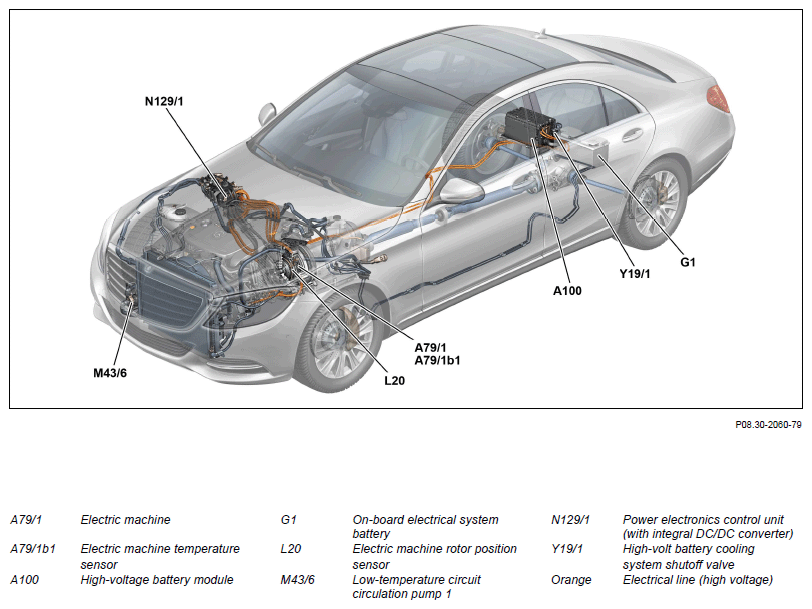

Shown on model 222.0/1 up to model year 2018

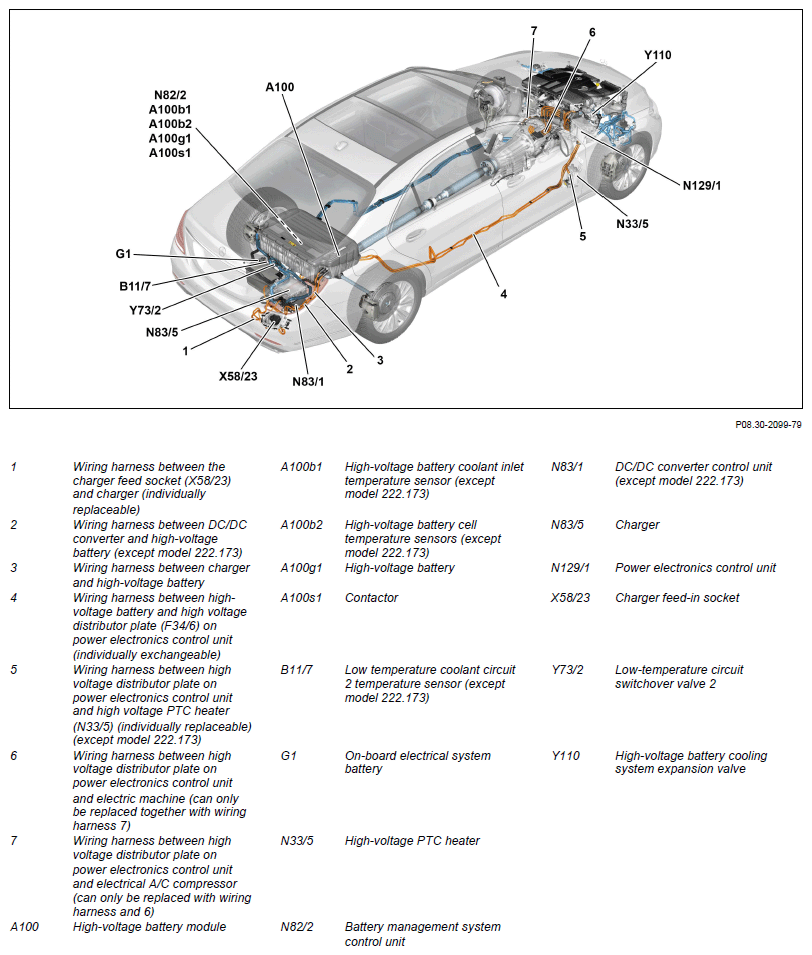

Shown on model 222.057 (except model 222.163, 222.173)
Engine 276 in model 222.057/157
Engine 276 in model 222.173
Engine 651.9 in model 222.004/104 DC/DC converter
A DC/DC converter is integrated in the power electronics control unit, which converts the high voltage direct voltage (primary voltage) into 12 V direct voltage (secondary voltage) and vice versa and transfers these between the high voltage on-board electrical system and the 12 V on-board electrical system.
Engine 276 in model 222.163
DC/DC converter control unit
The DC/DC converter control unit is installed in the vehicle as a separate component. The DC/DC converter control converts high-voltage direct voltage (primary voltage) into 12-V direct voltage (secondary voltage) and transfers these between the high voltage onboard electrical system and the 12-V on-board electrical system..
Shown on model 222.057 (except model 222. 163, 222.173)
Engine 276 in model 222.057/157
In order to ensure secure a reliable supply of power to the 12 V onboard electrical system, an alternator is required in addition to the electric machine due to the machine's low output compared to plug-in hybrids.
Shown on model 222.163
Electrical fuses in high-voltage battery
Replaceable fuses are found in the high-voltage battery (electrical fuse 750, electrical fuse 751, and electrical fuse 752). These are placed under a removable cover (with interlock contact breaker point), and located in the electric circuit behind the contactor.
In this way the electrical fuses for orderly power disconnect are not under voltage.

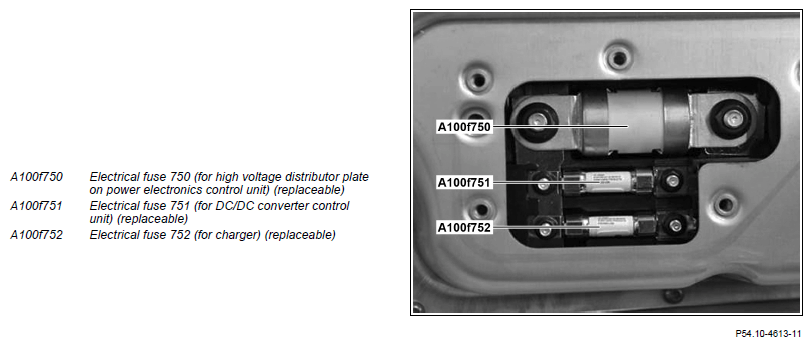

Shown on high-voltage battery module with open fuse panel (model 222.163)

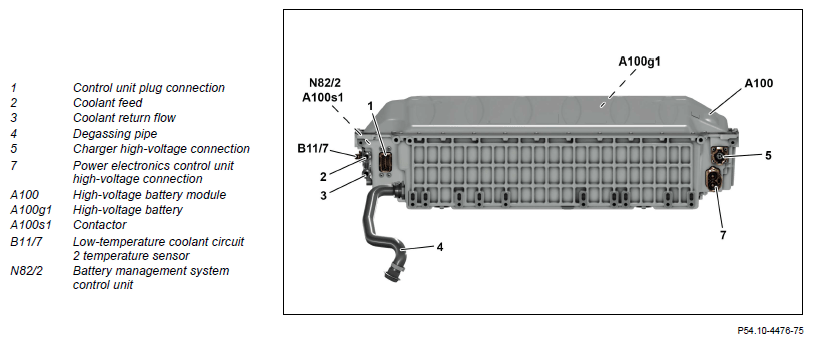

Shown on high-voltage battery module (model 222.173)

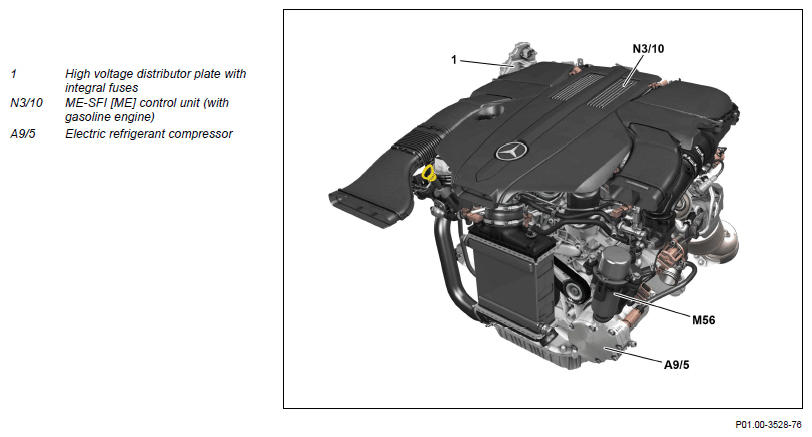

View of engine 276.8 (model 222.163)

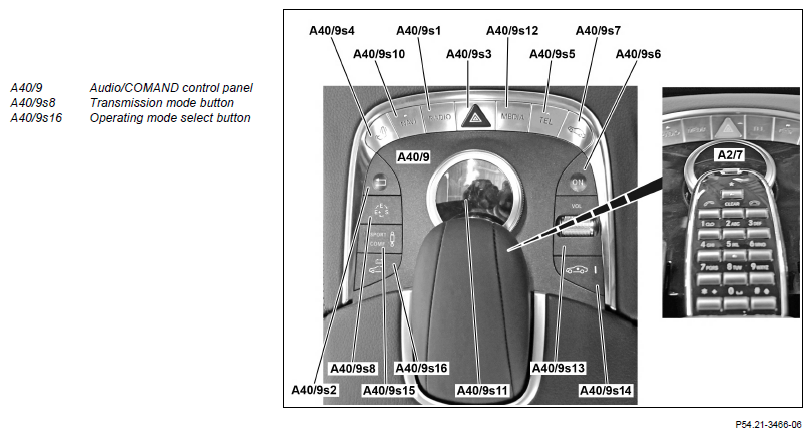

Audio/COMAND control panel (model 222.163)

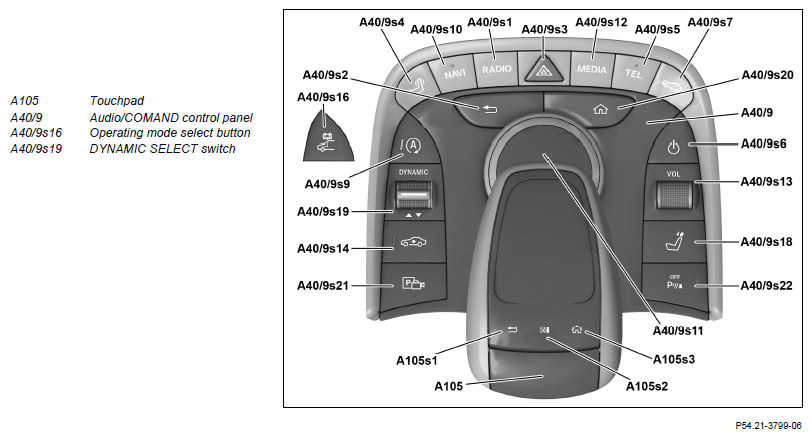

View of Audio/COMAND control panel model 222.173 (except code 446 (Touchpad only))
Low-temperature circuit 1
The low-temperature circuit temperature sensor and the low-temperature circuit switchover valve primarily serve the function charge air cooling.

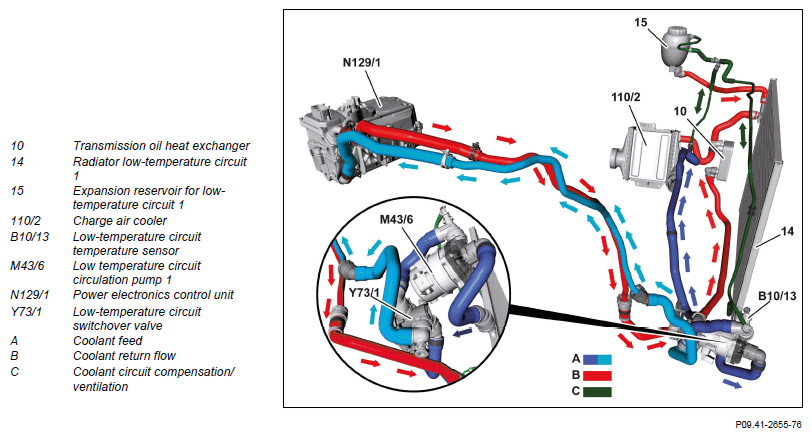

View of low-temperature circuit 1 (engine 276.8 and engine 651.9)

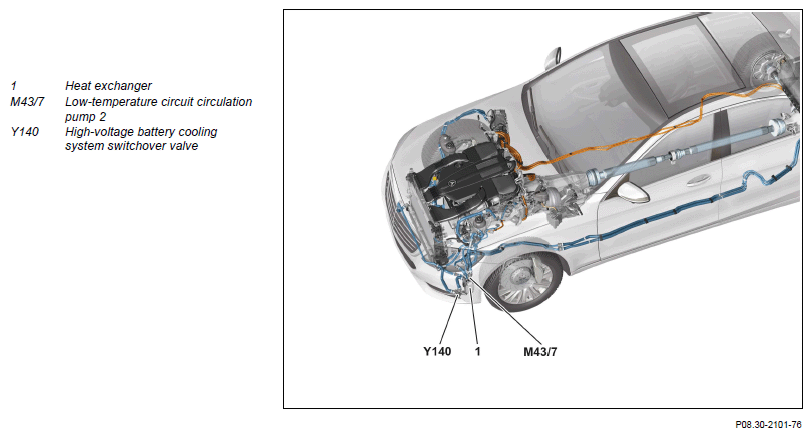

Shown on model 222.163 (low-temperature circuit 2)
Engine 276 in model 222.163
For model 222.163 a more powerful and therefore a longer electrical machine is installed. This has an output of 80 kW and is 33 mm longer. This results in a longer transmission bell housing. There are no additional installation changes on the transmission.

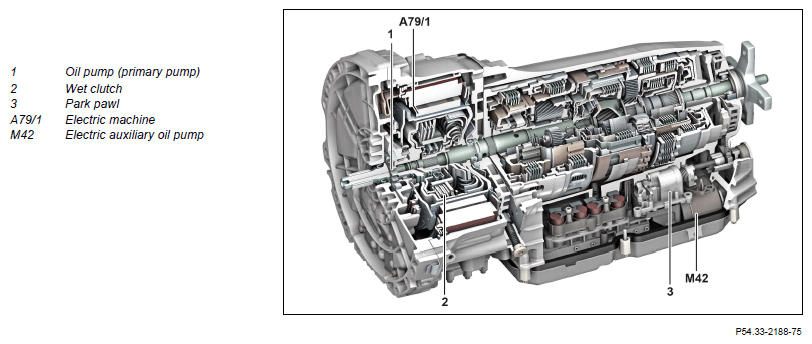

Sectional view, transmission 724.2
Engine 276 in model 222.173 with transmission 725.017 In model 222.173 with transmission 725.017, a more powerful electric machine is installed compared with transmission 724.2. This has an output of 90 kW. In addition, the 725.017 is equipped with an engine separator clutch instead of the wet clutch (NAK).

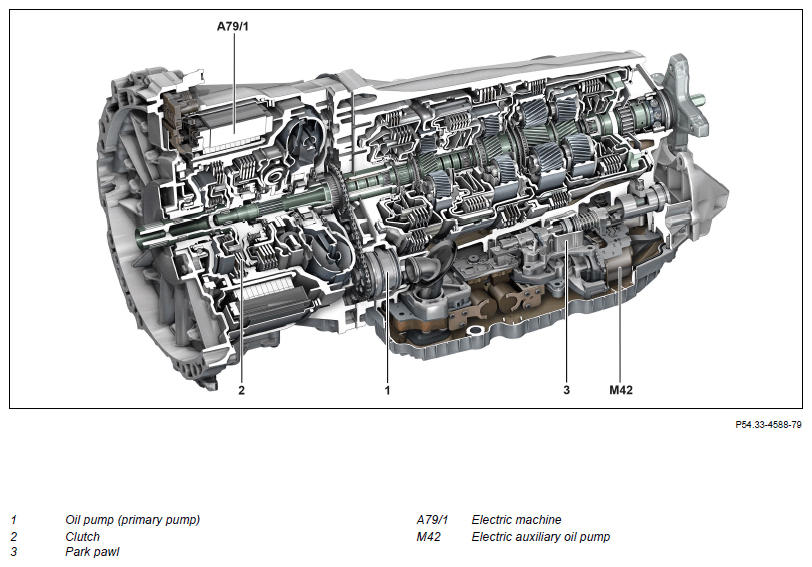

Sectional view, transmission 725.017

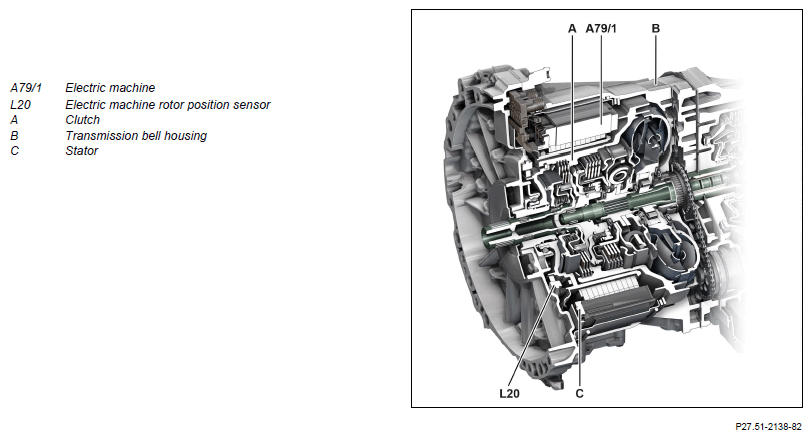

Sectional view of transmission bell housing of transmission 725.017 in model 222.173

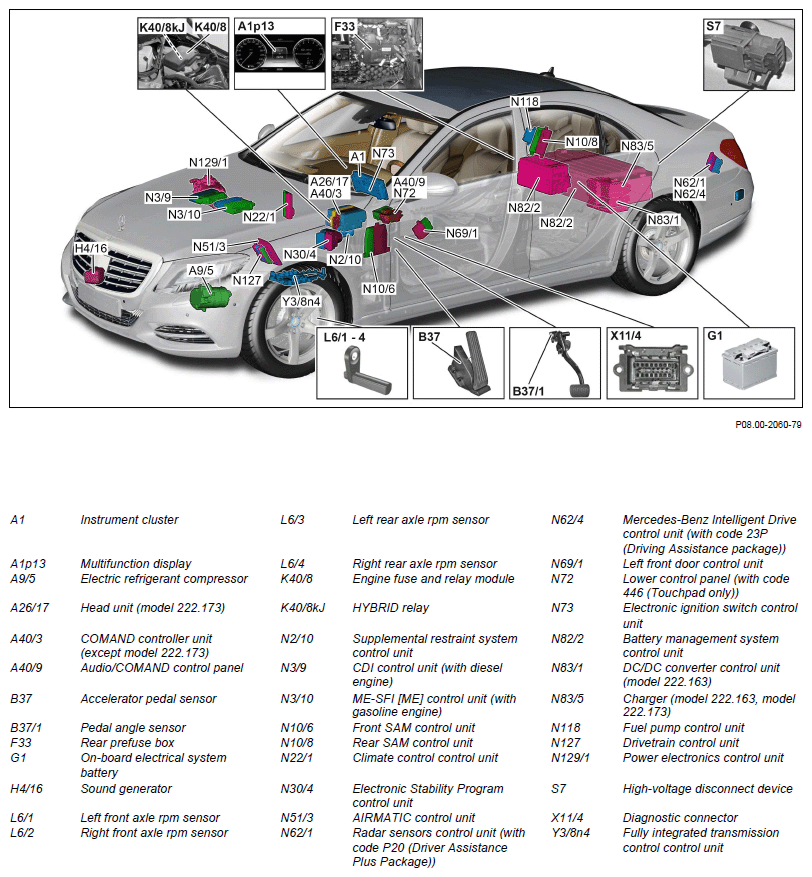

| Component description for instrument cluster | Engine 276 in model 222.057/157 up to model year 2018 276 in model 222.163 up to model year 2018 Engine 651.9 in model 222.004/104 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Engine 276 in model 222.173 as of model year 2018 A1 | GF54.30-P-6000LFM | ||
| Component description for electric refrigerant compressor | A9/5 | GF83.55-P-2110LFH | |
| Head unit, component description | Model 222.004/104 with engine 651.9 as of model year 2018 222.057/157 with engine 276 as of model year 2018 222.163 with engine 276 as of model year 2018 Model 222.173 with engine 276 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Engine 276 in model 222.057/157 up to model year 2018 276 in model 222.163 up to model year 2018 Engine 651.9 in model 222.004/104 up to model year 2018 A40/3 |
GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | Engine 276 in model 222.057/157 up to model year 2018 276 in model 222.163 up to model year 2018 Engine 651.9 in model 222.004/104 up to model year 2018 A40/9 |
GF54.21-P-4501LF | |
| Engine 276 in model 222.173 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | ||
| Touchpad, component description | Engine 276 in model 222.057/157 with code 448 (Touchpad) 276 in model 222.163 with code 448 (Touchpad) 276 in model 222.173 with code 448 (Touchpad) Engine 651.9 in model 222.004/104 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Engine 651.9 in model 222.004/104 N3/9 | GF07.16-P-6000OLA | |
| Component description for ME-SFI (ME) control unit | Engine 276.9 in model 222.057/157 N3/10 | GF07.61-P-6000MMK | |
| Engine 276.8 in model 222.163 N3/10 | GF07.61-P-6000MMT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Component description for Electronic Stability Program control unit | Engine 276 in model 222.057/157 up to model year 2018 276 in model 222.163 up to model year 2018 Engine 651.9 in model 222.004/104 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | |
| Engine 276 in model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119LFA | ||
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110LF | |
| Component description for radar sensors control unit | Engine 276 in model 222.057/157 up to model year 2018 with code P20 (Driving Assistance package Plus) 276 in model 222.163 up to model year 2018 with code P20 (Driving Assistance package Plus) Engine 651.9 in model 222.004/104 up to model year 2018 with code P20 (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301LF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Engine 276 in model 222.173 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012LFH | |
| Component description for DC/DC converter control unit | Engine 276 in model 222.163 N83/1 | GF54.10-P-3006LFH | |
| High-voltage charger control unit, component description | Engine 276 in model 222.163 N83/5 | GF08.20-P-2000LFH | |
| Component description for fuel pump control unit | Engine 276.8 in model 222.163 Engine 276.9 in model 222.057/157 N118 |
GF47.40-P-2001MMK | |
| Engine 651.9 in model 222.004/104 N118 | GF47.40-P-2001OGS | ||
| Drivetrain control unit, component description | Engine 276.8 in model 222.163 Engine 276.9 in model 222.057/157 N127 |
GF54.21-P-2141MMK | |
| Engine 651.9 in model 222.004/104 N127 | GF54.21-P-2141OLA | ||
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001LFH | |
| Component description for fully integrated transmission control unit | Model 222.004/057/104/157/163 with transmission 724.2 up to model year 2018 Y38n4 | GF27.60-P-5165LFH | |
| Engine 276 in model 222.173 with transmission 725.017 Y38n4 | GF27.60-P-5165ANP | ||
| Table of contents for function description-hybrid drive system | GF08.30-P-0999LFH |
