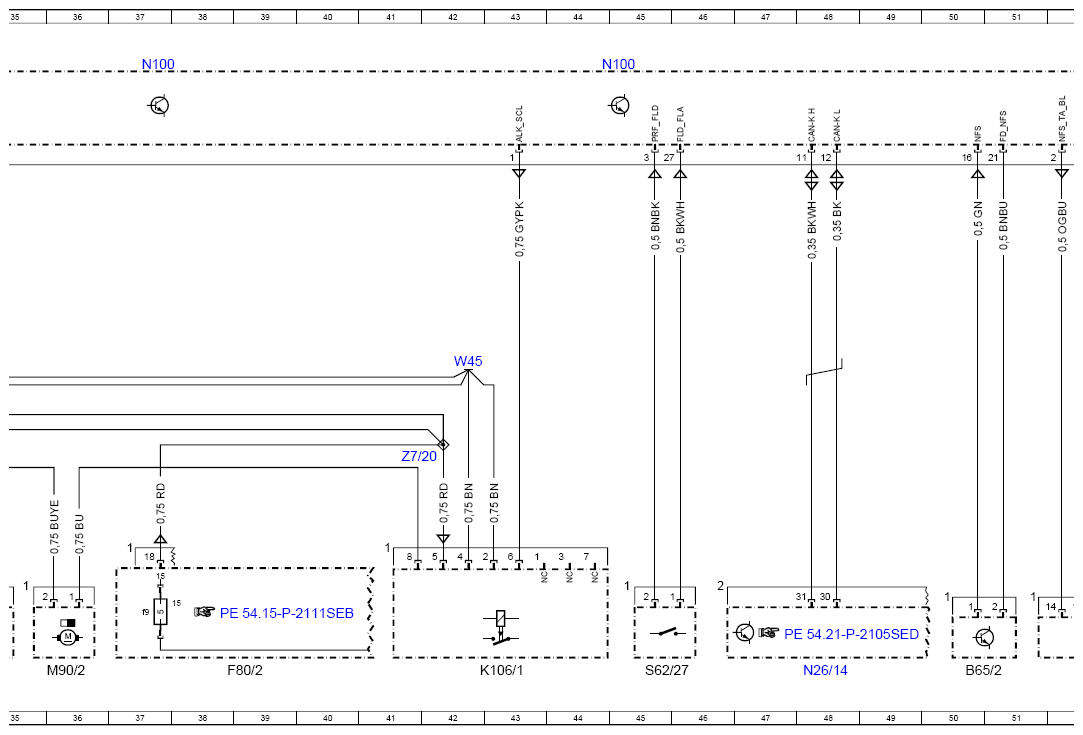

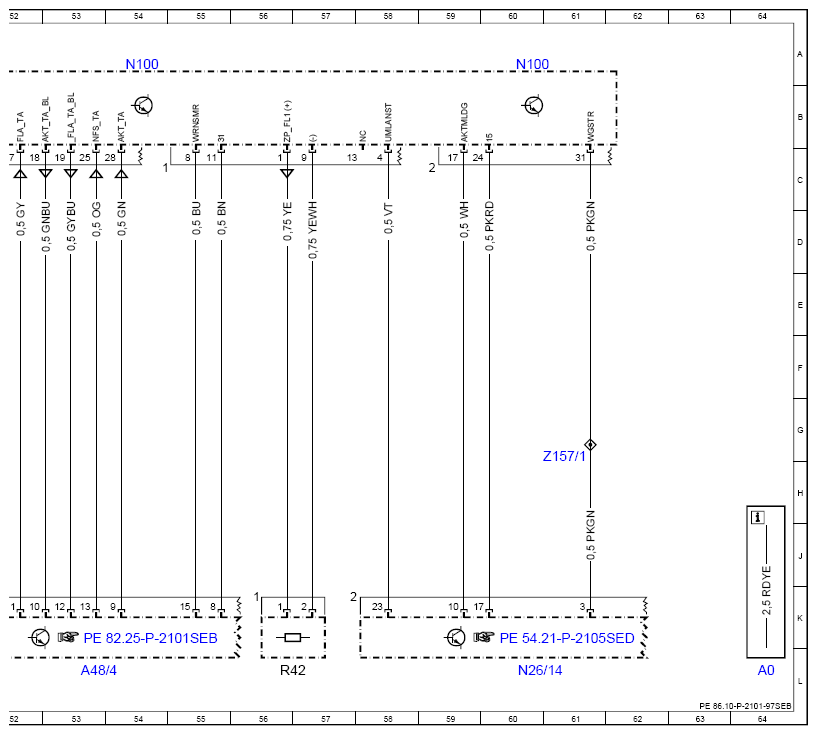

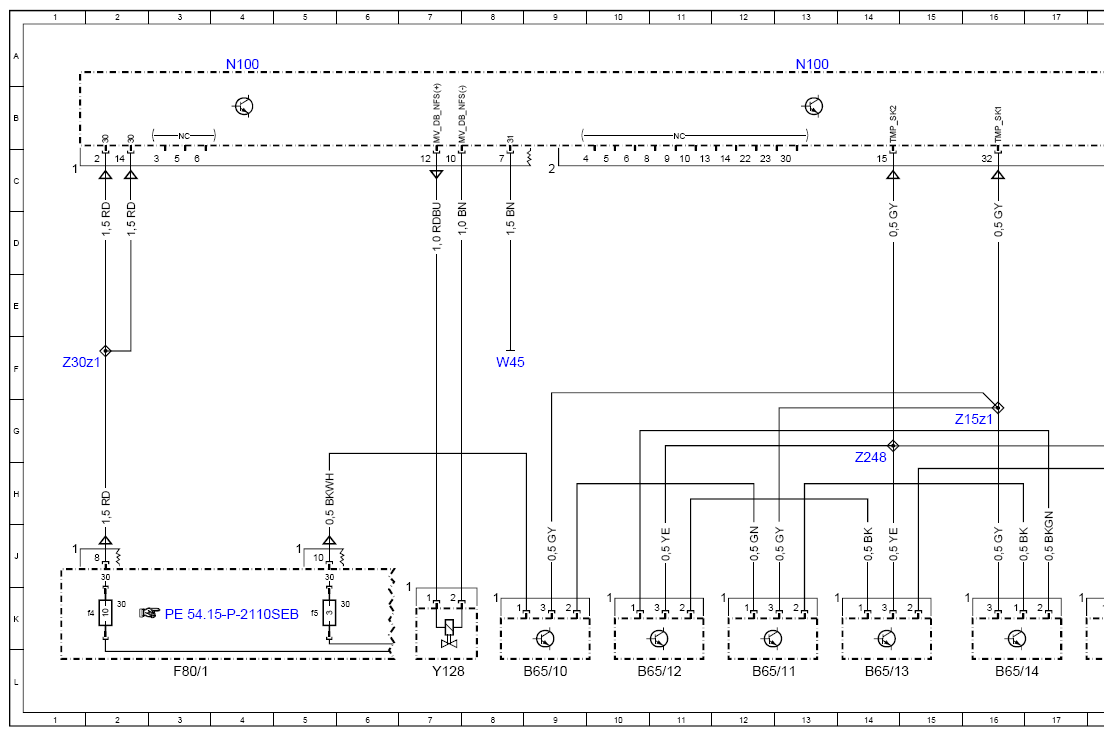

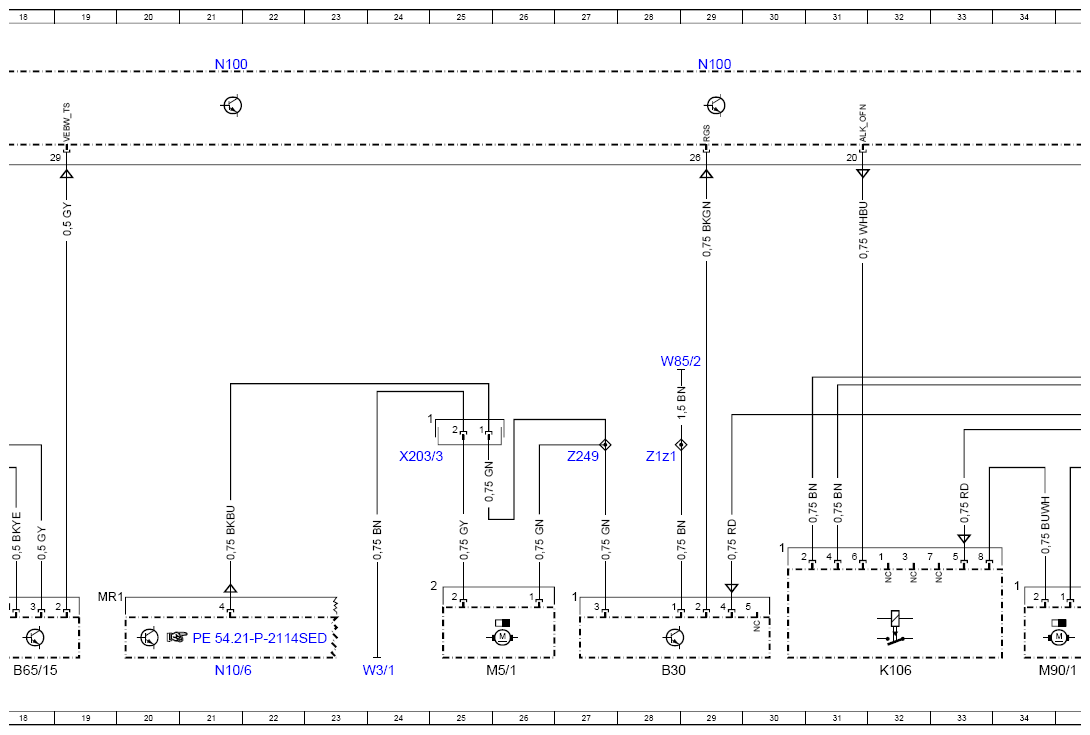

Wiring Diagram Of Fire Extinguishing System Control Unit - PE86.10-P-2101-97SEB
Model 222 as of model year 2018 with code Z07 (B7 armoring on special protection version) Control unit N100
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A48/4 | Guard operating unit | 53L |
| B30 | Irritant gas sensor | 28L |
| B65/10 | Upper right engine compartment fire extinguishing system temperature sensor | 9L |
| B65/11 | Upper left engine compartment fire extinguishing system temperature sensor | 12L |
| B65/12 | Lower left engine compartment fire extinguishing system temperature sensor 1 | 11L |
| B65/13 | Lower left engine compartment fire extinguishing system temperature sensor 2 | 14L |
| B65/14 | Left rear axle fire extinguishing system temperature sensor 1 | 16L |
| B65/15 | Left rear axle fire extinguishing system temperature sensor 2 | 18L |
| B65/2 | Compressed air reservoir pressure sensor | 50L |
| F80/1 | Special-purpose vehicle fuse block 1 | 3L |
| F80/1f4 | Fuse 4 | 2K |
| F80/1f5 | Fuse 5 | 5K |
| F80/2 | Special-purpose vehicle fuse block 2 | 39L |
| F80/2f9 | Fuse 9 | 37K |
| K106 | Vent flaps "Open" relay | 32L |
| K106/1 | Vent flaps "Close" relay | 43L |
| M5/1 | Windshield washer system pump | 26L |
| M90/1 | Left vent flap actuator motor | 34L |
| M90/2 | Right vent flap actuator motor | 36L |
| N10/6 | Front SAM control unit | 21L |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 4A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 13A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 21A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 29A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 37A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 45A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 54A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 60A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 48L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 60L |
| R42 | Extinguishing agent tank opening mechanism | 56L |
| S62/27 | Extinguishing agent tank pressure sensor | 45L |
| W3/1 | Ground point (right front wheel well) | 24L |
| W45 | Equipment carrier plate ground connection | 8F |
| W45 | Equipment carrier plate ground connection | 42F |
| W85/2 | Front passenger footwell frame floor assembly ground point | 28F |
| X203/3 | Windshield washer system pump electrical connector | 24H |
| Y128 | Emergency fresh-air system compressed air reservoir pin-pusher | 7L |
| Z157/1 | Travel distance connector sleeve | 61G |
| Z15z1 | Fire extinguishing system temperature sensor connector sleeve | 16G |
| Z1z1 | Connector sleeve 2 in wiring harness | 28G |
| Z248 | Circuit 2 temperature sensor connector sleeve | 14G |
| Z249 | Irritant gas sensor electric motor connector sleeve | 27G |
| Z30z1 | Tml. 30 connector sleeve | 1F |
| Z7/20 | Irritant gas sensor terminal 30 connector sleeve | 41G |
