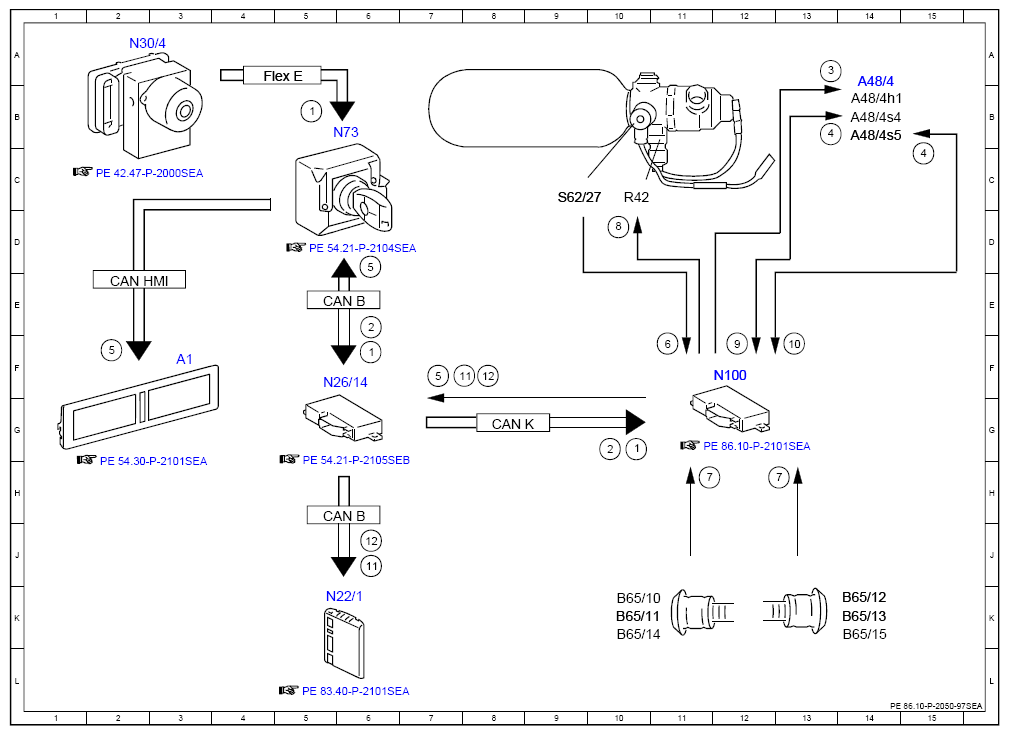

Electrical Function Schematic For Fire Extinguishing System - PE86.10-P-2050-97SEA
Model 222 with code Z21 (Fire extinguishing system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 6F |
| 1 | Wheel speed, signal | 10G |
| 1 | Wheel speed, signal | 5B |
| 10 | Fire extinguishing system button, status | 13F |
| 11 | Switch on recirculated air mode, request | 6J |
| 11 | Switch on recirculated air mode, request | 8F |
| 12 | Blower motor, request | 6J |
| 12 | Blower motor, request | 8F |
| 2 | Circuit 15, status | 6E |
| 2 | Circuit 15, status | 10G |
| 3 | Warning buzzer, actuation | 13A |
| 4 | Light-emitting diode actuation | 15B |
| 4 | Light-emitting diode actuation | 13B |
| 5 | Instrument cluster message, request | 7F |
| 5 | Instrument cluster message, request | 2F |
| 5 | Instrument cluster message, request | 6D |
| 6 | Pressure sensor, signal | 11F |
| 7 | Fire extinguishing system temperature sensor, signal | 11H |
| 7 | Fire extinguishing system temperature sensor, signal | 13H |
| 8 | Extinguishing agent tank opening mechanism, actuation | 10D |
| 9 | Emergency fresh air system/fire extinguishing system activation button, status | 12F |
| A1 | Instrument cluster | 3F |
| A48/4 | Guard operating unit | 14B |
| A48/4h1 | Warning buzzer | 14B |
| A48/4s4 | Emergency fresh air system/fire extinguishing system activation button | 14B |
| A48/4s5 | Fire extinguishing system button | 14B |
| B65/10 | 10K | |
| B65/11 | 10K | |
| B65/12 | 14K | |
| B65/13 | 14K | |
| B65/14 | 10K | |
| B65/15 | 14K | |
| CAN B | Interior CAN | 5H |
| CAN B | Interior CAN | 5E |
| CAN HMI | User interface CAN | 2E |
| CAN K | Multifunction CAN | 8G |
| Flex E | Chassis FlexRay | 4A |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 12F |
| N22/1 | Climate control, control unit | 5K |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 5F |
| N30/4 | Electronic Stability Program control unit | 2A |
| N73 | Electronic ignition switch control unit | 5B |
| R42 | Extinguishing agent tank opening mechanism | 10C |
| S62/27 | Extinguishing agent tank pressure sensor | 9C |
