Remove/Install Rear Fire Extinguishing System Temperature Sensor - AR86.10-P-0125LFS
Model 222.1
With Code Z21 (Fire extinguishing system)

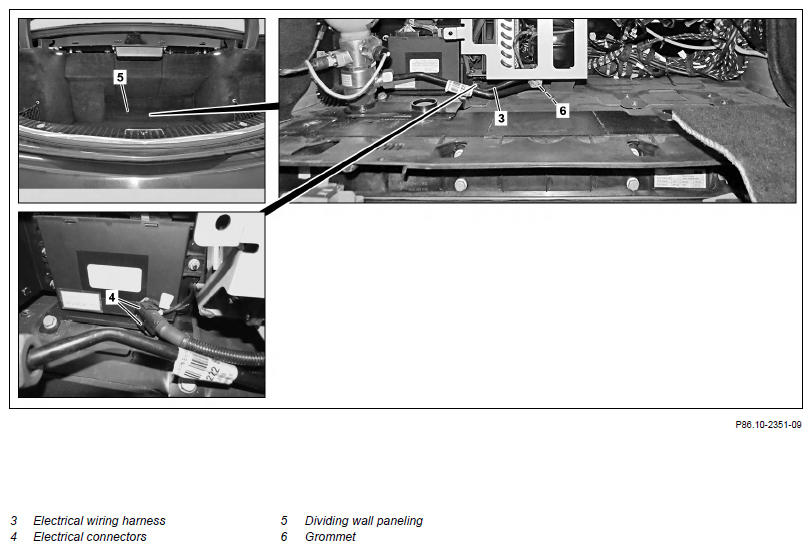

Fig 1: Rear Fire Extinguishing System Temperature Sensors Components Location - Model 222.1 With Code Z21
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove dividing wall paneling (5) | AR68.30-P-4600LF | |
| 3 | Expose electrical wiring harness (3) until electrical connectors (4) are accessible | ||
| 4 | Disconnect electrical connectors (4) | ||
| 5 | Press grommet (6) through body and pull electrical wiring harness (3) downward through opening | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 6 | Raise vehicle with vehicle lift | ||

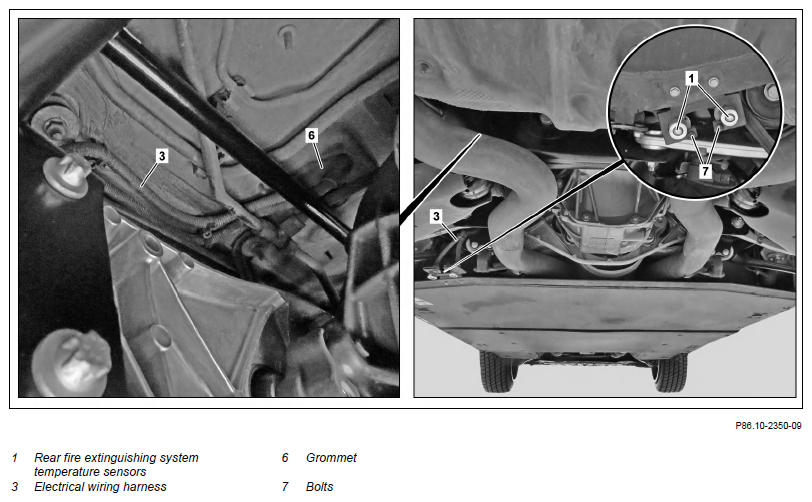

| 7 | Expose electrical wiring harness (3) up to rear fire extinguishing system temperature sensors (1) | ||
| 8 | Unscrew bolts (7) and guide rear fire extinguishing system temperature sensors (1) out of bracket | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Perform self-test for fire extinguishing system | AR86.10-P-0101-01LFS |
