Remove/Install Fire Extinguishing System And Emergency Fresh-Air System Control Unit - AR86.10-P-0154LFS
Model 222.1
with code Z07 (B7 armoring on special protection version)
with code Z21 (Fire extinguishing system)
with code Z25 (Emergency fresh-air system)

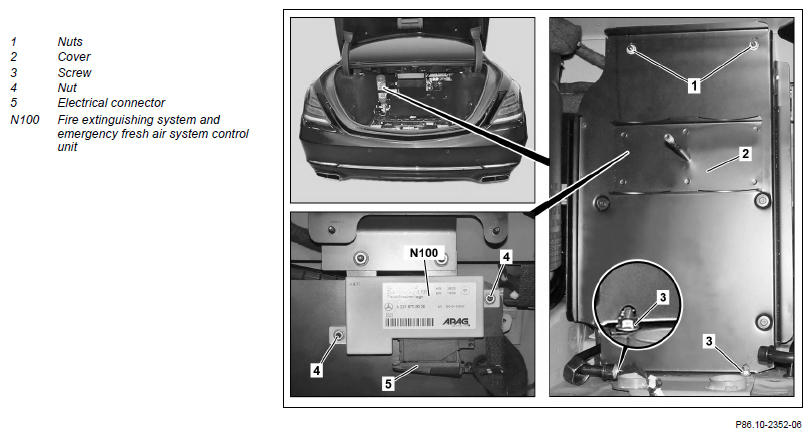

Fig 1: Fire Extinguishing System And Emergency Fresh-Air System Control Unit Components Location - Model 222.1 With Code Z07, Z21, Z25
| Topical note | Notes on preventing damage to emergency fresh air system of special protection vehicles. | AH86.10-P-0002-01A | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove fire extinguisher agent reservoir | AR86.10-P-0100LFS | |
| 3 | Unscrew nuts (1) | ||
| 4 | Unscrew bolts (3) and lay (2) down to side | ||
| 5 | Unscrew nut (4) from fire extinguishing system control unit and emergency fresh-air system (N100) | ||
| 6 | Disconnect electrical connector (5) from fire extinguishing system control unit and emergency fresh air system control unit (N100) | ||
| 7 | Remove fire extinguishing system control unit and emergency fresh air system control unit (N100) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Perform self-test for fire extinguishing system | AR86.10-P-0101-01LFS | |
| 10 | Check emergency fresh air system |
