Check Pedal Cover - AP86.20-P-8657C

Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 214, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 254, 257, 293

with code 45P (Disability conversion - Sales control code)

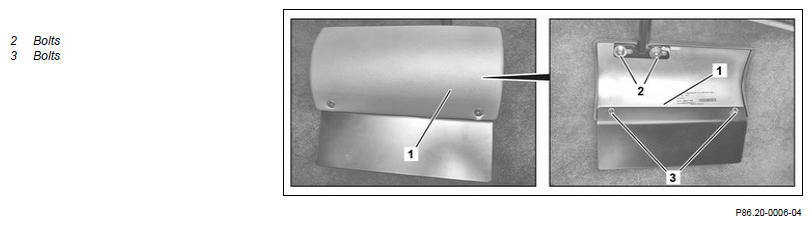

G15359848Courtesy of MERCEDES-BENZ USA
INSPECT Check
1 Check that the screws (2, 3) on the bracket are firmly seated. If the screws (2, 3) are not adequately fastened.

Tighten screws/bolts (2, 3).
