Check Extinguishing Agent Tank - AP86.10-P-8656A
Model 222
with code Z07 (B7 armoring on special protection version)
with code Z21 (Fire extinguishing system)

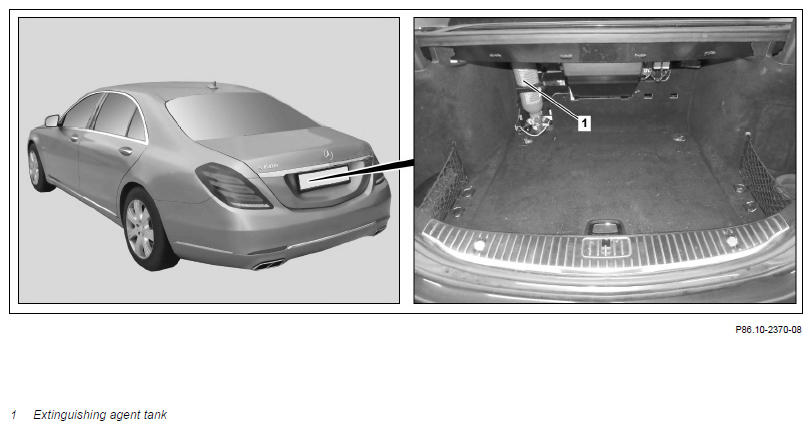

Shown on model 222.176 with code Z07 (Highest protection) with code Z21 (Fire extinguishing system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on aerosol extinguishing agent tank | AH86.10-P-0001-02A | ||
| Notes on disposing of aerosol extinguishing agent tank | AH86.10-P-0001-05A | ||
| Remove | |||
| 1 | Remove extinguishing agent tank (1) | Model 222 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system) | |
| Model 222.1 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system) | AR86.10-P-0100LFS | ||
| Check | |||
| 2 | Check gross weight of extinguishing agent tank (1) | If the gross weight deviates from the printed weight by more than 50 g ↓ Replace extinguishing agent tank (1) subject to separate repair order. |
|
| 3 | Check extinguishing agent tank (1) for external damage | If complaint present ↓ Replace extinguishing agent tank (1) subject to separate repair order. |
|
| Install | |||
| 4 | Install extinguishing agent tank (1) | Model 222 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system) | |
| Model 222.1 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system) | AR86.10-P-0100LFS |
