Notes On Acoustic Foam And Structural Foam In The Vehicle - Ah60.00-P-0039-01A

Model 217

Model 222

Foam items in area of sidewall (shown on left side of vehicle)

The structural foam pieces must be replaced if they cannot be left in the vehicle undamaged. 2-component structural foam adhesive is used as filling foam and to fit the carrier parts.

Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.

Courtesy of MERCEDES-BENZ USA

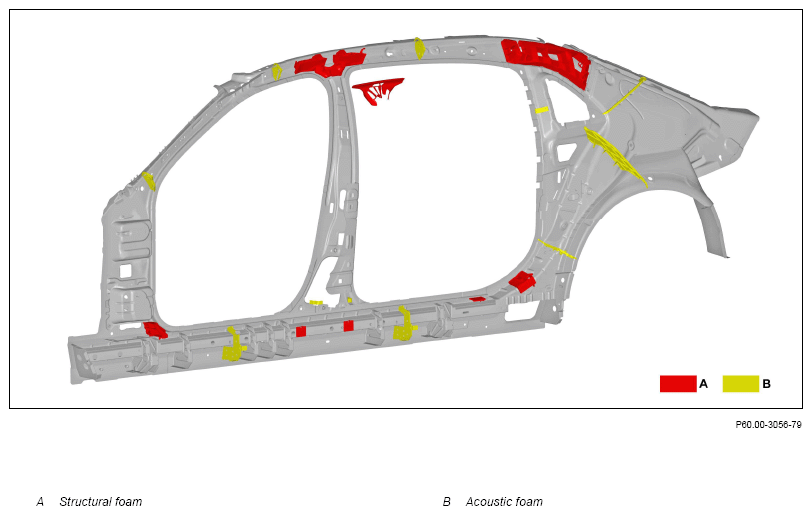

Model 222.0

Courtesy of MERCEDES-BENZ USA

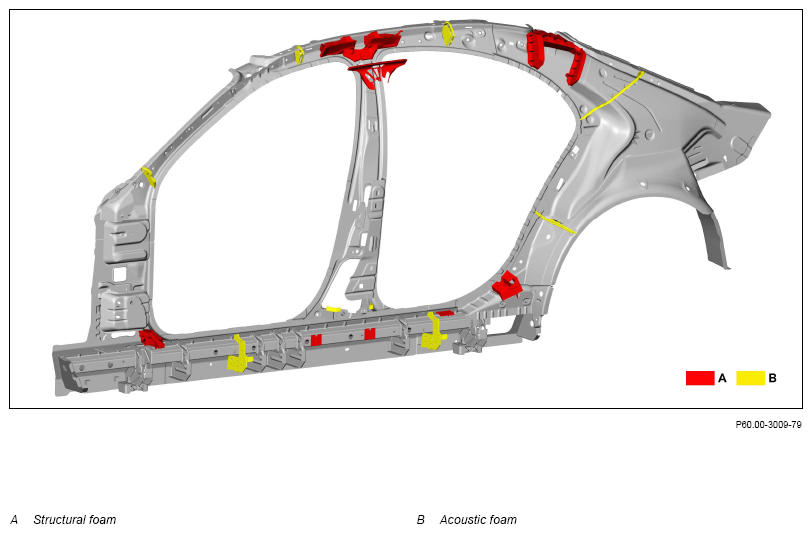

Model 222.9

Courtesy of MERCEDES-BENZ USA

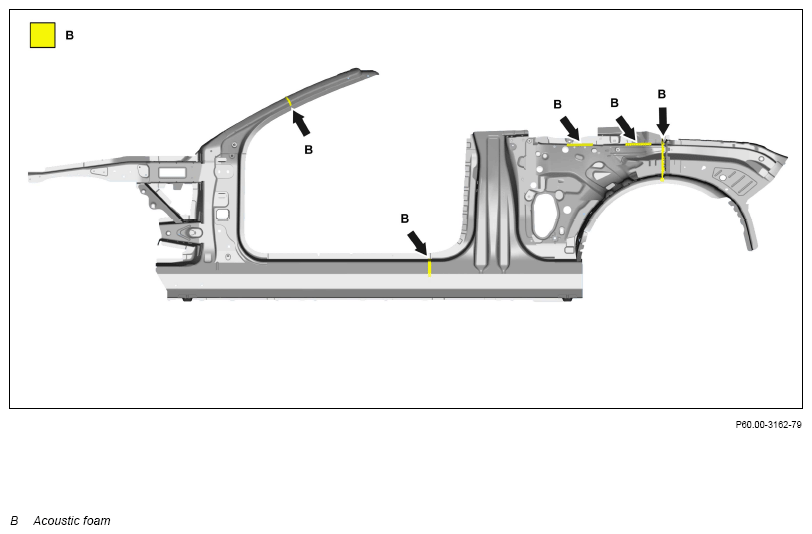

Model 217.4

Courtesy of MERCEDES-BENZ USA

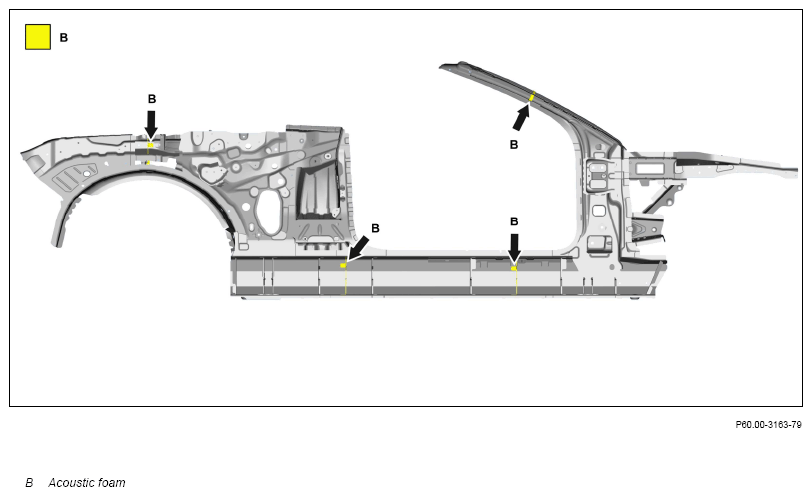

Model 217.4
