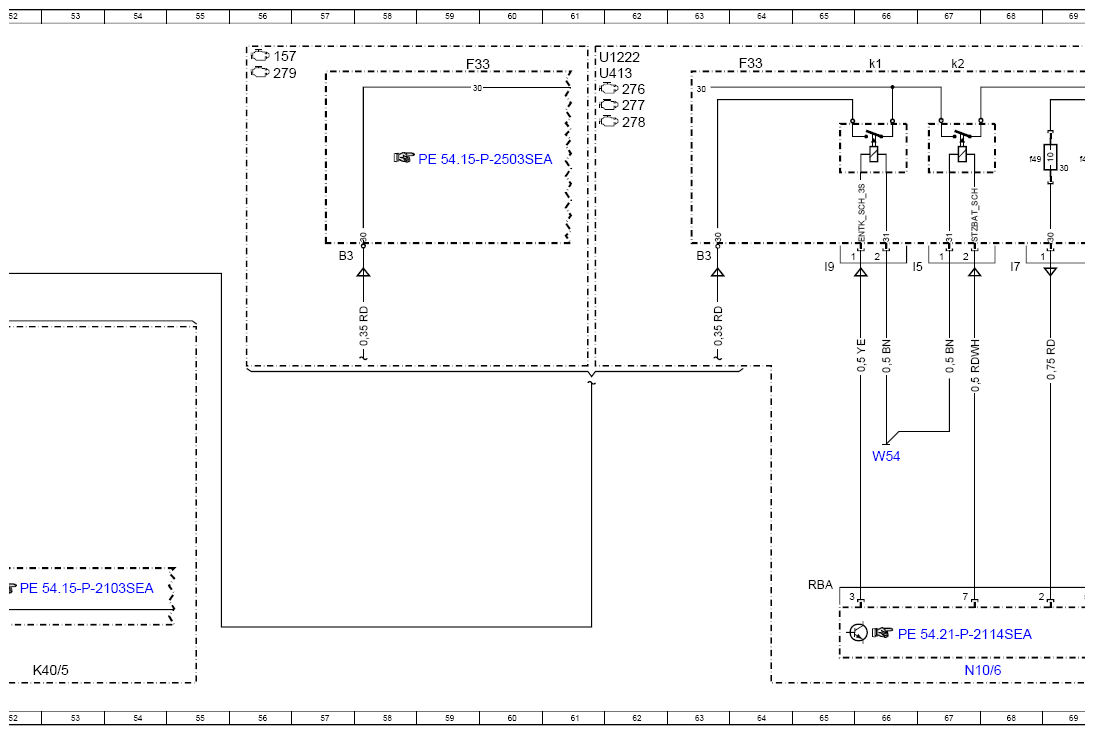

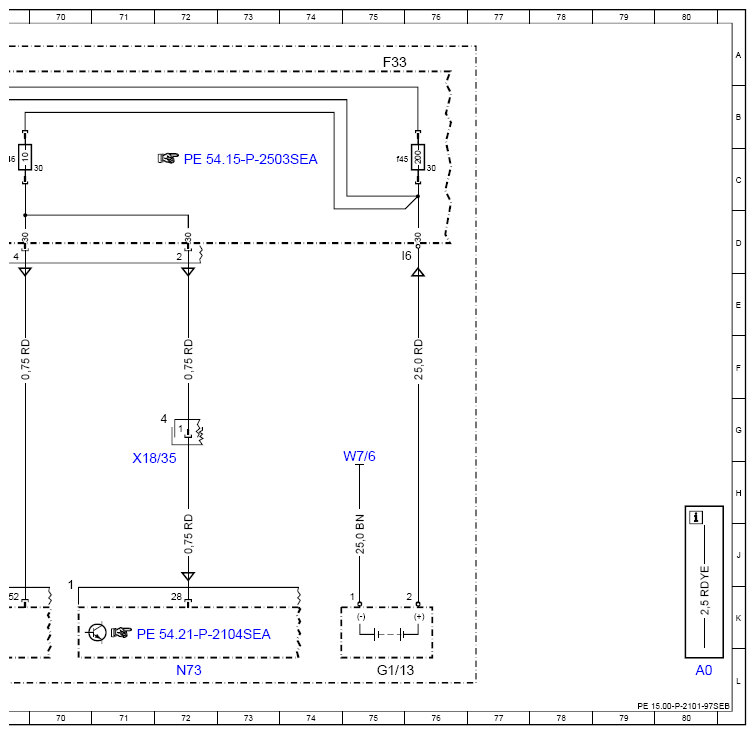

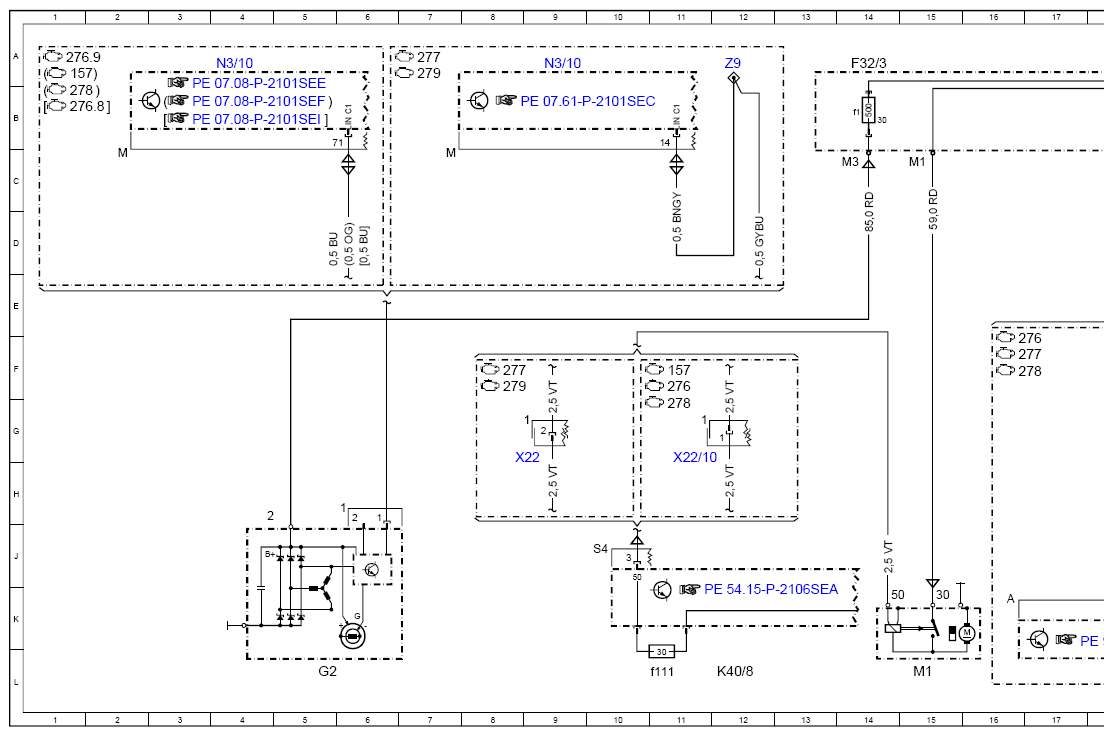

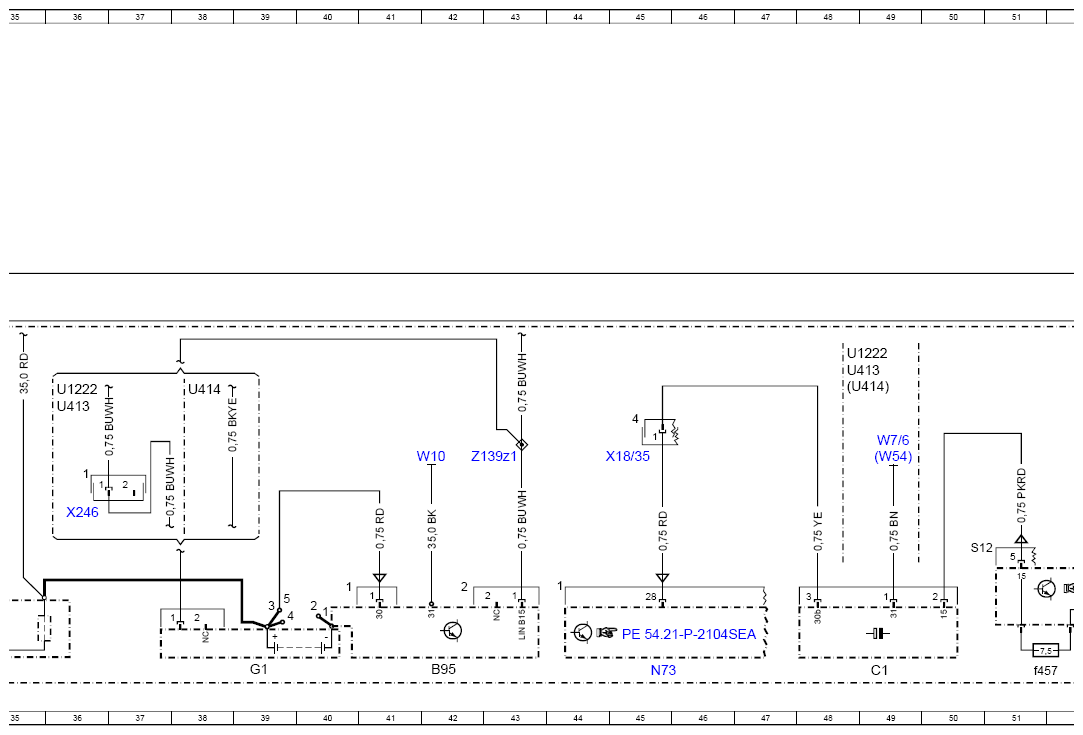

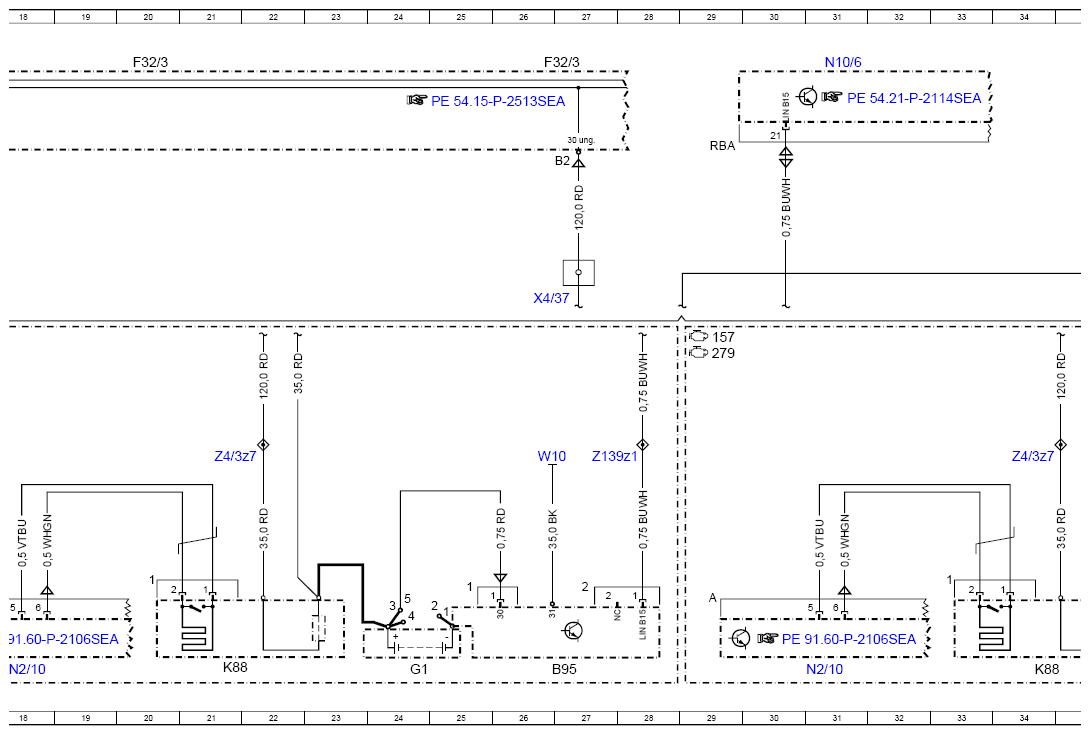

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97SEB
Engine 157, 276, 277, 278, 279 in model 222 up to model year 2018
Engine 157, 278, 279 in model 217 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| B95 | Battery sensor | 27L |
| B95 | Battery sensor | 42L |
| C1 | Starter battery capacitor | 49L |
| F32/3 | Engine compartment pre-fuse box | 14A |
| F32/3 | Engine compartment pre-fuse box | 20A |
| F32/3 | Engine compartment pre-fuse box | 27A |
| F32/3f1 | Fuse 1 | 14B |
| F33 | Rear pre-fuse box | 59A |
| F33 | Rear pre-fuse box | 64A |
| F33 | Rear pre-fuse box | 75A |
| F33f45 | Fuse 45 | 75C |
| F33f46 | Fuse 46 | 69C |
| F33f49 | Fuse 49 | 68C |
| F33k1 | Decoupling relay | 66A |
| F33k2 | ECO start/stop function additional battery relay | 67A |
| G1 | On-board electrical system battery | 24L |
| G1 | On-board electrical system battery | 39L |
| G1/13 | ECO start/stop function additional battery | 75L |
| G2 | Alternator | 5L |
| K40/5 | Rear fuse and relay module | 53L |
| K40/5f457 | Fuse 457 | 51L |
| K40/8 | Engine fuse and relay module | 12L |
| K40/8f111 | Fuse 111 | 11L |
| K88 | Pyrotechnical separator | 21L |
| K88 | Pyrotechnical separator | 34L |
| M1 | Starter | 15L |
| N10/6 | Front SAM control unit | 31A |
| N10/6 | Front SAM control unit | 67L |
| N2/10 | Supplemental restraint system control unit | 18L |
| N2/10 | Supplemental restraint system control unit | 31L |
| N3/10 | ME-SFI [ME] control unit | 9A |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N73 | Electronic ignition switch control unit | 45L |
| N73 | Electronic ignition switch control unit | 72L |
| U1222 | Valid for model series 222 | 36F |
| U1222 | Valid for model series 222 | 48F |
| U1222 | Valid for model series 222 | 61A |
| U413 | Valid for model 217.3 | 36G |
| U413 | Valid for model 217.3 | 48F |
| U413 | Valid for model 217.3 | 61A |
| U414 | Valid for model 217.4 | 38F |
| U414 | Valid for model 217.4 | 48F |
| W10 | Battery ground point | 26G |
| W10 | Battery ground point | 42G |
| W54 | Right rear wheel well ground point | 66G |
| W54 | Right rear wheel well ground point | 49H |
| W7/6 | Rear additional battery ground point | 49G |
| W7/6 | Rear additional battery ground point | 75G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 45H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 72H |
| X22 | Starter/air pump electrical connector | 9H |
| X22/10 | Transmission/ Engine compartment connecting point | 11H |
| X246 | LIN connection electrical connector (starter battery) | 36H |
| X4/37 | Left terminal 30 terminal block (without backup) | 26E |
| Z139z1 | Battery sensor connector sleeve | 27G |
| Z139z1 | Battery sensor connector sleeve | 43G |
| Z4/3z7 | Tml. 30 connector sleeve | 21G |
| Z4/3z7 | Tml. 30 connector sleeve | 34G |
| Z9 | Connector sleeve 1 | 12A |
