Tighten Connecting Rod Bolts - AR03.10-P-6111-02MNA
Engine 176, 177, 178
CONNECTING ROD
| Number | Designation | Engine 176 | Engine 177 | ||
|---|---|---|---|---|---|
| BA03.10-P-1001-01W | Bolt, connecting rod bearing cap to connecting rod | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 30 | 30 | ||
| Stage 3 | ∠° | 90 | 90 | ||
CONNECTING ROD
| Number | Designation | Engine 178 | ||
|---|---|---|---|---|
| BA03.10-P-1001-01W | Bolt, connecting rod bearing cap to connecting rod | Stage 1 | Nm | 5 |
| Stage 2 | Nm | 30 | ||
| Stage 3 | ∠° | 90 | ||

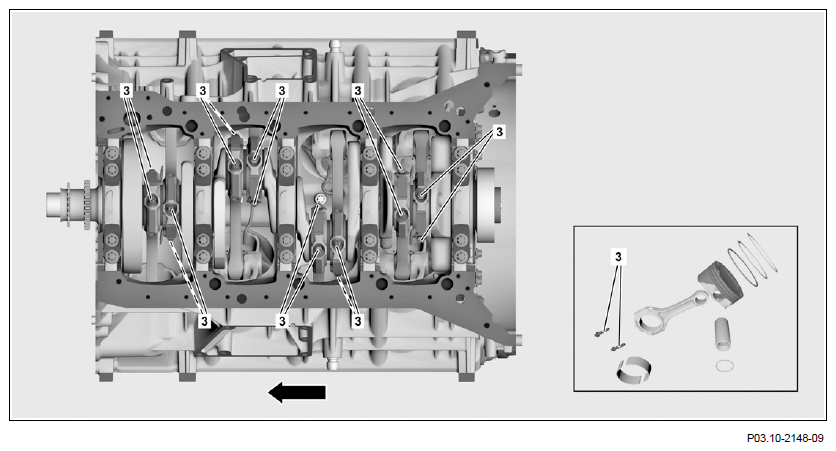

The arrow points in the direction of travel. If no angle tightener is available for final tightening, tighten screw/bolts (3) further by the specified angle in a single operation using a socket wrench and breaker bar. Do not use a bending rod torque wrench for tightening in order to avoid any angular errors.
Do not use an impact wrench/driver or compressed air tool to screw in the screw/bolts (3).
The threaded holes are damaged otherwise.
- Wet screw/bolts (3) on thread and bolt head contact surface with engine oil.
- Tighten screw/bolts (3) of the connecting rod bearing to stage 1. Engine 176
Engine 177.980, 178.9
- Tighten screw/bolts (3) of the connecting rod bearing to stage 2. Engine 176
Engine 177.980, 178.9
- Tighten screw/bolts (3) of the connecting rod bearing to stage 3. Engine 176
Engine 177.980, 178.9
