Pry Off Oil Pan - AR01.45-P-7500-04MNE
Engine 176, 177 in model 217, 222
Engine 177 in model 213
| 000 588 00 84 00 Heat gun | WS54.00-P-0049B |
- Screw in screw M6x60 mm or a longer screw into thread (2) and pry off oil pan (1).
Do not drive in any tools between crankcase and oil pan (1) to loosen the oil pan (1). The sealing surfaces will be damaged otherwise!
If necessary, heat oil pan (1) in area of sealing surfaces using a heat gun.

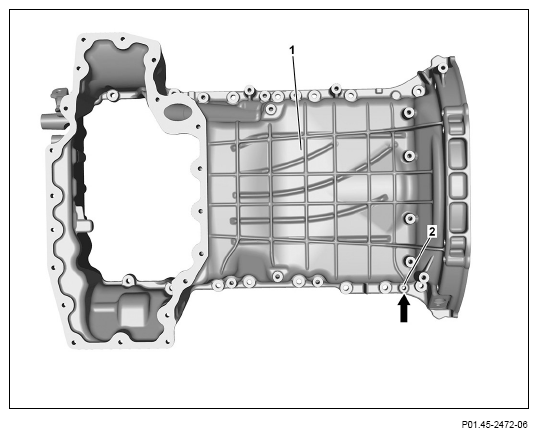

Shown on engine 177 with code M005 (4MATIC)

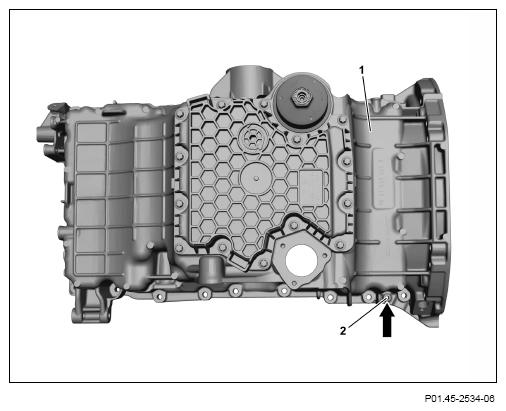

Shown on engine 177 without code M005 (4MATIC)
