Bolt Tightening Procedure For Cylinder Head Cover - AR01.20-P-5014-03MNA
Engine 176, 177, 178
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 176 | Engine 177 | ||
|---|---|---|---|---|---|
| BA01.20-P-1004-01J | Bolt, cylinder head cover to cylinder head/camshaft housing | Stage 1 | Nm | 10 | 10 |
| Stage 2 | ∠° | 90 | 90 | ||
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 178 | ||
|---|---|---|---|---|
| BA01.20-P-1004-01J | Bolt, cylinder head cover to cylinder head/camshaft housing | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||
Tighten cylinder head cover bolts in the numerical sequence. Replace screw/bolts for cylinder head cover.

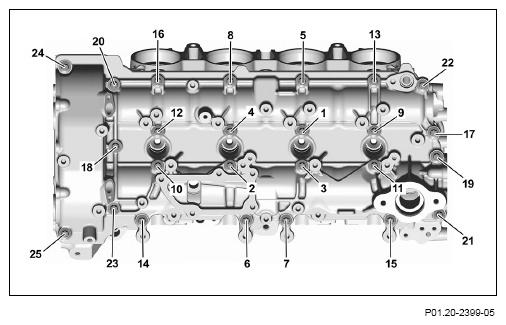

Left cylinder head cover
- Tighten screw/bolts (1 to 25) according to Stage 1
.
- Tighten screw/bolts (1 to 25) according to Stage 2

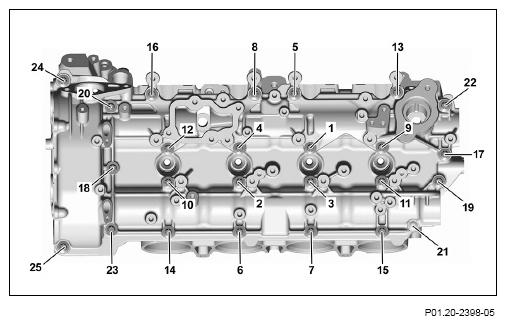

Right cylinder head cover
- Tighten screw/bolts (1 to 25) according to Stage 1
- Tighten screw/bolts (1 to 25) according to Stage 2
