Remove/Install Upper Coolant Expansion Reservoir For Low-Temperature Circuit - AR09.41-P-0050MNL

Engine 176 in model 217, 222

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install
1	Remove upper engine cover	: Only install upper engine cover after the leak test.
2	Remove cap from upper coolant expansion reservoir for low-temperature circuit (2)	: Only attach cap to upper coolant expansion reservoir for low-temperature circuit (2) after leak test.
3	Suction off coolant from upper coolant expansion reservoir for low-temperature circuit (2)	Hand pump	Fig 1

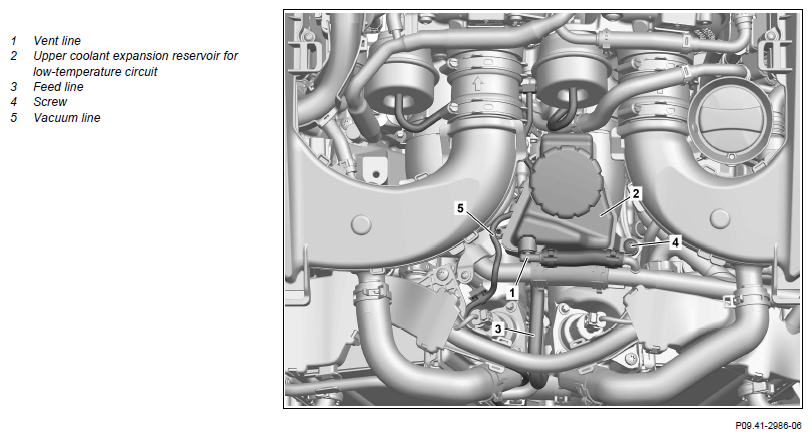

4	Actuate connector coupling, remove bleed line (1) from upper coolant expansion reservoir for low-temperature circuit (2) and seal openings with suitable stop plugs	Record plug	Fig 2
5	Actuate connector coupling, remove feed line (3) from upper coolant expansion reservoir for low-temperature circuit (2) and seal openings with suitable stop plugs	Record plug	Fig 2
6	Remove screw/bolt (4)
		Bolt, low-temperature circuit expansion reservoir at top to low-pressure line	*BA09.41-P-1011-01X
7	Remove vacuum line (5) at upper coolant expansion reservoir for low-temperature circuit (2)
8	Remove upper coolant expansion reservoir for low-temperature circuit (2) in upward direction	: Wet elastomer bearing with antiseize paste.
		Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
9	Check elastomer bearing of upper coolant expansion reservoir for low-temperature circuit (2) for damage	If a problem arises ↓ Replace elastomer bearing.
10	Install in the reverse order
	Check
11	Check coolant level in upper coolant expansion reservoir for low-temperature circuit (2) and correct if necessary	Cooling system	*BF20.00-P-1001-06A
12	Check low-temperature circuit cooling system for leaktightness		AR09.41-P-1011MNL
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Perform an engine test run and in doing so check low-temperature circuit for proper function

CHARGE AIR LINE/CHARGE AIR COOLING

Number	Designation		Engine 176
BA09.41-P-1011-01X	Bolt, low-temperature circuit expansion reservoir at top to low-pressure line	Nm	9

COOLING SYSTEM

Number	Designation				Engine 176 in model 217	Engine 176 in model 222
BF20.00-P-1001-06A	Cooling system	Workshop replacement amount	Main circuit	Liter	≈ 14	≈ 14
		Workshop replacement amount	Low-temperature circuit	Liter	≈ 4	≈ 4
		Antifreeze/water	Down to -37°C	%	50/50	50/50
			-38°C and below	%	55/45	55/45
			Fluids Specifications		BB00.40-P-0310-01A	BB00.40-P-0310-01A
			Fluids Specifications		BB00.40-P-0325-06A	BB00.40-P-0325-06A
			Fluids Specifications		BB00.40-P-0326-06A	BB00.40-P-0326-06A

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	A 000 989 01 60
