Routing Diagram For Poly-V Belt - AR13.22-P-3902-02MNL

Engine 176 in Model 217, 222

Shown in Model 222 without code 487 (MAGIC BODY CONTROL)

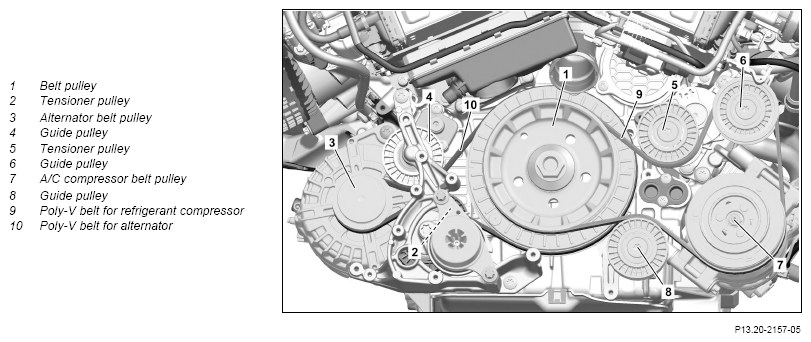

Fig 1: Poly-V Drive Belt Routing Diagram - Engine 176 In Model 222 (Shown Without Code 487)

Courtesy of MERCEDES-BENZ USA

Shown in Model 222 with code 487 (MAGIC BODY CONTROL)

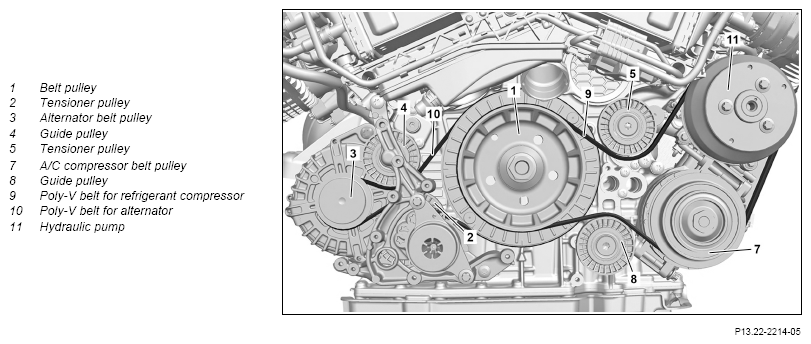

Fig 2: Poly-V Drive Belt Routing Diagram - Engine 176 In Model 222 (Shown With Code 487)

Courtesy of MERCEDES-BENZ USA
