Remove/Install Lower Guide Pulley For Poly-V Belt Of Refrigerant Compressor - AR13.20-P-0004MNL
Engine 176 in Model 217, 222
Shown in Model 222 without code 487 (MAGIC BODY CONTROL)

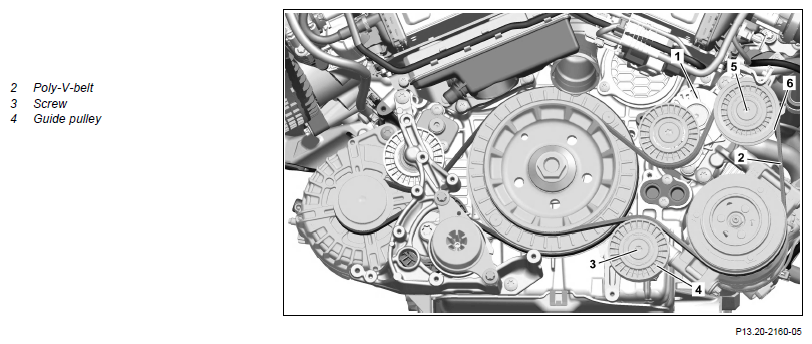

Fig 1: Lower Guide Pulley For Poly-V Belt Of Refrigerant Compressor Components Location - Engine 176 in Model 222 (Shown Without Code 487)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove the poly-V-belt (2) | AR13.21-P-1203MNL | |
| 2 | Remove screw/bolt (3b) and then guide pulley (4) downwards | *BA13.25-P-1003-01CA | |
| 3 | Install in the reverse order |
BELT TENSIONER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA13.25-P-1003-01CA | Bolt, guide pulley to bracket | Nm | 20 |
