Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97SEA

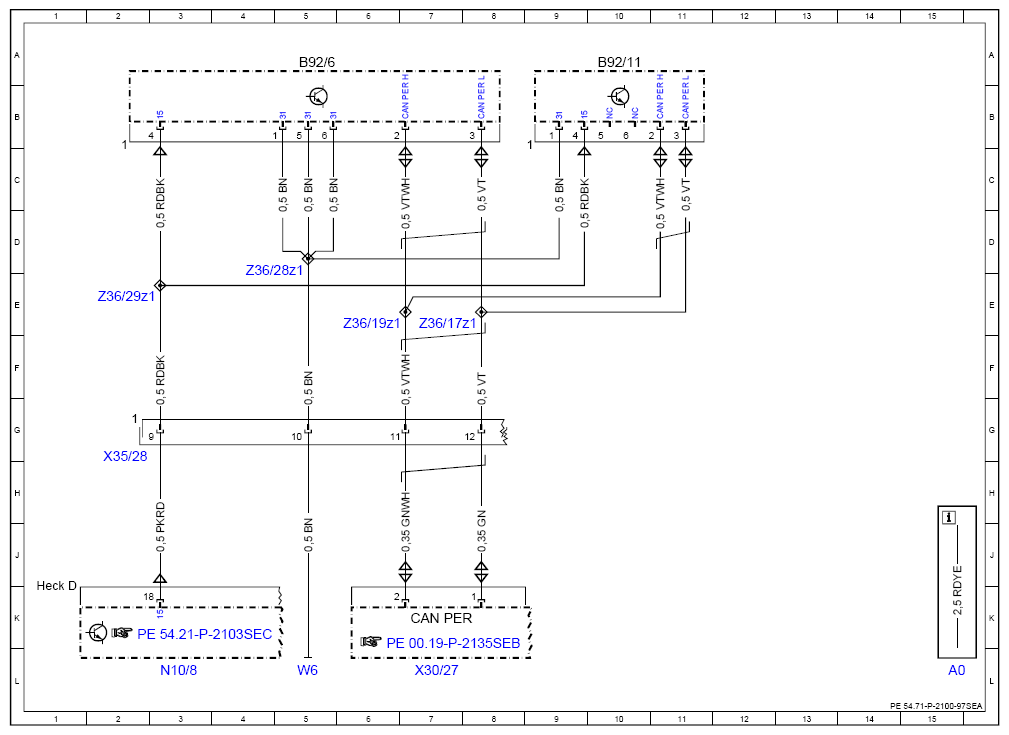

Model 217, 222 as of model year 2018 with code 234 (Blind Spot Monitoring) Bumper integrated radar sensors B92/6 and B92/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| B92/11 | Left outer rear bumper integrated radar sensor | 10A |
| B92/6 | Right outer rear bumper integrated radar sensor | 5A |
| CAN PER | Peripherals CAN | 7K |
| N10/8 | Rear SAM control unit | 3L |
| W6 | Left wheel arch trunk ground point | 5L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
| X35/28 | Rear bumper parking system electrical connector | 2H |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 7E |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 6E |
| Z36/28z1 | Rear radar sensors ground line connector sleeve | 5E |
| Z36/29z1 | Rear radar sensors sensor power supply connector sleeve | 2E |
