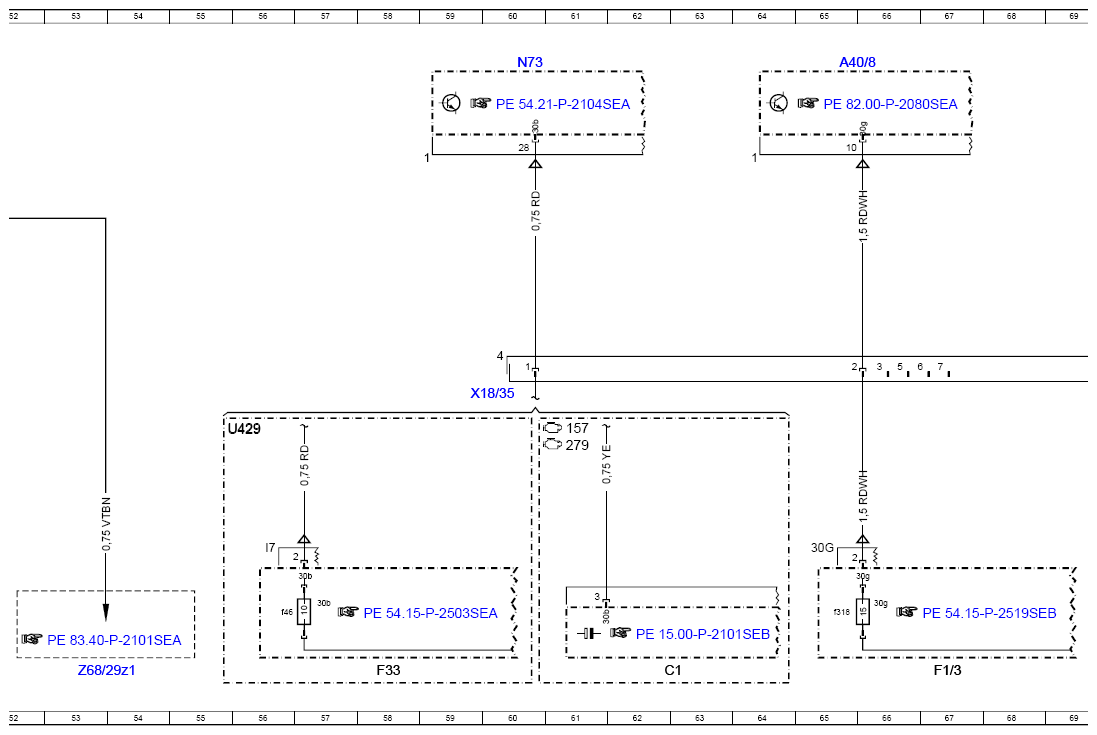

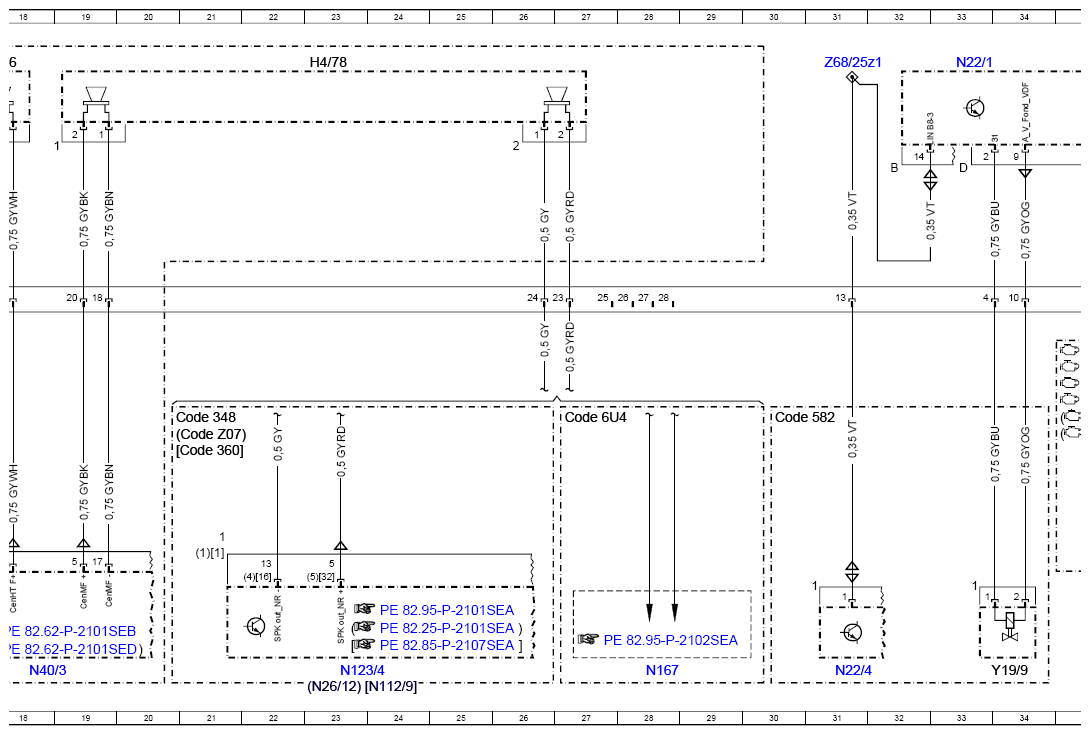

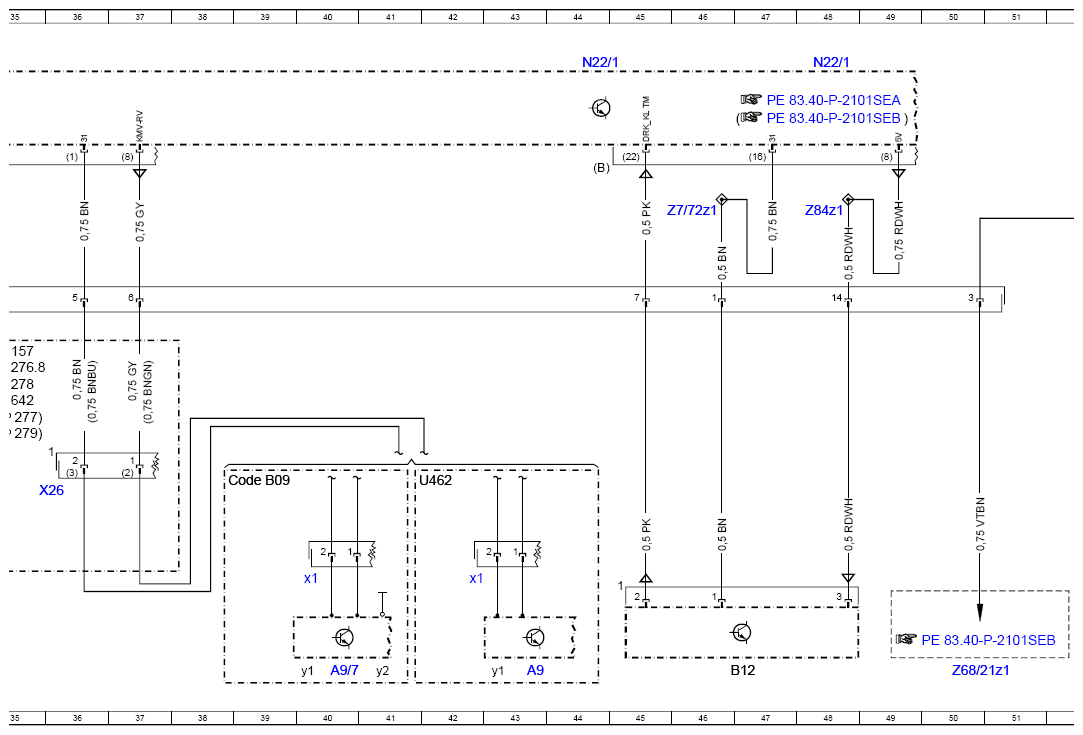

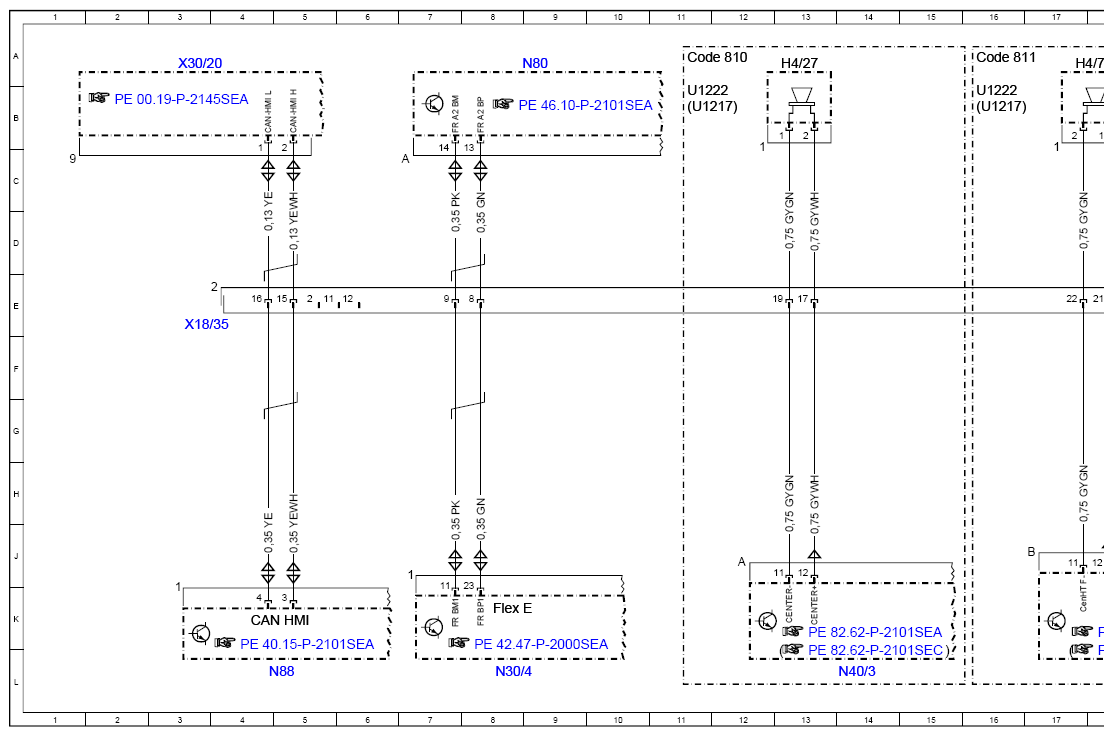

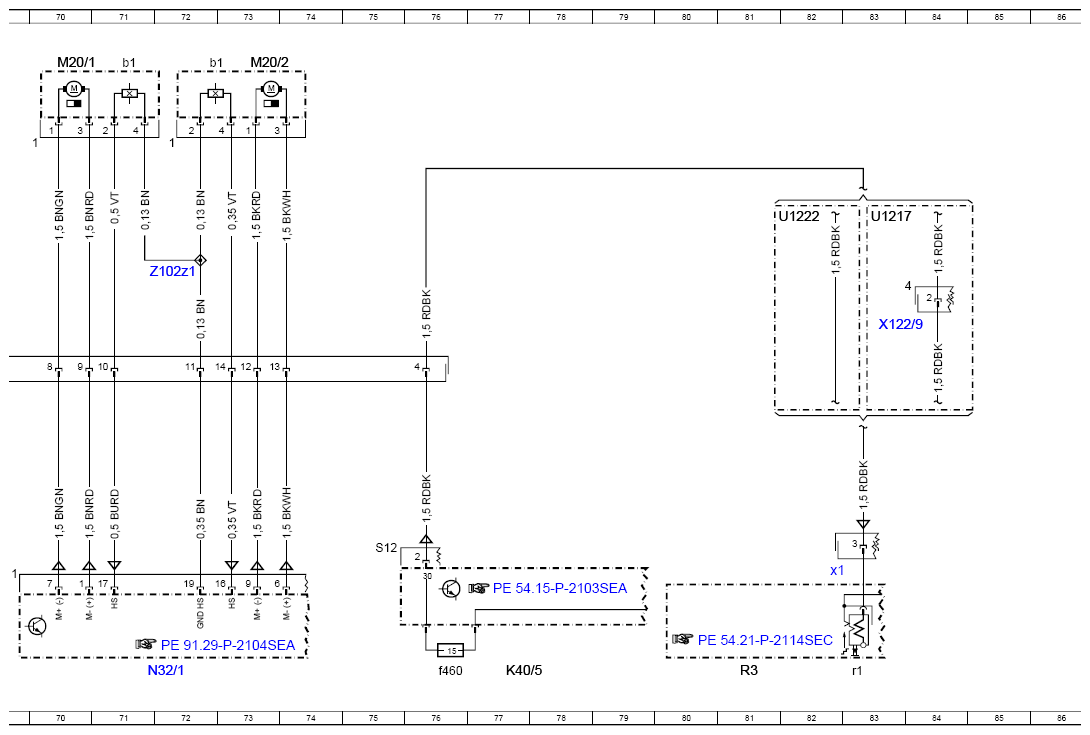

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEE
Model 217 up to model year 2018 X18/35(2), X18/35(4)
Model 222 up to model year 2018 X18/35(2), X18/35(4)
| Code: | Designation: | Position: |
|---|---|---|

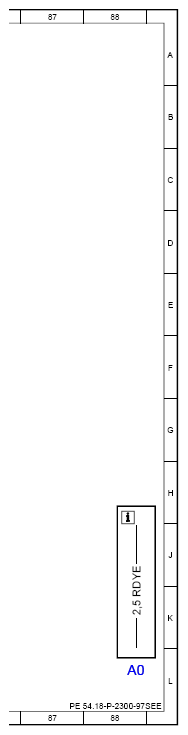

| A0 | Use of wiring diagrams | 88L |
| A40/8 | Audio/COMAND display | 65A |
| A9 | Refrigerant compressor | 43L |
| A9/7 | Refrigerant compressor with magnetic clutch | 40L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 40J |
| A9/7y1 | Refrigerant compressor regulation valve | 40L |
| A9/7y2 | Refrigerant compressor magnetic clutch | 41L |
| A9x1 | Refrigerant compressor electrical connector | 42J |
| A9y1 | Refrigerant compressor regulation valve | 43L |
| B12 | Refrigerant pressure sensor | 47L |
| C1 | Starter battery capacitor | 62L |
| CAN HMI | User interface CAN | 4K |
| Code 348 | Emergency call/assistance system | 20G |
| Code 360 | HERMES UMTS | 20G |
| Code 582 | Air conditioning in rear | 30G |
| Code 6U4 | Mercedes-Benz E-Call Russia (GLONASS) emergency call system | 27G |
| Code 810 | Sound system | 11A |
| Code 811 | Advanced sound system | 16A |
| Code B09 | Refrigerant compressor with magnetic clutch | 38H |
| Code Z07 | Top protection | 20G |
| F1/3 | Right A-pillar fuse box | 67L |
| F1/3f318 | Fuse 318 | 65K |
| F33 | Rear pre-fuse box | 58L |
| F33f46 | Fuse 46 | 56K |
| Flex E | Chassis FlexRay | 8K |
| H4/27 | Center instrument panel speaker | 13A |
| H4/76 | Center instrument panel tweeter | 17A |
| H4/78 | Center instrument panel midrange speaker | 23A |
| K40/5 | Rear fuse and relay module | 77L |
| K40/5f460 | Fuse 460 | 76L |
| M20/1 | Steering column in/out adjustment motor | 70A |
| M20/1b1 | Steering column in/out Hall sensor | 71A |
| M20/2 | Steering column up/down adjustment motor | 73A |
| M20/2b1 | Steering column up/down Hall sensor | 72A |
| N112/9 | HERMES control unit | 24L |
| N123/4 | Emergency call system control unit | 23L |
| N167 | E-Call Russia (GLONASS) control unit | 28L |
| N22/1 | Climate control, control unit | 33A |
| N22/1 | Climate control, control unit | 44A |
| N22/1 | Climate control, control unit | 48A |
| N22/4 | Rear air conditioning operating unit | 31L |
| N26/12 | PAS [GAS] and special signal system control unit | 23L |
| N30/4 | Electronic Stability Program control unit | 8L |
| N32/1 | Driver seat control unit | 72L |
| N40/3 | Sound system amplifier control unit | 14L |
| N40/3 | Sound system amplifier control unit | 18L |
| N73 | Electronic ignition switch control unit | 60A |
| N80 | Steering column module control unit | 9A |
| N88 | Tire pressure monitor control unit | 5L |
| R3 | Front cigarette lighter with ashtray illumination | 81L |
| R3r1 | Cigarette lighter heating element | 83L |
| U1217 | Valid for model series 217 | 11B |
| U1217 | Valid for model series 217 | 16B |
| U1217 | Valid for model series 217 | 83D |
| U1222 | Valid for model series 222 | 11B |
| U1222 | Valid for model series 222 | 16B |
| U1222 | Valid for model series 222 | 81D |
| U429 | Valid for all except AMG | 55G |
| U462 | Valid without code B09 Refrigerant compressor with magnetic clutch | 41H |
| X122/9 | Passenger-side instrument panel electrical connector | 83E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 3E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 60F |
| X26 | Interior and engine wiring harness electrical connector | 36H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 3A |
| X58/17x1 | Electrical connector/front vehicle interior socket | 82J |
| Y19/9 | Rear air conditioning evaporator shutoff valve | 34L |
| Z102z1 | Steering column adjustment motor connector sleeve | 72E |
| Z68/21z1 | Connector sleeve, ground line for climate control LIN 2 | 50L |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 31A |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 53L |
| Z7/72z1 | Sensor ground connector sleeve | 46D |
| Z84z1 | Connector sleeve 5 V climate control potentiometer, left and right side air vent | 48D |
