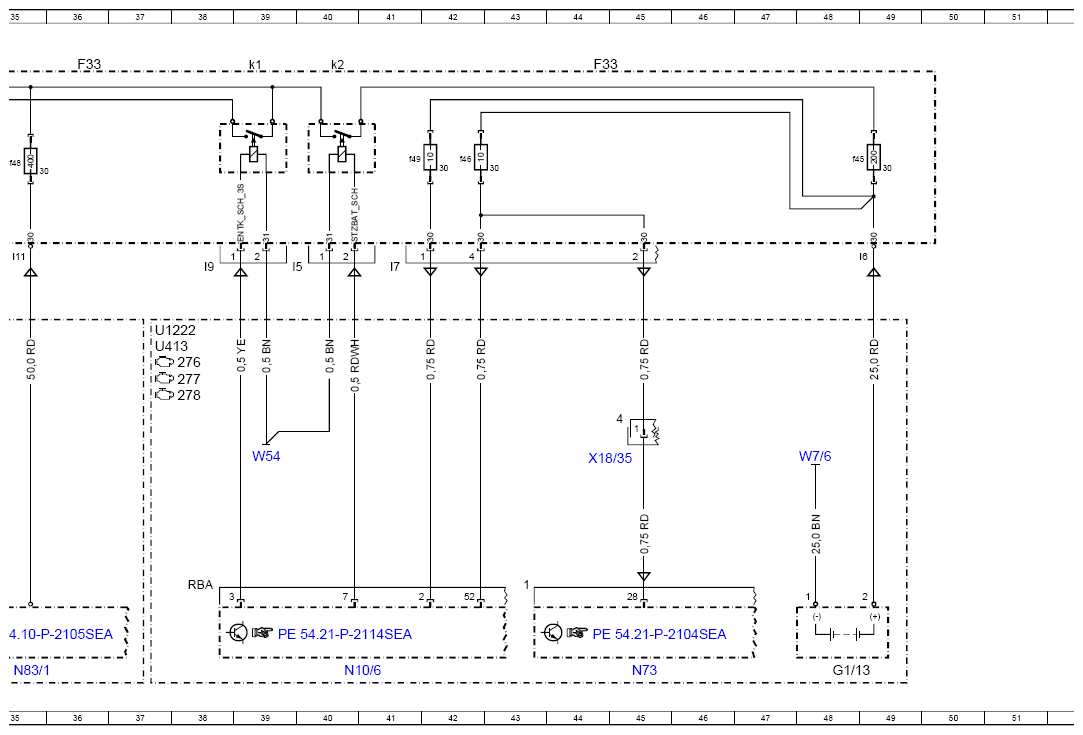

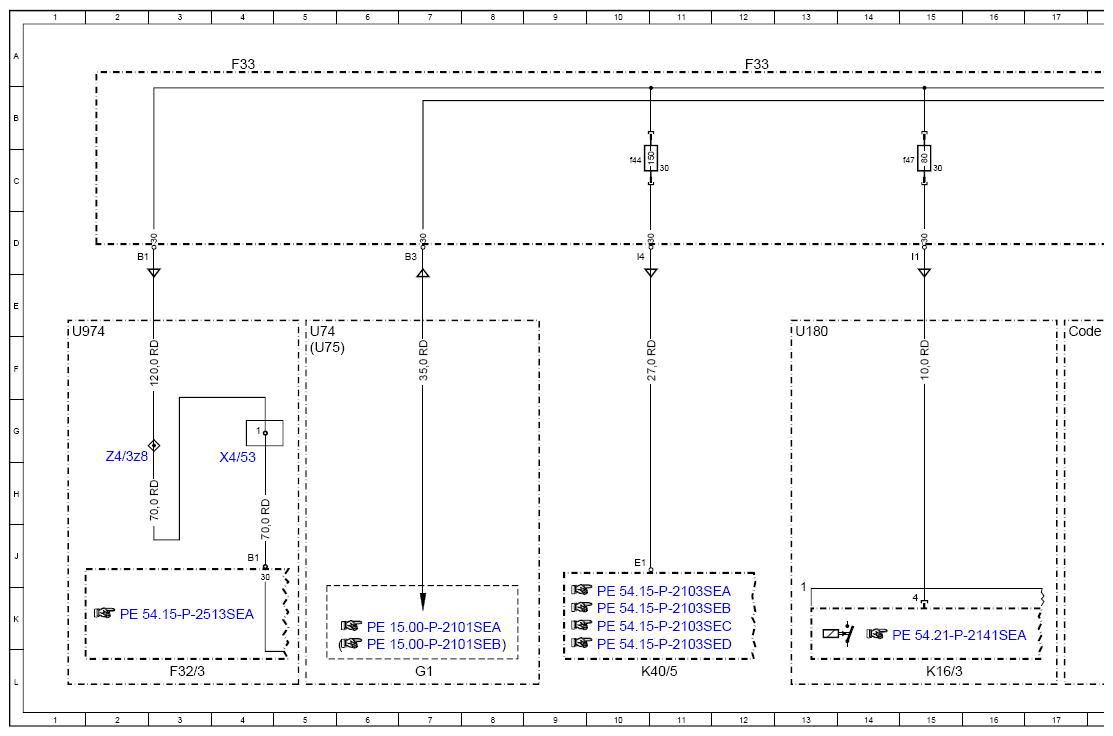

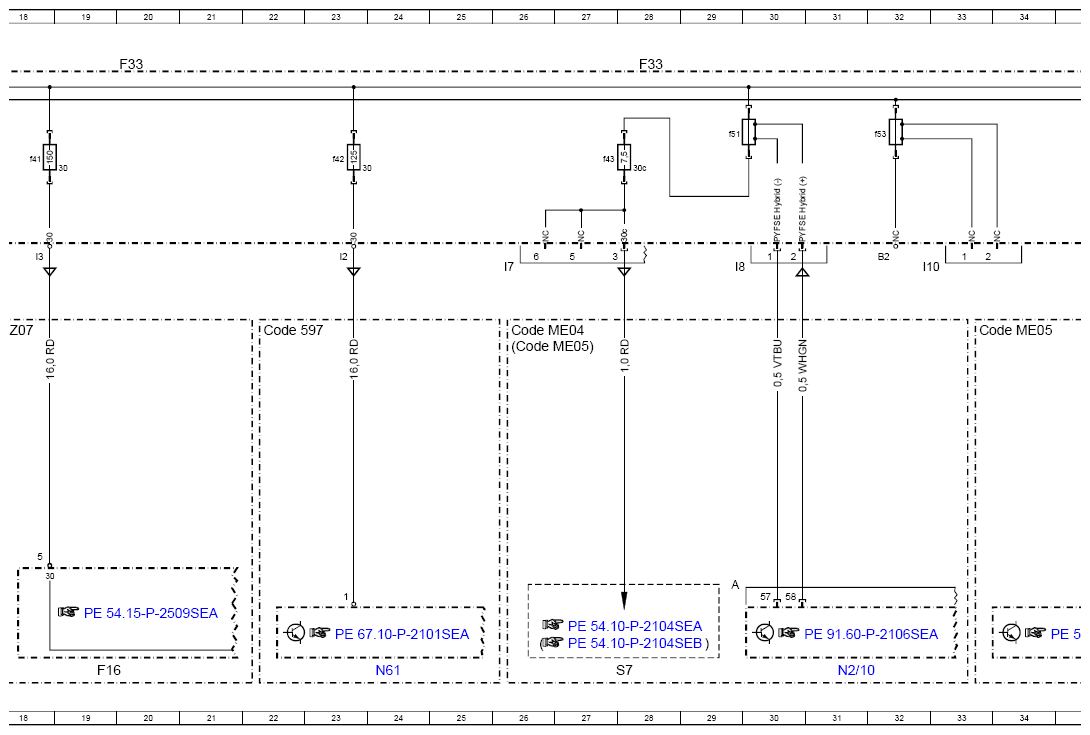

Wiring Diagram, Rear Pre-Fuse Box (F33) - PE54.15-P-2503-97SEA
Model 217 up to model year 2018
Model 222 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|

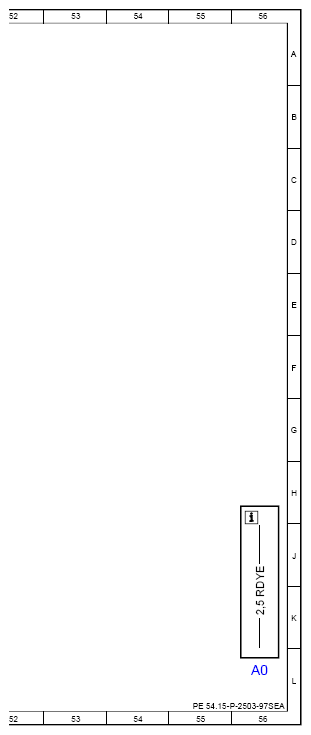

| A0 | Use of wiring diagrams | 56L |
| Code 597 | Heated windshield | 22E |
| Code ME04 | Mild hybrid drive | 26E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 26F |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 33E |
| Code Z07 | Top protection | 17E |
| F16 | Special protection vehicles fuse box | 19L |
| F32/3 | Engine compartment pre-fuse box | 3L |
| F33 | Rear pre-fuse box | 4A |
| F33 | Rear pre-fuse box | 20A |
| F33 | Rear pre-fuse box | 12A |
| F33 | Rear pre-fuse box | 28A |
| F33 | Rear pre-fuse box | 36A |
| F33 | Rear pre-fuse box | 44A |
| F33f41 | Fuse 41 | 18C |
| F33f42 | Fuse 42 | 23C |
| F33f43 | Fuse 43 | 27C |
| F33f44 | Fuse 44 | 10C |
| F33f45 | Fuse 45 | 48C |
| F33f46 | Fuse 46 | 42C |
| F33f47 | Fuse 47 | 15C |
| F33f48 | Fuse 48 | 35C |
| F33f49 | Fuse 49 | 41C |
| F33f51 | High-voltage pyrofuse | 29B |
| F33f53 | Low-voltage pyrofuse | 32B |
| F33k1 | Decoupling relay | 39A |
| F33k2 | ECO start/stop function additional battery relay | 40A |
| G1 | On-board electrical system battery | 7L |
| G1/13 | ECO start/stop function additional battery | 48L |
| K16/3 | Heater booster relay | 15L |
| K40/5 | Rear fuse and relay module | 11L |
| N10/6 | Front SAM control unit | 40L |
| N2/10 | Supplemental restraint system control unit | 31L |
| N61 | Windshield heater control unit | 24L |
| N73 | Electronic ignition switch control unit | 45L |
| N83/1 | DC/DC converter control unit | 35L |
| S7 | High-voltage disconnect device | 28L |
| U1222 | Valid for model series 222 | 37E |
| U180 | Valid for cold countries | 13E |
| U413 | Valid for model 217.3 | 37F |
| U74 | Valid for diesel engines | 5E |
| U75 | Valid for gasoline engines | 5F |
| U974 | Not valid for hybrid drive | 1E |
| W54 | Right rear wheel well ground point | 39G |
| W7/6 | Rear additional battery ground point | 48G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 45H |
| X4/53 | Right terminal 30 terminal block | 4H |
| Z4/3z8 | Tml. 30 connector sleeve | 2G |
