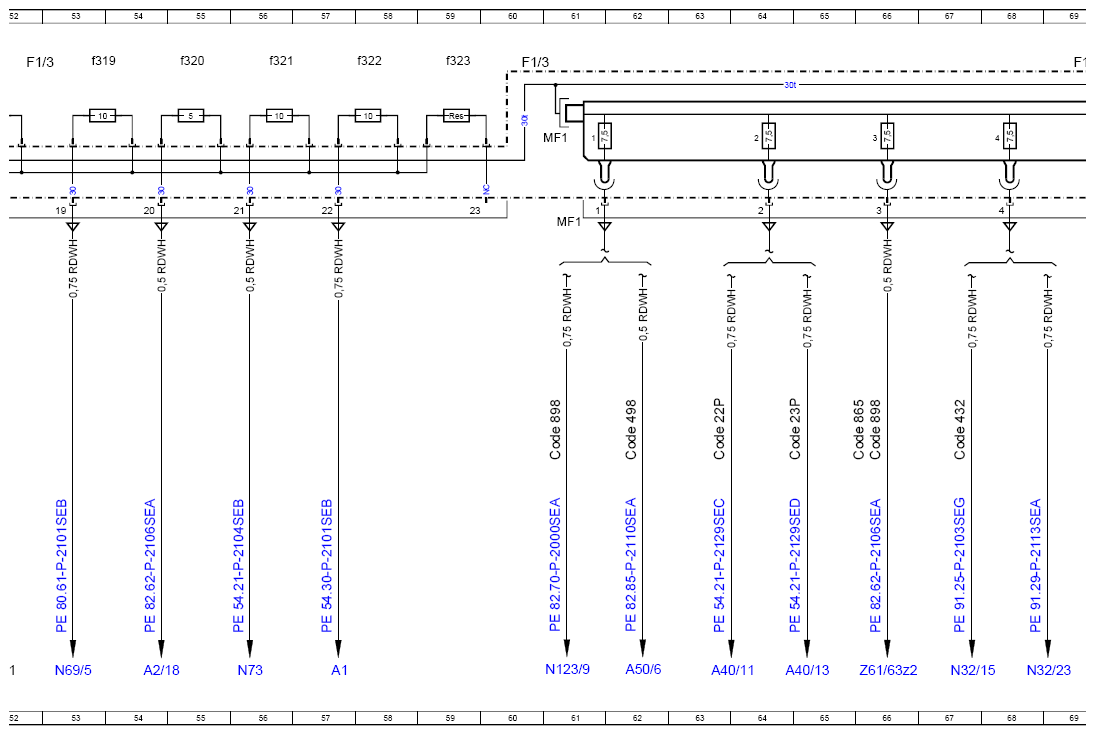

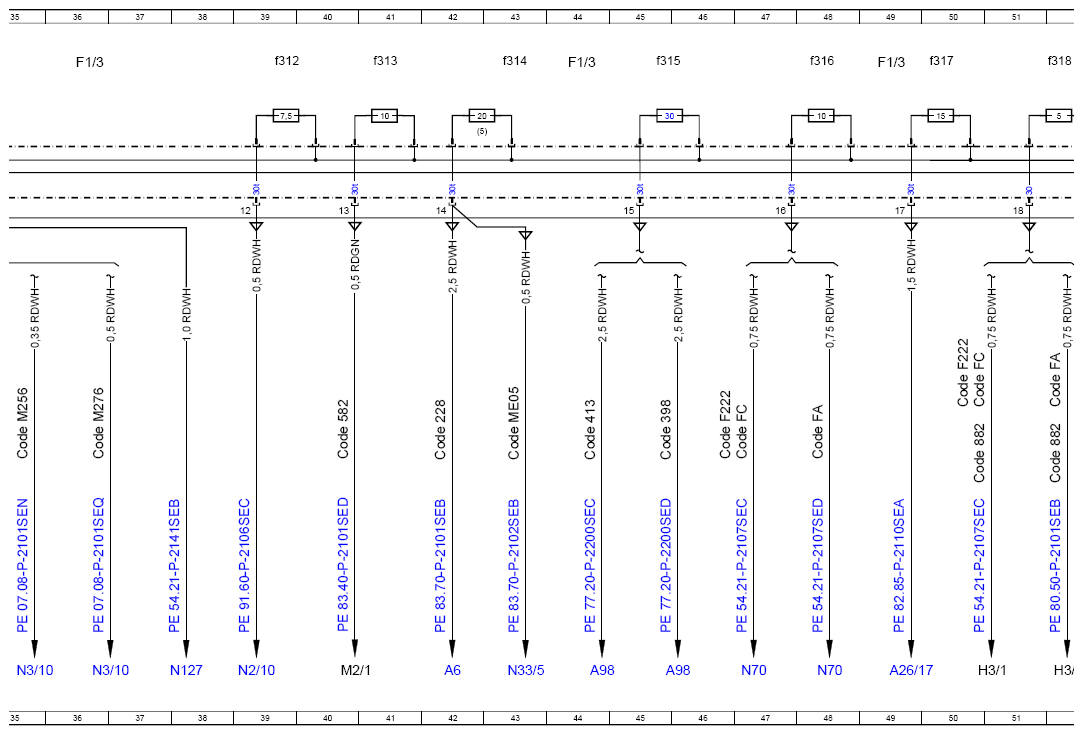

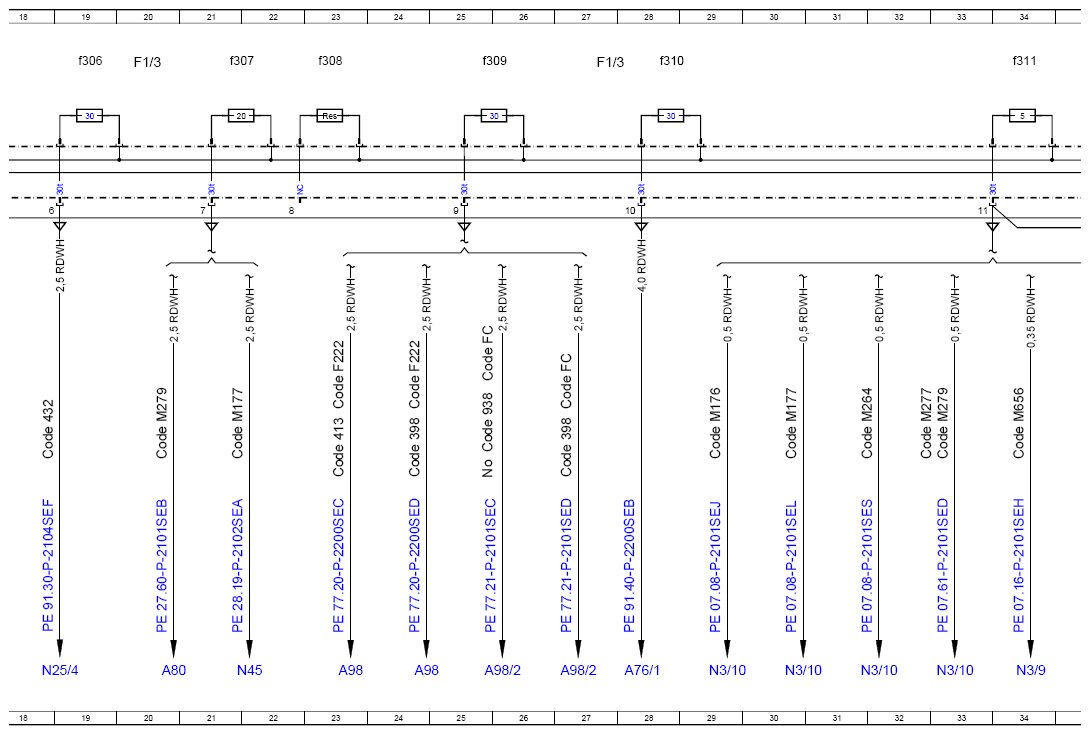

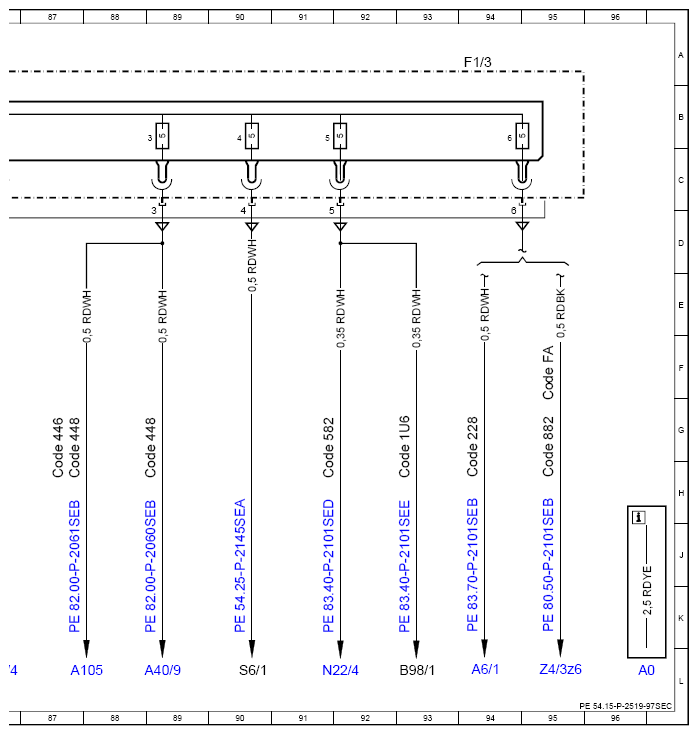

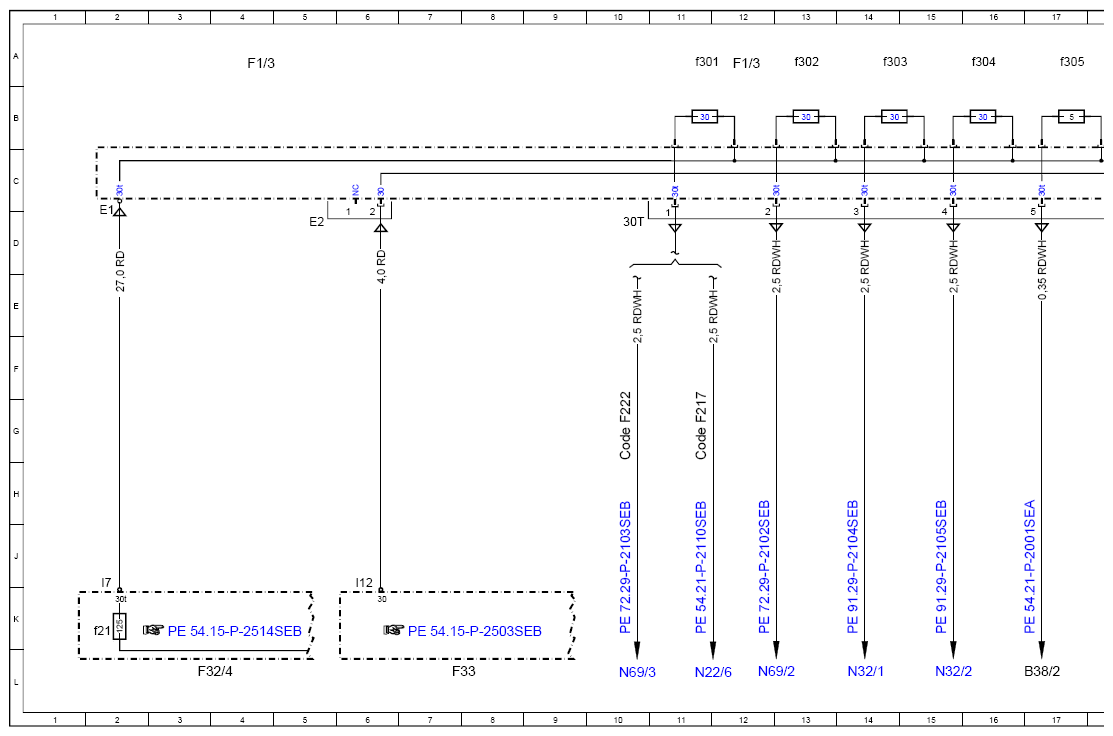

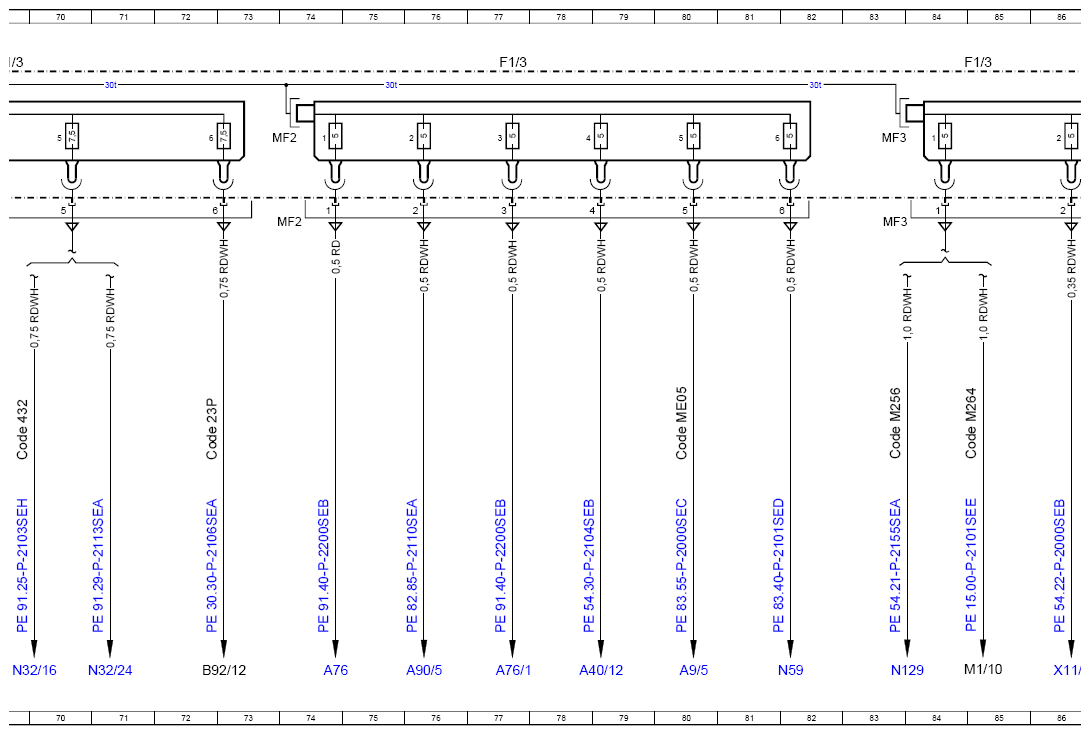

Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97SEC
Model 217, 222 as of model year 2018 Fuse box F1/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A1 | Instrument cluster | 57L |
| A105 | Touchpad | 87L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 54L |
| A26/17 | Head unit | 49L |
| A40/11 | Mono multifunction camera | 63L |
| A40/12 | Head-up display | 78L |
| A40/13 | Stereo multifunction camera | 65L |
| A40/9 | Audio/COMAND control panel | 89L |
| A50/6 | Dedicated Short-Range Communications control unit | 62L |
| A6 | Stationary heater unit | 42L |
| A6/1 | Stationary heater radio remote control receiver | 94L |
| A76 | Left front reversible emergency tensioning retractor | 74L |
| A76/1 | Right front reversible emergency tensioning retractor | 28L |
| A76/1 | Right front reversible emergency tensioning retractor | 77L |
| A80 | Intelligent servo module for DIRECT SELECT | 20L |
| A9/5 | Electric refrigerant compressor | 80L |
| A90/5 | Multimedia connection unit | 76L |
| A98 | Panoramic sliding roof control module | 24L |
| A98 | Panoramic sliding roof control module | 23L |
| A98 | Panoramic sliding roof control module | 44L |
| A98 | Panoramic sliding roof control module | 46L |
| A98/2 | Panoramic roof roller sun blind control module | 26L |
| A98/2 | Panoramic roof roller sun blind control module | 27L |
| B38/2 | Rain/light sensor with additional functions | 17L |
| B92/12 | Short and long-range radar sensor | 72L |
| B98/1 | Rear passenger compartment CO2 sensor | 93L |
| Code 1U6 | Refrigerant R744 | 93H |
| Code 228 | Stationary heater | 42G |
| Code 228 | Stationary heater | 94H |
| Code 22P | Track package | 63G |
| Code 23P | Driver assistance package | 65G |
| Code 23P | Driver assistance package | 72G |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 24H |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 27H |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 45G |
| Code 413 | Panoramic sliding sunroof | 23H |
| Code 413 | Panoramic sliding sunroof | 44G |
| Code 432 | Left and right front dynamic multicontour seat | 18G |
| Code 432 | Left and right front dynamic multicontour seat | 67G |
| Code 432 | Left and right front dynamic multicontour seat | 69G |
| Code 446 | Touchpad only | 87H |
| Code 448 | Touchpad | 89H |
| Code 448 | Touchpad | 87H |
| Code 498 | Japan version | 62G |
| Code 582 | Air conditioning in rear | 40G |
| Code 582 | Air conditioning in rear | 91H |
| Code 865 | TV tuner | 66G |
| Code 882 | Interior protection (only with ATA [EDW]) | 51H |
| Code 882 | Interior protection (only with ATA [EDW]) | 52H |
| Code 882 | Interior protection (only with ATA [EDW]) | 95H |
| Code 898 | Wireless charging in rear passenger compartment | 61G |
| Code 898 | Wireless charging in rear passenger compartment | 66G |
| Code 938 | Hands-free system | 26G |
| Code F217 | MODEL SERIES 217 | 11G |
| Code F222 | MODEL SERIES 222 | 24G |
| Code F222 | MODEL SERIES 222 | 23G |
| Code F222 | MODEL SERIES 222 | 10G |
| Code F222 | MODEL SERIES 222 | 46G |
| Code F222 | MODEL SERIES 222 | 50G |
| Code FA | CABRIOLET | 48G |
| Code FA | CABRIOLET | 95G |
| Code FA | CABRIOLET | 52G |
| Code FC | COUPE | 27G |
| Code FC | COUPE | 26F |
| Code FC | COUPE | 47G |
| Code FC | COUPE | 51G |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 29G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 22G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 30G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 35G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 83G |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 32G |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 85G |
| Code M276 | SPARK-IGNITION ENGINE M276 | 36G |
| Code M277 | V12 SPARK-IGNITION ENGINE M277 | 33G |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 20G |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 33G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 34G |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 43G |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 80G |
| F1/3 | Passenger-side A-pillar fuse box | 4A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 20A |
| F1/3 | Passenger-side A-pillar fuse box | 27A |
| F1/3 | Passenger-side A-pillar fuse box | 36A |
| F1/3 | Passenger-side A-pillar fuse box | 44A |
| F1/3 | Passenger-side A-pillar fuse box | 52A |
| F1/3 | Passenger-side A-pillar fuse box | 49A |
| F1/3 | Passenger-side A-pillar fuse box | 60A |
| F1/3 | Passenger-side A-pillar fuse box | 69A |
| F1/3 | Passenger-side A-pillar fuse box | 77A |
| F1/3 | Passenger-side A-pillar fuse box | 85A |
| F1/3 | Passenger-side A-pillar fuse box | 94A |
| F1/3MF1 | Multiple fuse 1 | 61B |
| F1/3MF2 | Multiple fuse 2 | 74B |
| F1/3MF3 | Multiple fuse 3 | 83B |
| F1/3f301 | Fuse 301 | 11A |
| F1/3f302 | Fuse 302 | 13A |
| F1/3f303 | Fuse 303 | 14A |
| F1/3f304 | Fuse 304 | 16A |
| F1/3f305 | Fuse 305 | 17A |
| F1/3f306 | Fuse 306 | 19A |
| F1/3f307 | Fuse 307 | 21A |
| F1/3f308 | Fuse 308 | 23A |
| F1/3f309 | Fuse 309 | 26A |
| F1/3f310 | Fuse 310 | 28A |
| F1/3f311 | Fuse 311 | 34A |
| F1/3f312 | Fuse 312 | 39A |
| F1/3f313 | Fuse 313 | 41A |
| F1/3f314 | Fuse 314 | 43A |
| F1/3f315 | Fuse 315 | 45A |
| F1/3f316 | Fuse 316 | 48A |
| F1/3f317 | Fuse 317 | 50A |
| F1/3f318 | Fuse 318 | 52A |
| F1/3f319 | Fuse 319 | 53A |
| F1/3f320 | Fuse 320 | 55A |
| F1/3f321 | Fuse 321 | 56A |
| F1/3f322 | Fuse 322 | 58A |
| F1/3f323 | Electrical fuse 323 | 59A |
| F32/4 | Vehicle interior pre-fuse box | 3L |
| F32/4f21 | Fuse 21 | 2K |
| F33 | Rear pre-fuse box | 7L |
| H3/1 | Alarm siren | 50L |
| H3/1 | Alarm siren | 52L |
| M1/10 | Starter-alternator | 85L |
| M2/1 | Rear blower motor | 40L |
| N123/9 | Telephone control unit | 61L |
| N127 | Drivetrain control unit | 38L |
| N129 | Starter generator control unit | 83L |
| N2/10 | Supplemental restraint system control unit | 39L |
| N22/4 | Rear air conditioning operating unit | 91L |
| N22/6 | Rear control unit | 11L |
| N25/4 | Front passenger seat heater control unit | 18L |
| N3/10 | ME-SFI [ME] control unit | 32L |
| N3/10 | ME-SFI [ME] control unit | 33L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| N3/10 | ME-SFI [ME] control unit | 35L |
| N3/10 | ME-SFI [ME] control unit | 36L |
| N3/9 | CDI control unit | 34L |
| N32/1 | Driver seat control unit | 14L |
| N32/15 | Left front multicontour seat control unit | 67L |
| N32/16 | Right front multicontour seat control unit | 69L |
| N32/2 | Front passenger seat control unit | 15L |
| N32/23 | Driver seat lumbar support adjustment control unit | 68L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 71L |
| N33/5 | High-voltage PTC heater | 43L |
| N45 | All-wheel drive control unit | 22L |
| N59 | Perfume atomizer generator | 82L |
| N69/2 | Right front door control unit | 12L |
| N69/3 | Left rear door control unit | 10L |
| N69/5 | KEYLESS-GO control unit | 53L |
| N70 | Overhead control panel control unit | 48L |
| N70 | Overhead control panel control unit | 47L |
| N73 | Electronic ignition switch control unit | 56L |
| S6/1 | Driver-side instrument panel button group | 90L |
| X11/4 | Diagnostic connector | 86L |
| Z4/3z6 | Tml. 30 connector sleeve | 95L |
| Z61/63z2 | Terminal 30t connector sleeve | 66L |
