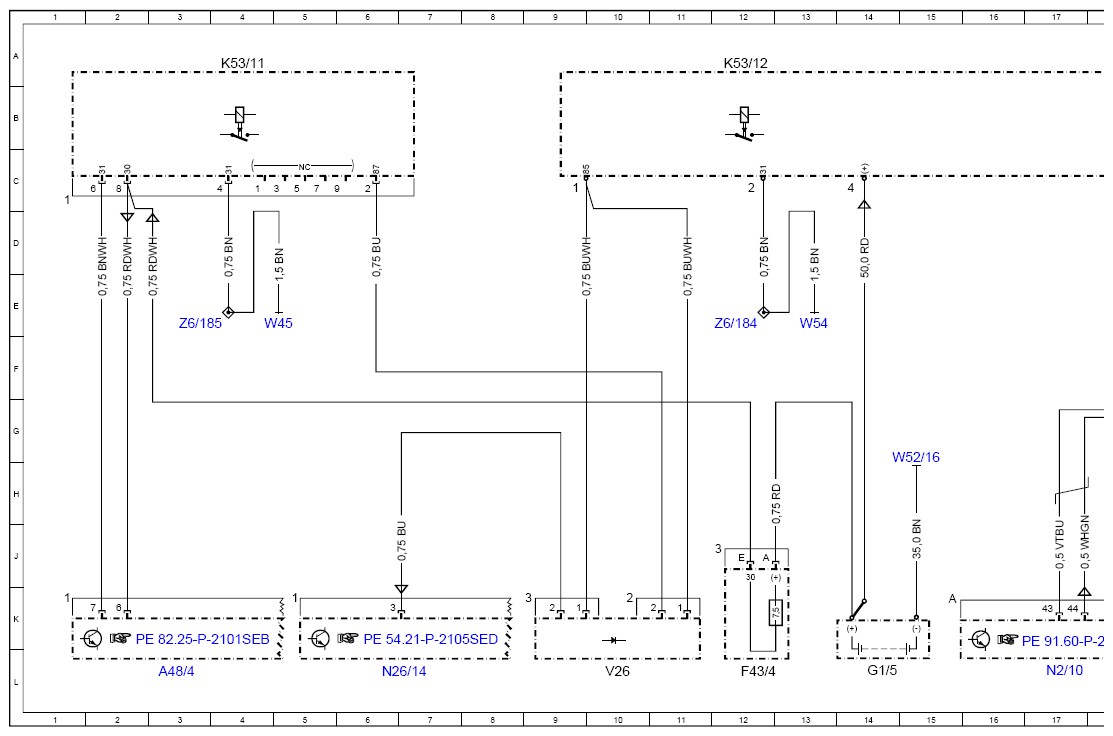

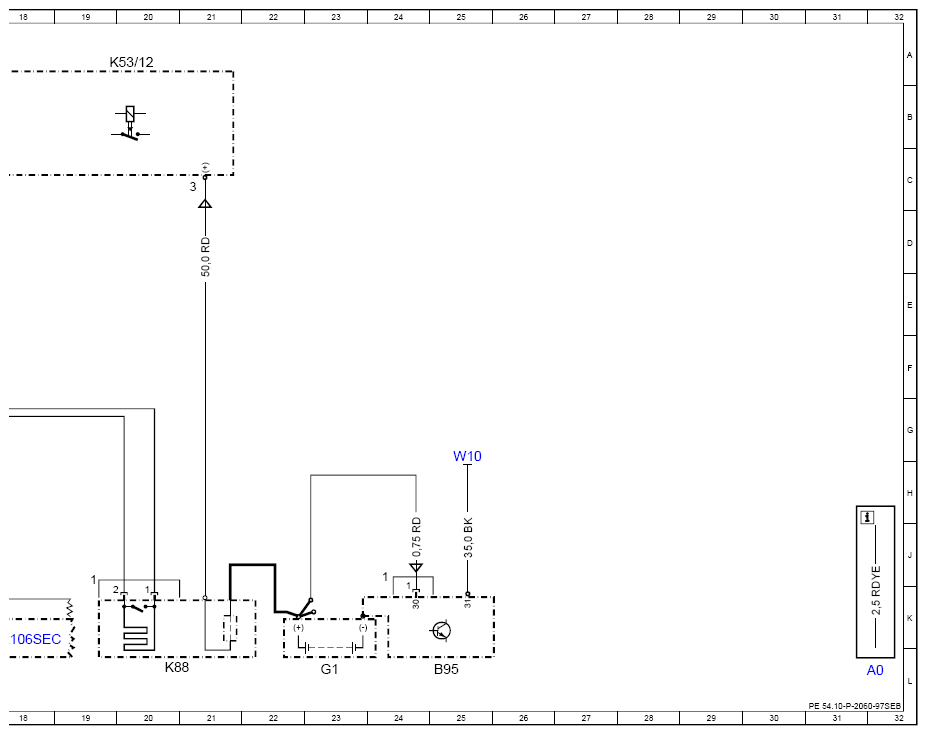

Wiring Diagram For Emergency Start Aid - PE54.10-P-2060-97SEB
Model 222 as of model year 2018 with code Z07 (B7 armoring on special protection version)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A48/4 | Guard operating unit | 3L |
| B95 | Battery sensor | 25L |
| F43/4 | Right rear hydraulic window lifter fuse block | 12L |
| G1 | On-board electrical system battery | 23L |
| G1/5 | Special protection vehicle additional battery | 14L |
| K53/11 | Emergency start system relay | 4A |
| K53/12 | Emergency start system relay (high current) | 12A |
| K53/12 | Emergency start system relay (high current) | 20A |
| K88 | Pyrotechnical separator | 20L |
| N2/10 | Supplemental restraint system control unit | 17L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 6L |
| V26 | Overvoltage protection diode | 10L |
| W10 | Battery ground point | 25G |
| W45 | Equipment carrier plate ground connection | 4E |
| W52/16 | Right rear longitudinal member ground point | 15G |
| W54 | Right rear wheel well ground point | 13E |
| Z6/184 | Circuit 31 connector sleeve 1 | 12E |
| Z6/185 | Circuit 31 connector sleeve 2 | 3E |
