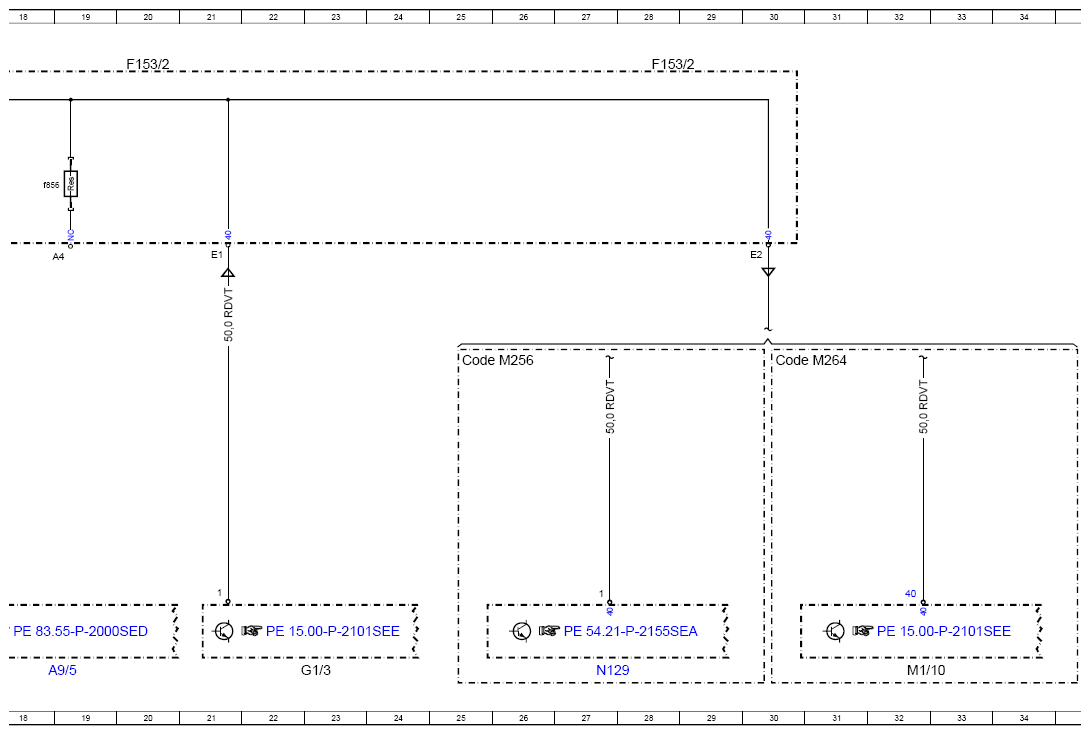

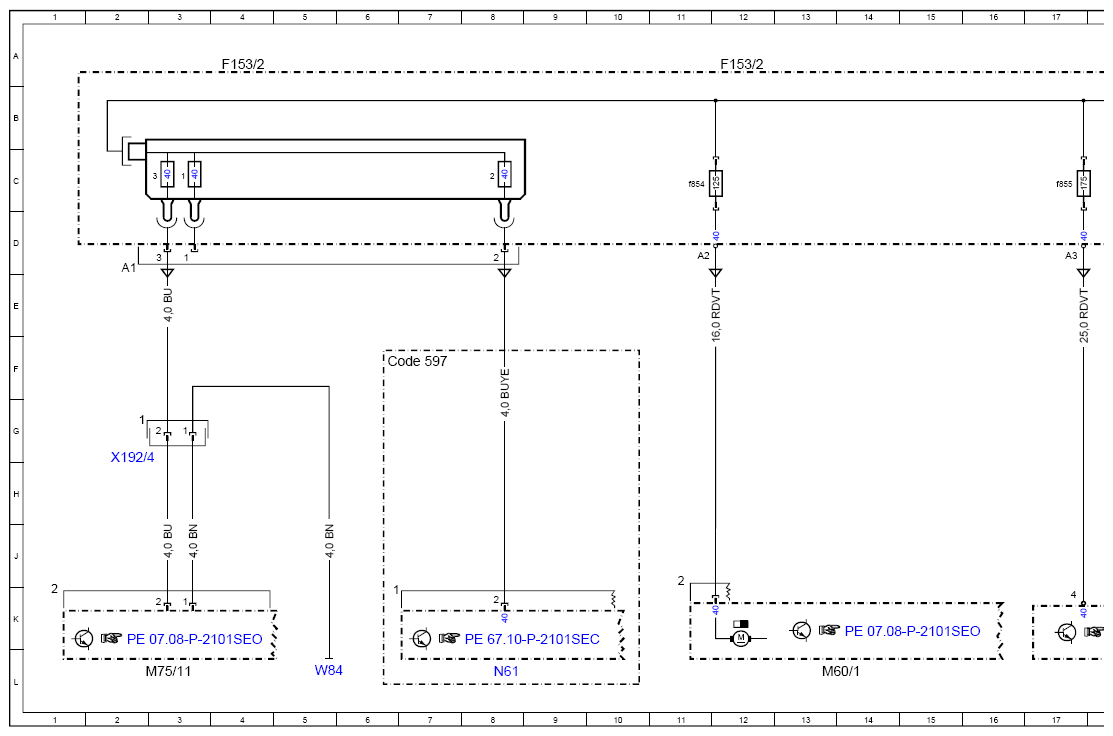

Wiring Diagram For 48 V On-Board Electrical System Engine Compartment Fuse Box - PE54.15-P-2518-97SEA
Model 222 as of model year 2018 with code B01 (48V technology) Fuse box F153/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A9/5 | Electric refrigerant compressor | 19L |
| Code 597 | Heated windshield | 6F |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 25F |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 30F |
| F153/2 | Engine compartment 48V fuse box | 4A |
| F153/2 | Engine compartment 48V fuse box | 12A |
| F153/2 | Engine compartment 48V fuse box | 28A |
| F153/2 | Engine compartment 48V fuse box | 20A |
| F153/2f854 | Electrical fuse 854 | 11C |
| F153/2f855 | Electrical fuse 855 | 17C |
| F153/2f856 | Electrical fuse 856 | 18C |
| G1/3 | 48 V on-board electrical system battery | 23L |
| M1/10 | Starter-alternator | 32L |
| M60/1 | Electric additional compressor | 13L |
| M75/11 | Electric coolant pump | 3L |
| N129 | Starter generator control unit | 27L |
| N61 | Windshield heater control unit | 8L |
| W84 | M256 ground point (48 V) | 5L |
| X192/4 | Electric coolant pump electrical connector | 2H |
