Check Charging Cable And Vehicle Socket - AP54.10-P-5458B
Model 166.063, 167.117/317, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/211/216/253, 222.163/173, 242.890, 253.311/353/354/911/953/954
Model 167.154/354 except code 830 (China version)

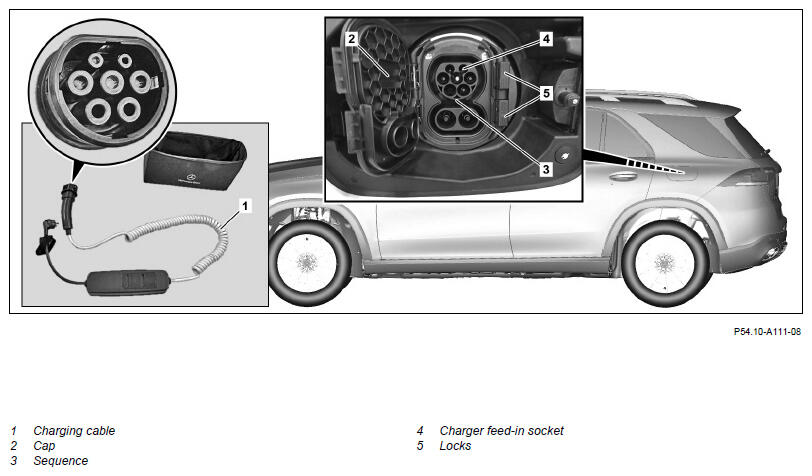

Shown on model 166.063, valid for model 166.063, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/211/216/253, 222.163/173, 253.311/353/354/911/953/954

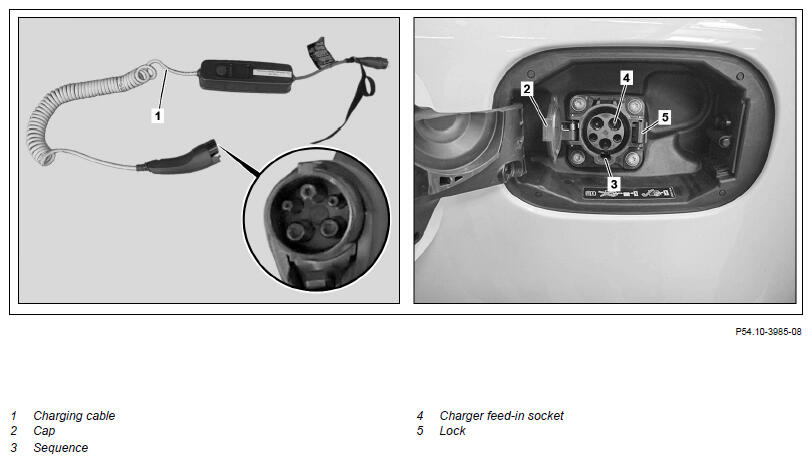

Shown on model 242.890, valid for model 242.890

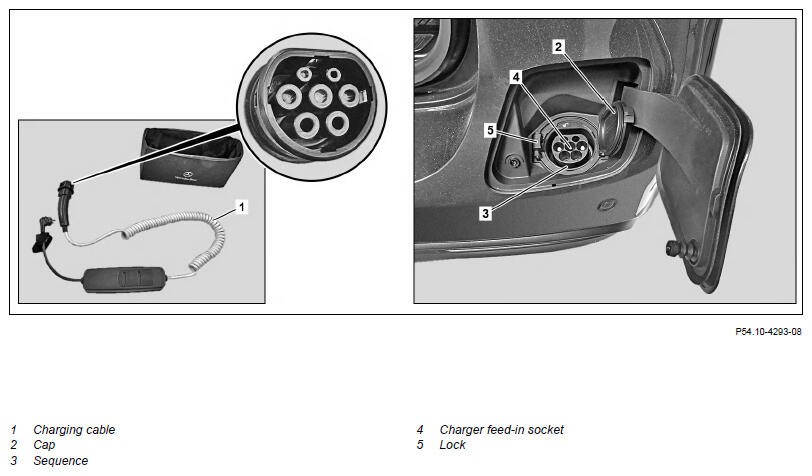

Shown on model 167.154 except code 830 (China version), valid for model 167.117/317 and model 167.154/354 except code 830 (China version)
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Topical note | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove charging cable (1) from vehicle. | ||
| Check | |||
| 2 | Check entire length of charging cable (1), plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If problems are determined, ↓ replace charging cable (1). |
|
| Install | |||
| 3 | Place charging cable (1) in vehicle. | ||
| Check | |||
| 4 | Check charger feed socket (4) for damage. | If problems are determined, ↓ Replace charger feed socket (4). |
|
| 5 | Check that cap (2) is firmly seated on charger feed socket (4). | If problems are determined, ↓ Replace charger feed socket (4). |
|
| 6 | Check drain (3) for clear passage and soiling. | Remove any soiling. This is because water must not collect in the charger feed socket (4) area. If problems are determined, ↓ rectify the problems. |
|
| 7 | Check locks (5) by opening and closing the cap (2). | If problems are determined, ↓ Replace charger feed socket (4). |
