Sketch Sheet Form For Paint Damages - Of98.00-P-3000-01TA
MODEL 222
| Service outlet/Operation no. |
Customer |
| Vehicle identification number
Repair job no. |
| Tester: Name Date |
| License plate number Initial registration Model Engine no. Odometer reading: km/miles |
Store paint sketch sheets so that they are safe from revision!
| Description of damage and probable cause |
MB color shade |
| Damage inflicted while driving (e.g.: accident, dents, scratches, stone chipping, etc.) are to be specified separately. |
| When was damage noticed? |
_________________________________________________ |
| State of paintwork |
□ Maintained □ Neglected |
| Required remedial action |
Cost estimate Wage Material
_________________________________
Total |
| Comments of Warranty Department |
|
 Courtesy of MERCEDES-BENZ USA
|

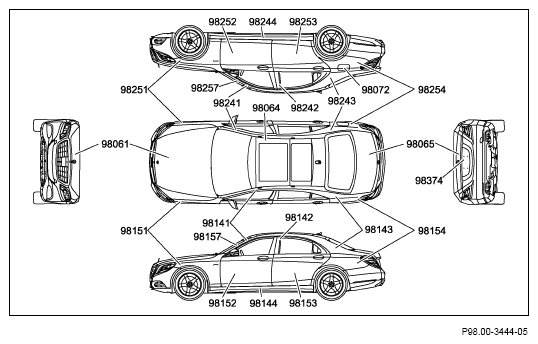

| Paint |
Damaged part text |
Corrosion |
Paint |
Damaged part text |
Corrosion |
| 98061 |
Engine hood |
88201 |
98153 |
Left rear door |
73A01 |
| 98064 |
Roof |
65001 |
98154 |
Left rear fender |
63C11 |
| 98065 |
Trunk lid |
75001 |
98157 |
Left A-pillar trim piece |
|
| 98072 |
Fuel filler flap |
75101 |
98241 |
Right A-pillar |
63P11 |
| 98081 |
Body, general |
|
98242 |
Right B-pillar |
63P21 |
| 98084 |
Engine compartment |
|
98243 |
Right C-pillar |
63P31 |
| 98085 |
Underfloor protection |
|
98244 |
Right entrance |
|
| 98086 |
Underfloor wax preservation |
|
98251 |
Right front fender |
88N01 |
| 98141 |
Left A-pillar |
63B11 |
98252 |
Right front door |
|
| 98142 |
Left B-pillar |
63B21 |
98253 |
Right rear door |
63N01 |
| 98143 |
Left C-pillar |
63B31 |
98254 |
Right rear fender |
|
| 98144 |
Left entrance |
|
98257 |
Right B-pillar trim piece |
|
| 98151 |
Left front fender |
88A01 |
98310 |
Engine compartment wax preservation |
|
| 98152 |
Left front door |
72A01 |
98314 |
Trunk/cargo area |
|
| |
|
|
98374 |
Trunk lid handle license plate lamp cover |
75027 |
 Courtesy of MERCEDES-BENZ USA
|

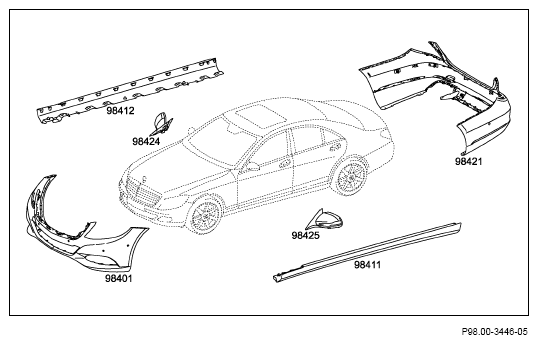

| Paint |
Damaged part text |
Corrosion Paint |
Damaged part text |
Corrosion |
| 98401 |
Front bumper paneling |
98421 |
Rear bumper paneling |
|
| 98411 |
Outside left side member trim |
98424 |
Right outside mirror |
|
| 98412 |
Outside right side member trim |
98425 |
Left outside mirror |
|
| Paint |
Damaged part text |
Paint |
Damaged part text |
| K1 |
Dust/dirt inclusion |
L6 |
Blisters |
| K2 |
Rotor |
L7 |
Orange peel development/structure |
| K3 |
Color deviation |
L8 |
Grinding scoring |
| K4 |
Cloudy |
L9 |
Polishing marks |
| K6 |
Edge zone marking |
LA |
Abrasion |
| K7 |
Defects |
LB |
Fading |
| K9 |
Adhesion faults |
LD |
Insufficient hiding power |
| L1 |
Mask edges |
Y4 |
Separation of the outer and inner surfaces from the core |
| L2 |
Cracks |
Y6 |
Popping |
| L3 |
Preservation residue |
Y7 |
Crater |
| L4 |
Overspray |
|
|
