Remove Mounting Brackets On Suspension Strut Tower - Ar62.20-P-1232-05LFS

Model 222

with code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

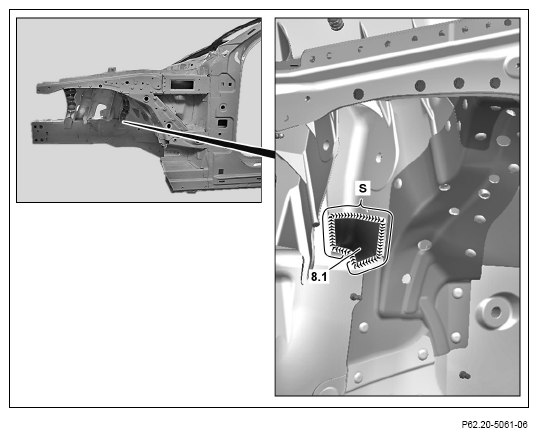

1. Expose weld seams on front mounting console (8.1) and cut (area S).
2. Remove mounting console (8.1).

   Courtesy of MERCEDES-BENZ USA

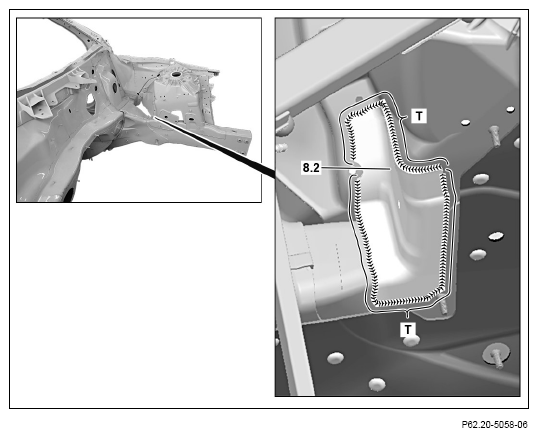

3. Expose weld seams on front mounting console (8.2) and cut (areas T).
4. Remove mounting console (8.2).

   Courtesy of MERCEDES-BENZ USA

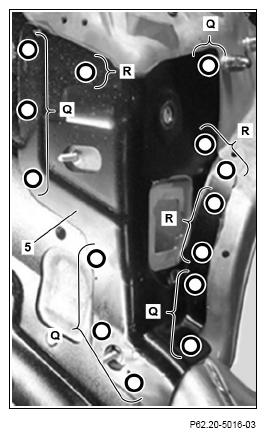

5. Expose self-piercing rivet on mounting console (5) and drill with Ø 6.5 mm bit (areas Q, R).

   Courtesy of MERCEDES-BENZ USA

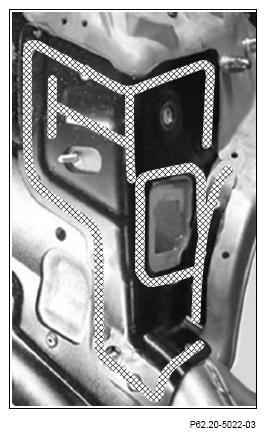

6. Heat mounting console in crosshatched area.

   Cross-hatched area is bonded.

7. Remove mounting console.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on all removed mounting consoles

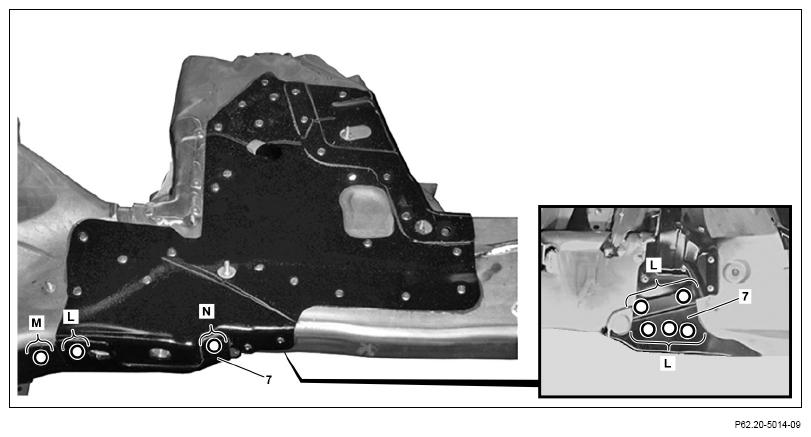

8. Expose self-piercing riveting on mounting console (7) and drill with Ø 6.5 mm bit (areas L, M and N).

   Courtesy of MERCEDES-BENZ USA

   Shown on all removed mounting consoles

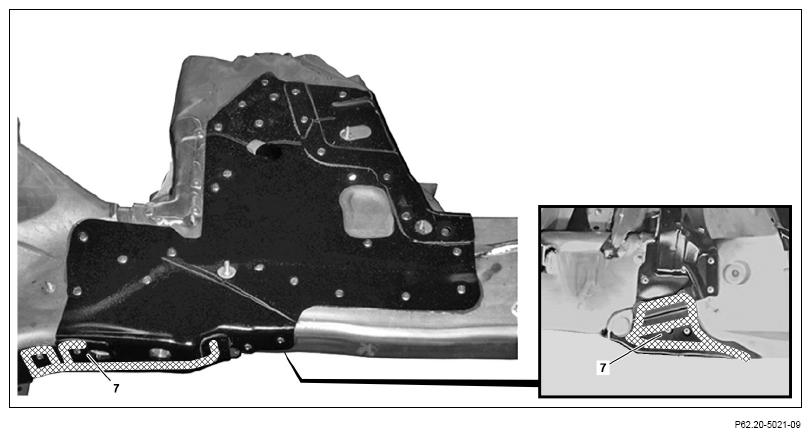

9. Heat mounting console (7) in crosshatched area.
10. Remove mounting console (7).

    Cross-hatched area is bonded.

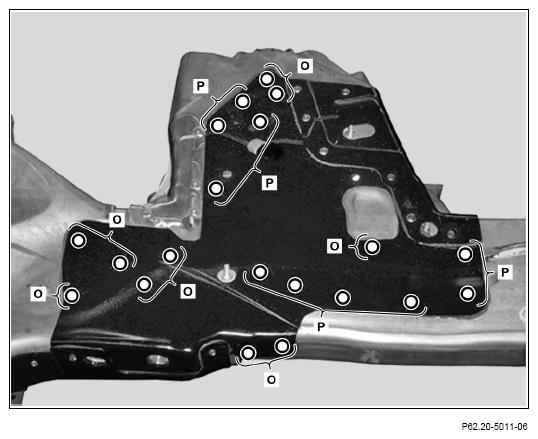

11. Expose self-piercing rivet on mounting console and drill with Ø 6.5 mm bit (areas O, P).
12. Heat mounting console over full surface.

    Mounting console is glued over full surface.

13. Remove mounting console.

    Shown on all removed mounting consoles

    Courtesy of MERCEDES-BENZ USA

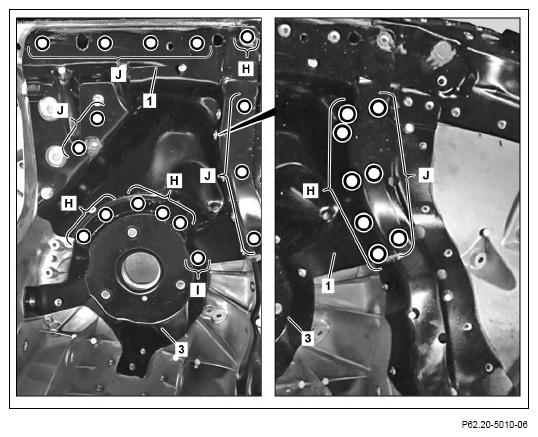

14. Expose self-piercing rivet on mounting console (1) and drill with Ø 6.5 mm bit (areas I, J and H).

    Courtesy of MERCEDES-BENZ USA

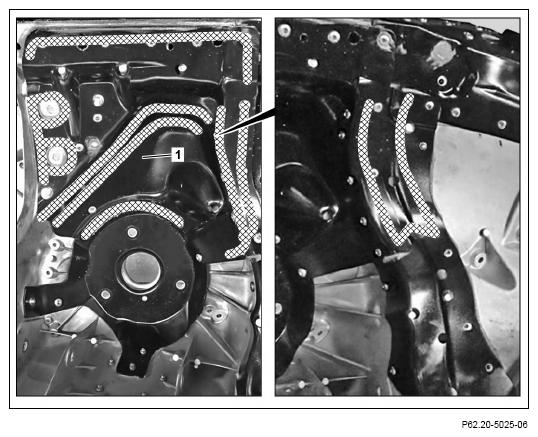

15. Heat mounting console (1) in crosshatched area.

    Cross-hatched area is bonded.

16. Remove mounting console (1).

    Courtesy of MERCEDES-BENZ USA

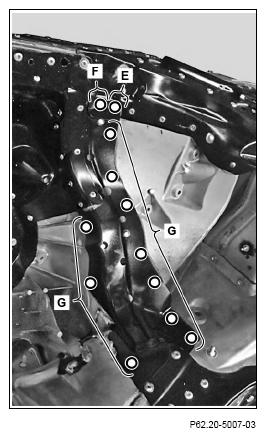

17. Expose self-piercing rivet on mounting console and drill with Ø 6.5 mm bit (areas E, F and G).

    Shown on all removed mounting consoles

    Courtesy of MERCEDES-BENZ USA

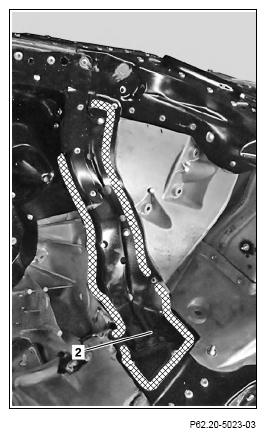

18. Heat mounting console (2) in crosshatched area.

    Cross-hatched area is bonded.

19. Remove mounting console (2).

    Shown on all removed mounting consoles

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on all removed mounting consoles

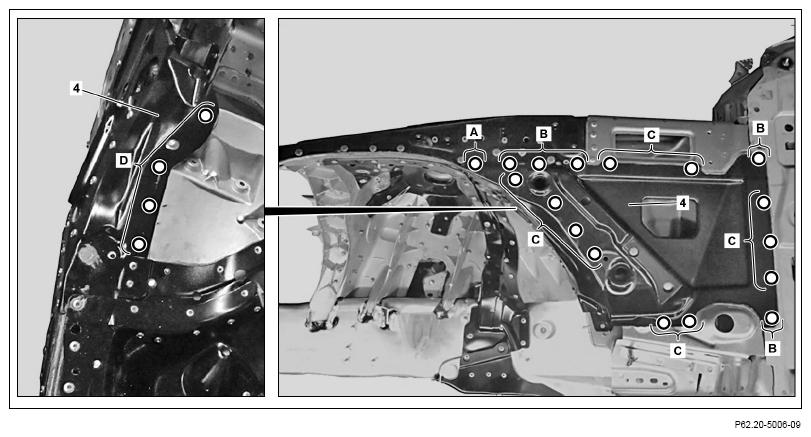

20. Expose self-piercing rivet on mounting console (4) and drill with Ø 6.5 mm bit (areas A, B, C and D).

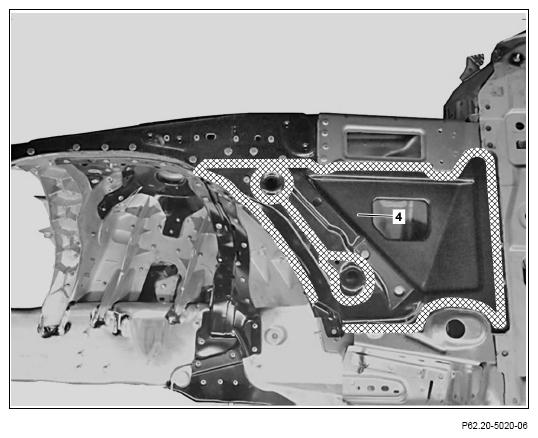

21. Heat mounting console (4) in crosshatched area.

    Cross-hatched area is bonded.

22. Remove mounting console (4).

    Shown on all removed mounting consoles

    Courtesy of MERCEDES-BENZ USA

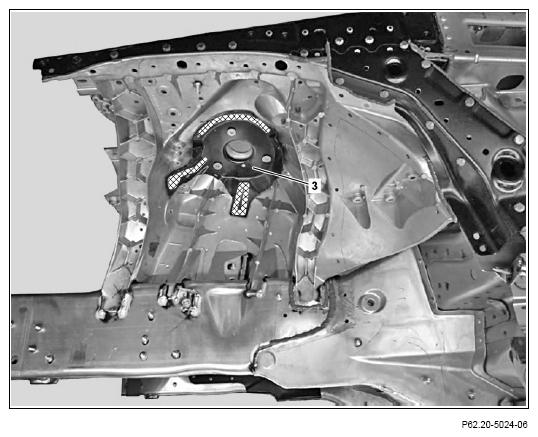

23. Heat mounting console (3) in crosshatched area.

    Cross-hatched area is bonded.

24. Remove mounting console (3).

Courtesy of MERCEDES-BENZ USA
