Prepare Mounting Brackets On Suspension Strut Tower For Installation - Ar62.20-P-1232-06LFS

Model 222

with code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

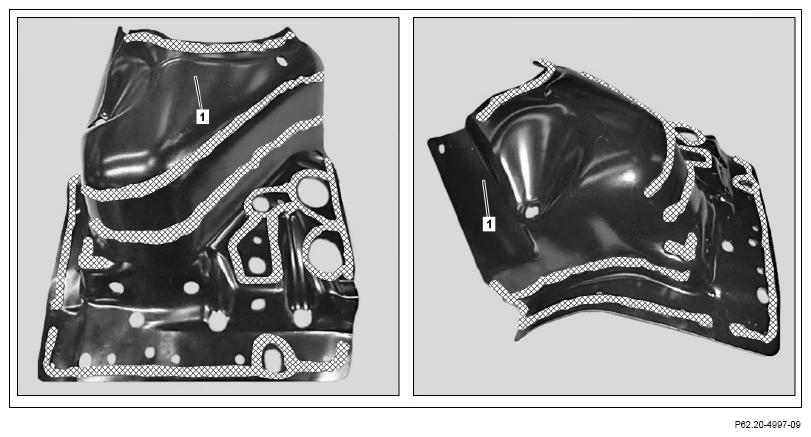

1. Grind mating surfaces on mounting console (1) down to bare metal in the crosshatched areas.
2. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

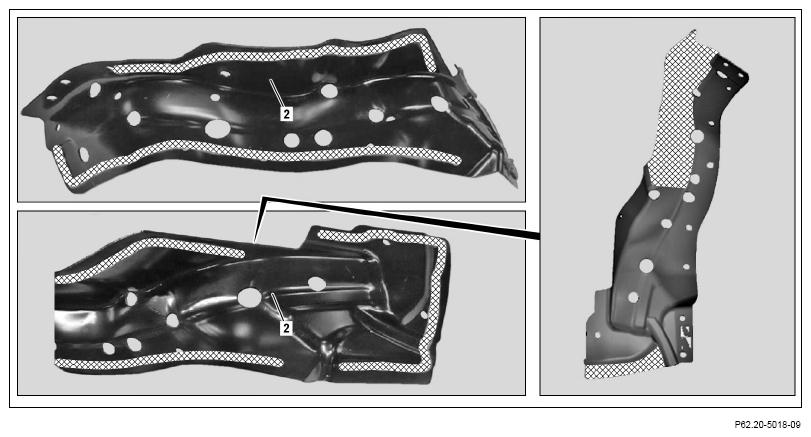

3. Grind mating surfaces on mounting console (2) down to bare metal in crosshatched areas.
4. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

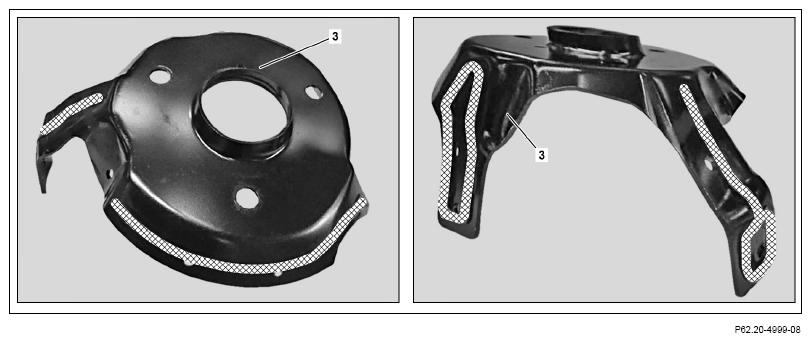

5. Grind mating surfaces on mounting console (3) down to bare metal in the crosshatched areas.
6. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

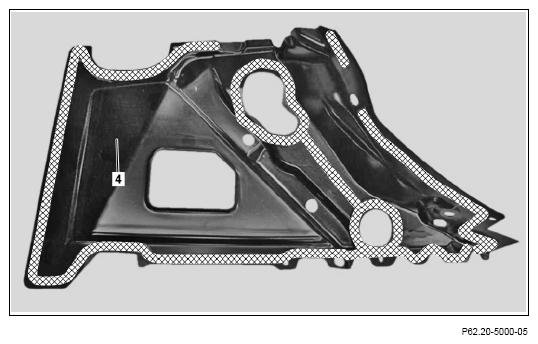

7. Grind mating surfaces on mounting console (4) down to bare metal in the crosshatched areas.
8. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

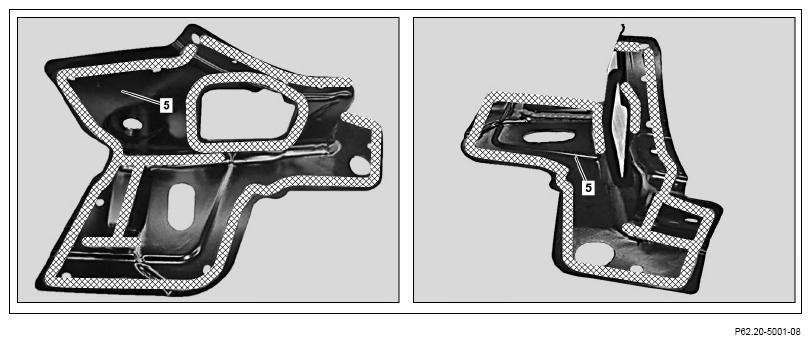

9. Grind mating surfaces on mounting console (5) down to bare metal in crosshatched areas.
10. Remove grinding dust.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

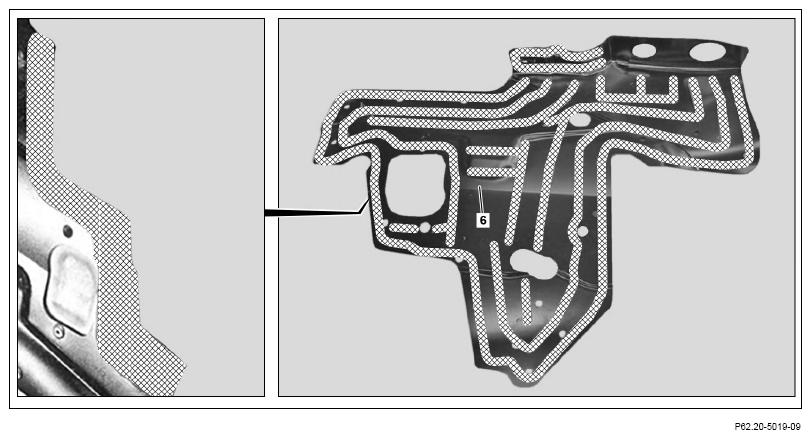

11. Grind mating surfaces on mounting console (6) down to bare metal in crosshatched areas.
12. Remove grinding dust.

    Observe pretreatment of bonding surfaces.

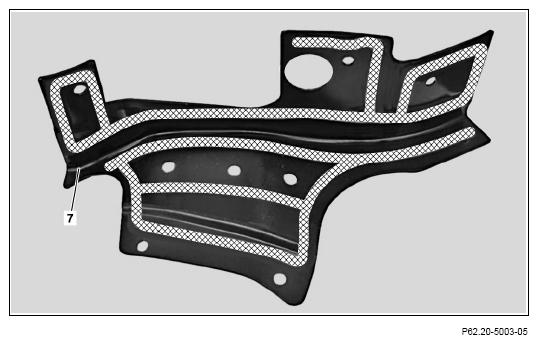

13. Grind mating surfaces on mounting console (7) down to bare metal in crosshatched areas.
14. Remove grinding dust.

    Observe pretreatment of bonding surfaces.
