Remove/Install Electric Parking Brake Switch - AR42.20-P-0505LF

Model 217, 222

Shown on model 222

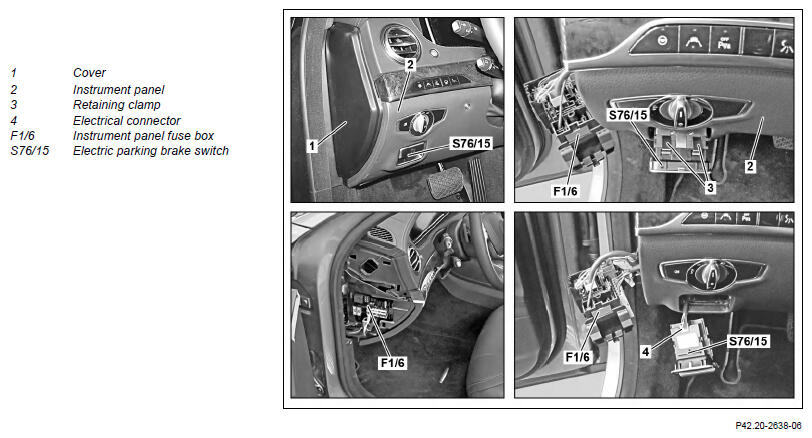

Fig 1: Electric Parking Brake Switch Components Location - Model 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Unclip left cover (1) from instrument panel (2) and remove	Mounting wedge	Fig 2
3	Unclip instrument panel fuse box (F1/6) and place to one side
4	Unclip retaining clips (3) and remove electric parking brake switch (S76/15) from instrument panel (2)
5	Disconnect electrical connection (4) and remove electric parking brake switch (S76/15)
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
