Remove/Install Electric Parking Brake Control Unit - AR42.20-P-0610LF
Model 217.3, 222 up to model year 2018

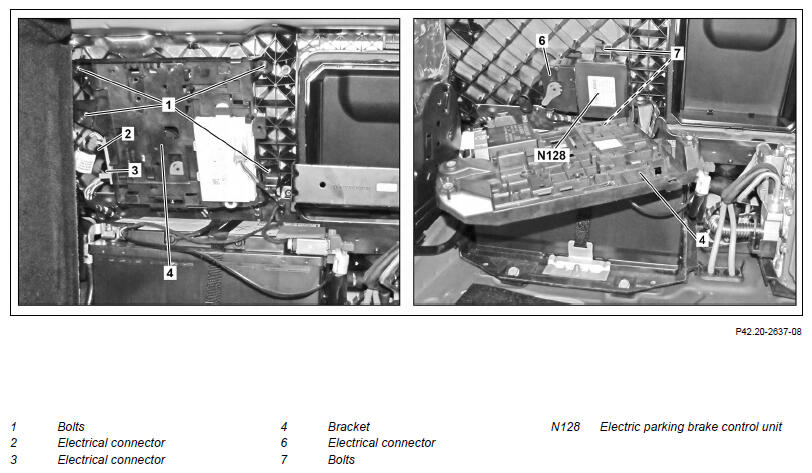

Shown on model 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove trim from front of luggage compartment rear panel | Model 217.3 up to model year 2018 | AR68.30-P-4600LC |
| Model 222.0/1 up to model year 2018 | AR68.30-P-4600LF | ||
| 2 | Remove bolts (1) | ||
| 3 | Disconnect electrical connectors (2, 3) | ||
| 4 | Fold bracket (4) to the rear | ||
| 5 | Unscrew screws (7) and remove electric parking brake control unit (N128) | ||
| 6 | Disconnect electrical connector (6) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform commissioning of electric parking brake control unit (N128) | When replacing the electric parking brake control unit (N128). | |
| AD00.00-P-2000-04B |
