Remove/Install Electric Parking Brake Actuator Motor - AR42.20-P-0600LF
Model 217, 222

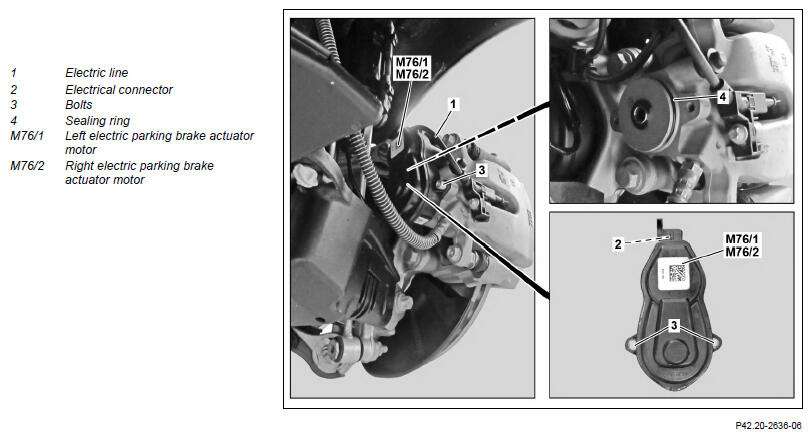

Shown on model 222
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Detach corresponding complete wheel | AR40.10-P-1102A | |
| 3 | Unhook electric line (1) from right electric parking brake actuator motor (M76/2) | When removing right electric parking brake actuator motor (M76/2) | |
| 4 | Detach electrical connector (2) from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) | ||
| 5 | Unscrew bolts (3) and remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) | *BA42.10-P-1005-12J | |
| 6 | Install in the reverse order | ||
| 7 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 217 | Model 222 | |
|---|---|---|---|---|
| BA42.10-P-1005-12J | Bolt, actuator motor to brake caliper | Nm | 11 | 12 |
