(Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1600RKK)

Model 217.377/378/379

with code B07 (AMG - ceramic brake system)

Model 222.177/178/179

with code B07 (AMG - ceramic brake system)

Model 231.474/479

with code B07 (AMG - ceramic brake system)

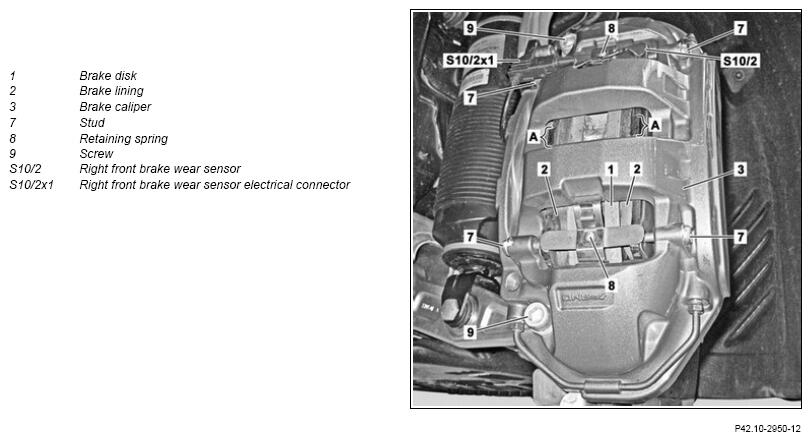

Shown on model 222 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

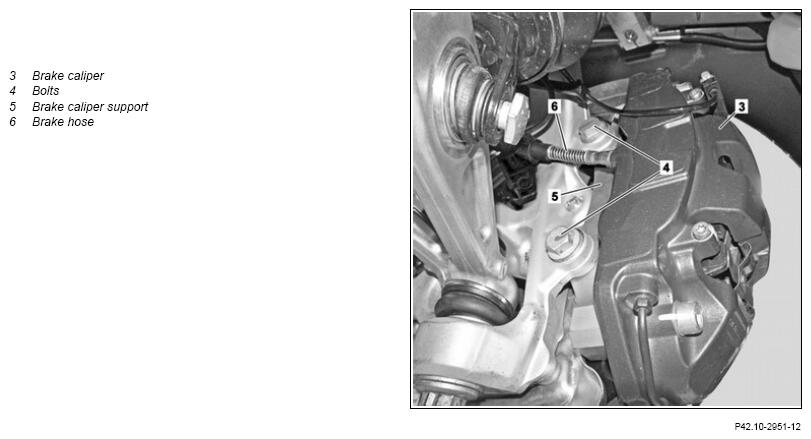

Shown on model 222 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

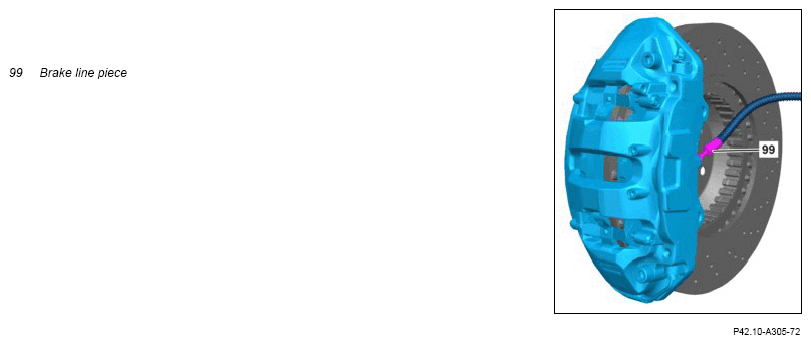

Shown on model 222

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on installing brake wear indicator contact sensors		AH42.10-P-0003-01CW
	Remove/install
1	Remove cover over brake fluid reservoir.	Install cover only after checking brake fluid level.
2	Clean area around cap of brake fluid reservoir.	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove cap of brake fluid reservoir and suction off some brake fluid.	This prevents the brake fluid reservoir overflowing when the brake piston is pushed back.
4	Remove front wheel and tire assemblies.	Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system)	AR40.10-P-1102A
		Model 231.474/479 with code B07 (AMG - ceramic brake system)	AP40.10-P-4050EW
	Check
5	Check brake linings (2) for wear and condition.
		Model 231.474/479 with code B07 (AMG - ceramic brake system)	AP42.10-P-4252RK
		Model 217.377/378/379 with code B07 (AMG - ceramic brake system)	AP42.10-P-4252C
		Model 222.177/178/179 with code B07 (AMG - ceramic brake system)	AP42.10-P-4252HA
6.1	Check condition of brake disks (1).	Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system) If there is a problem, ↓ replace brake disks (1).	AR42.10-P-0270RG
6.2	Check condition of brake disks (1).	Model 231.474/479 with code B07 (AMG - ceramic brake system) If there is a problem, ↓ replace corresponding brake disk (1).	AR42.10-P-0270RG
7	Release and disconnect right front brake lining wear sensor electrical connector (S10/2x1).	Only when removing brake linings (2) on right side.
8	Press back brake pistons with pusher tool.	Attach pusher tool to the elevations (A) of the brake linings (2). Secure remaining brake pistons to prevent them slipping out. Resetting device	Fig 1
		Wedge If there is a problem, ↓ Replace brake caliper (3).	Fig 2
		Model 231.474/479 with code B07 (AMG - ceramic brake system)	AR42.10-P-0070RK
		Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system)	AR42.10-P-0070LF
9	Remove screws (4) then remove brake caliper support (5) together with brake caliper (3).	Do not unscrew screws (9) completely. Do not separate brake caliper (3) and brake caliper support (5). Otherwise an optimum alignment of the brake caliper (3) to the brake disk (1) can no longer be guaranteed, which results in higher wear and an incorrect contact pattern. Replace screws (4). Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system) Bolt, brake caliper to steering knuckle	*BA42.10-P-1001-10V
		Model 231.474/479 with code B07 (AMG - ceramic brake system) Screw/bolt, brake caliper support to steering knuckle	*BA42.10-P-1002-10U
10	Remove brake caliper (3) and secure to vehicle free of tension.	Do not crush, kink or stretch brake hoses (6) and brake lines. This leads to damage to the brake hoses (6) and brake lines, and it can impair their function. Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system) The brake line pieces (99) of the brake hoses (6) must not be bent. Replace the affected brake hoses (6) with damaged brake line pieces (99) immediately. Do not damage paint of brake caliper (3). If brake line piece (99) is damaged, ↓ replace affected brake hose (6). Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system)	AR42.10-P-0013LF
11	Remove brake linings (2) from brake caliper (3).	Do not apply brake pastes or other lubricants to brake linings (2) and brake caliper (3). Malfunctions may occur otherwise. Do not release or pull out the studs (7), push brake linings (2) against force of retaining springs (8) of the studs (7). Only sets of brake linings (2) approved by Mercedes-Benz may be installed.
	Check
12	Check brake caliper (3) and dust boots for leak tightness.	If there is a problem, ↓ Replace brake caliper (3). Model 231.474/479 with code B07 (AMG - ceramic brake system)	AR42.10-P-0070RK
		Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system)	AR42.10-P-0070LF
13	Check retaining springs (8).	If there is a problem, ↓ Replace retaining springs (8).
	Clean
14	Clean contact surfaces of brake linings (2) on brake caliper (3).	Do not use sharp-edged or pointed objects. Otherwise, the brake caliper (3) or the dust boot on the brake piston may be damaged. Assembly cleaner	*BR00.45-Z-1028-04A
15	Pull right front brake lining wear sensor (S10/2) out of backing plate of brake lining (2).	Only when removing brake linings (2) on right side.
16	Install in the reverse order.
	Concluding tasks
17	Press brake pedal several times until brake linings (2) lie up against brake disks (1).	Firm resistance should be noticeable at the brake pedal.
18	Check/correct brake fluid level in brake fluid reservoir.
		Model 217.377/378/379 with code B07 (AMG - ceramic brake system) Model 222.177/178/179 with code B07 (AMG - ceramic brake system)	AP42.10-P-4210HA
		Model 231.474/479 with code B07 (AMG - ceramic brake system)	AP42.10-P-4210V
	Risk of death  caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand	Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand.	AS42.00-Z-0001-01A
19	Perform brake test on test stand.
			AP42.00-P-4290BA

Fig 1: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wedge (601 589 07 63 00)

Courtesy of MERCEDES-BENZ USA
