Overview Of System Components For Electric Parking Brake - GF42.20-P-9998LF
Model 217, 222

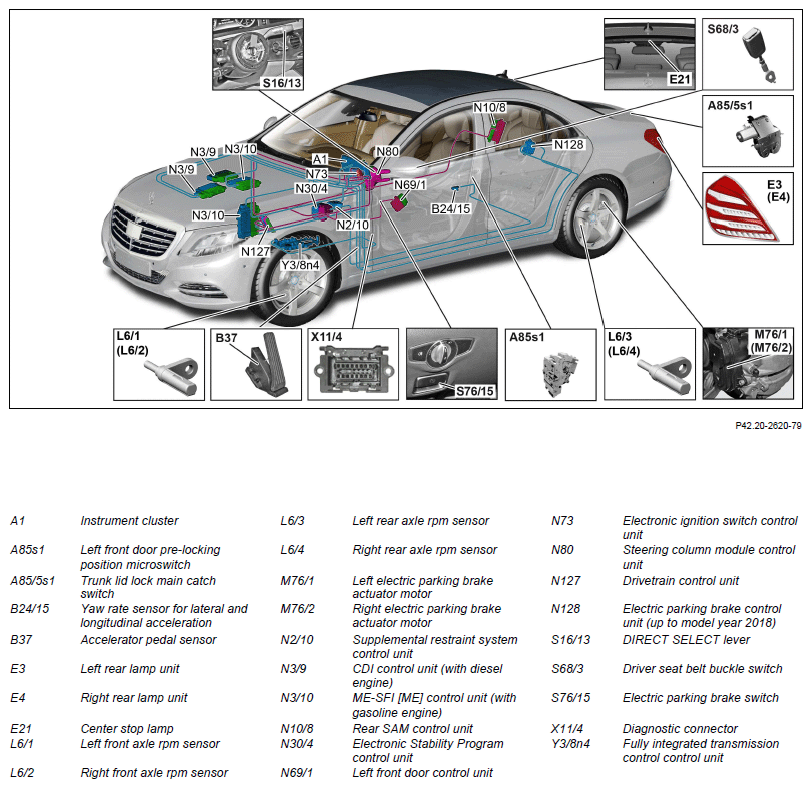

Shown on model 222 up to model year 2018

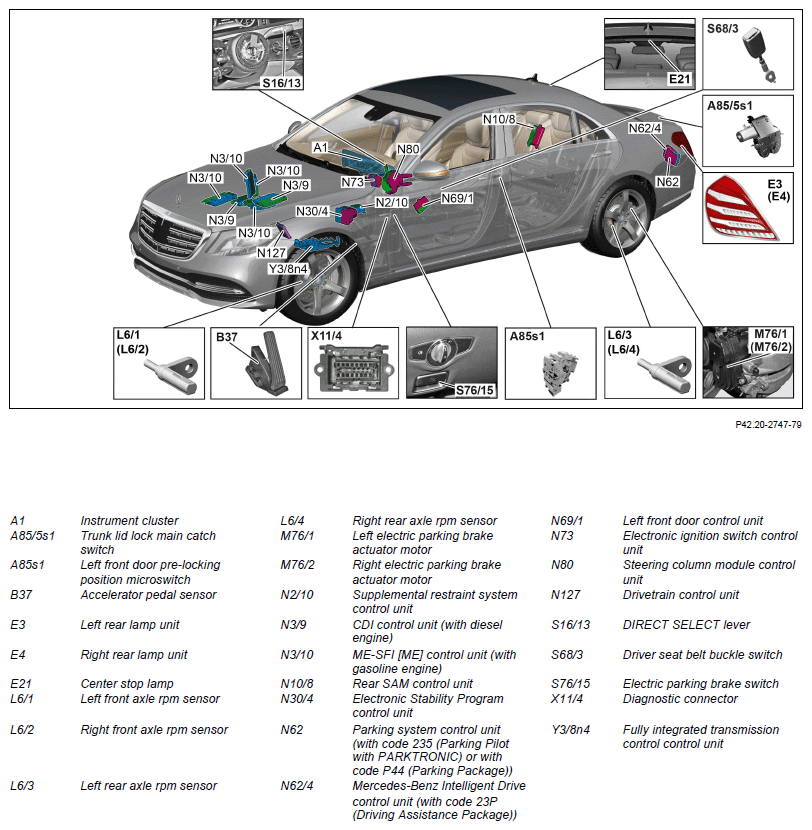

Shown on model 222 as of model year 2018
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 | GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 | GF54.30-P-6000LFM | ||
| Component description for yaw rate sensor for lateral and longitudinal acceleration | Model 217, 222 up to model year 2018 B24/15 | GF42.45-P-4810LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 | GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 | GF07.16-P-6000 (DLA | ||
| Model 222 with engine 656.9 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 217 with engine 176.9, 177.9 Model 222 with engine 176.9, 177.9 N3/10 |
GF07.61-P-6000MNL | |
| Model 222 with engine 256.9 N3/10 | GF07.61-P-6000MRT | ||
| Model 217, 222 with engine 276.8 N3/10 | GF07.61-P-6000MMT | ||
| Model 222 with engine 276.9 N3/10 | GF07.61-P-6000MMK | ||
| Model 217, 222 with engine 157.9, 278.9 N3/10 | GF07.61-P-6000MML | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Model 222 with engine 264.9 N3/10 | GF07.61-P-6000MRK | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 | GF42.45-P-5119LF | |
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 | GF42.45-P-5119LFM | ||
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 | GF42.45-P-5119LFH | ||
| Model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119LFA | ||
| Parking system control unit, component description | Model 217 as of model year 2018 Model 222 as of model year 2018 with code 235 (Parking Pilot with PARKTRONIC) N62 |
GF54.65-P-5004LFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 up to model year 2018 N80 | GF54.21-P-6051LF | |
| Model 217, 222 as of model year 2018 N80 | GF54.21-P-6051LFM | ||
| Drivetrain control unit, component description | Model 222 with engine 276.9 Model 222.163/173 with engine 276.8 N127 |
GF54.21-P-2141MMK | |
| Model 222 with engine 642.8 N127 Model 217 with engine 176.9, 177.9 |
GF54.21-P-2141OGS | ||
| Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9 N127 |
GF54.21-P-2141LF | ||
| Model 222 with engine 651.9 N127 | GF54.21-P-2141OLA | ||
| Model 222 with engine 656.9 N127 | GF54.21-P-2141OIA | ||
| Electric parking brake control unit, component description | Model 217, 222 up to model year 2018 N128 | GF42.20-P-5005LF | |
| Component description for fully integrated transmission control unit | Model 222 with transmission 724.2 up to model year 2018 Y38n4 | GF27.60-P-5165LFH | |
| Model 217, 222 with transmission 722.931/97' Y38n4 | GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 Y38n4 | GF27.60-P-5165AHY | ||
| Model 217, 222 with transmission 722.9 (except 722.931/932/971) Y38n4 | GF27.60-P-5165AHB | ||
| Model 217, 222 with transmission 725.0 (except 725.017/066/096) Y38n4 | GF27.60-P-5165AND | ||
| Table of contents for function description, electric parking brake | GF42.20-P-0999LF |
