Remove/Install Door Frame Seal - AR72.10-P-2120LFS
Model 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||

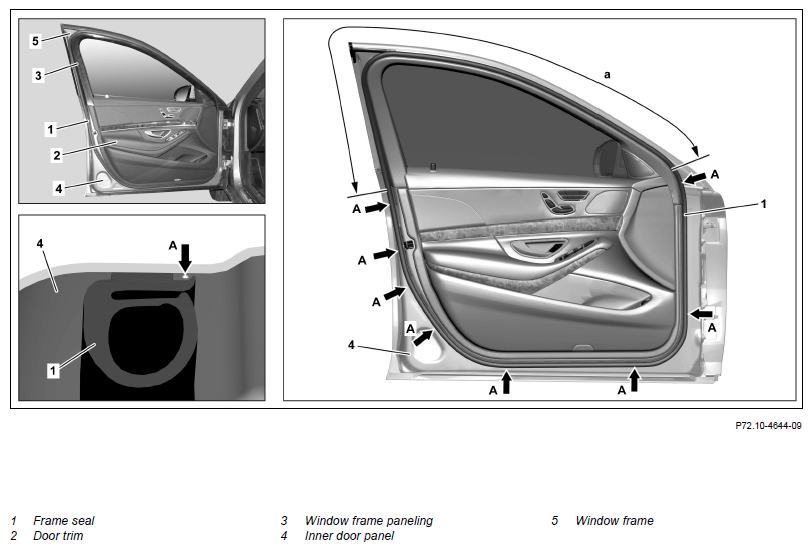

| 1 | Loosen the door paneling (2) at the top, in the area around the A-pillar until the window frame paneling (3) unclipped and the sealing frame (1) is exposed | AR72.10-P-1000LF | |
| 2 | Unclip window frame paneling (3) | Fig 2 | |
| 3 | Remove retaining clips remaining in window frame (5) and install them in window frame paneling (3) | Fig 2 | |
| 4 | Detach the sealing frame (1) | ||
| 5 | Remove glue residues from front door and clean bonding surface using adhesive and stripe removal disc | ||
| Topical note | Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | AH00.00-P-0013-01AK | |
| Cleaner | *BR00.45-Z-1025-04A | ||
| Install | |||

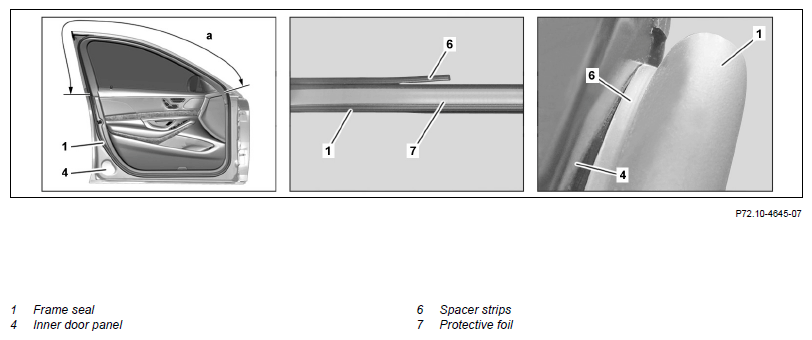

| 6 | Loosen the spacer strip (6) at the end of the new sealing frame (1) approx. 2 cm | ||
| 7 | Remove protective foil (7) in increments and glue sealing frame (1) to inner door panel (4) starting at center of bottom side of door | ||
| 8 | Determine protrusion of sealing frame (1) at bottom of door and cut off | ||
| 9 | Assemble both ends of sealing frame (1) | ||
| 10 | Firmly roll on sealing frame (1) with roller | Fig 1 | |
| 11 | Completely remove spacer strips (6) from sealing frame (1) starting at detached end | ||
| 12 | Apply lubricant to side window seal (3) in assembly area of window frame paneling (3) | Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A |
| 13 | Clip in window frame paneling (3) | ||
| 14 | Fasten door paneling (2) | AR72.10-P-1000LF |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
