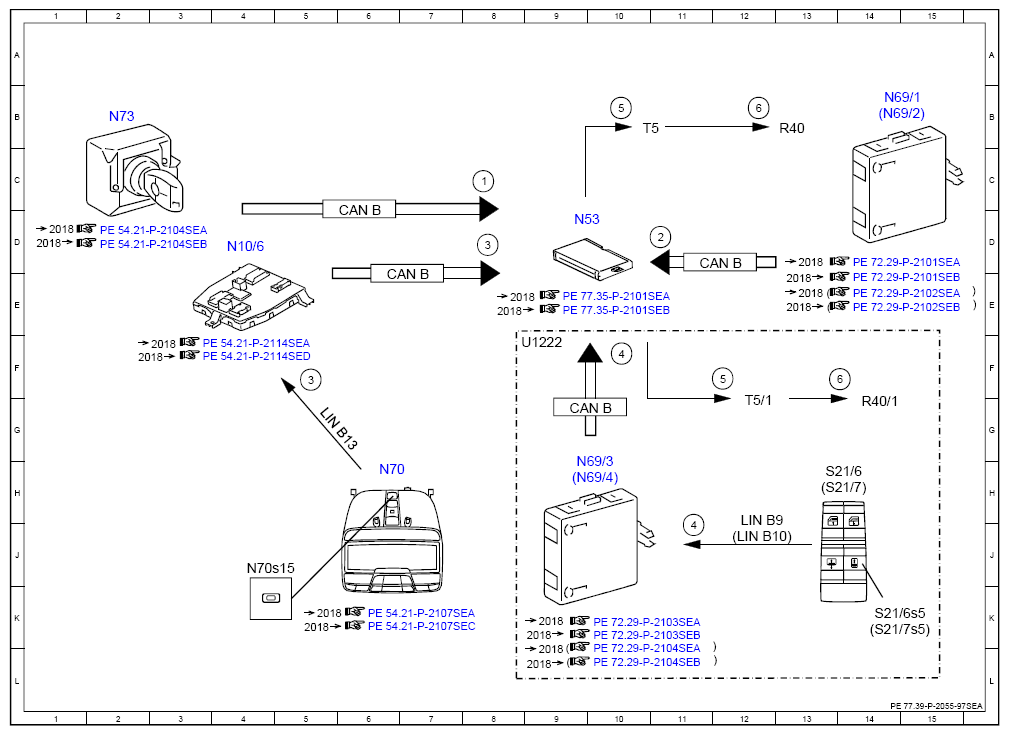

Electrical Function Schematic For MAGIC SKY CONTROL - PE77.39-P-2055-97SEA
Model 217.3 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8C |
| 2 | Main locking position microswitch, status | 11D |
| 3 | MAGIC SKY CONTROL roof switch, status | 5F |
| 3 | MAGIC SKY CONTROL roof switch, status | 8D |
| 4 | Rear MAGIC SKY CONTROL roof switch, status | 10F |
| 4 | Rear MAGIC SKY CONTROL roof switch, status | 11J |
| 5 | MAGIC SKY CONTROL high-voltage transformer, actuation | 10B |
| 5 | MAGIC SKY CONTROL high-voltage transformer, actuation | 11F |
| 6 | MAGIC SKY CONTROL roof, actuation | 12B |
| 6 | MAGIC SKY CONTROL roof, actuation | 13F |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 6D |
| LIN B10 | Right rear door LIN | 12J |
| LIN B13 | Roof LIN | 5G |
| LIN B9 | Left rear door LIN | 12J |
| N10/6 | Front SAM control unit | 4D |
| N53 | MAGIC SKY CONTROL, control unit | 9D |
| N69/1 | Left front door control unit | 14B |
| N69/2 | Right front door control unit | 14B |
| N69/3 | Left rear door control unit | 9H |
| N69/4 | Right rear door control unit | 9H |
| N70 | Overhead control panel control unit | 6H |
| N70s15 | MAGIC SKY CONTROL roof switch | 4J |
| N73 | Electronic ignition switch control unit | 2B |
| R40 | MAGIC SKY CONTROL roof | 13B |
| R40/1 | Rear roof MAGIC SKY CONTROL | 14G |
| S21/6 | Left rear door switch group | 13H |
| S21/6s5 | Rear MAGIC SKY CONTROL roof switch | 14K |
| S21/7 | Right rear door switch group | 13H |
| S21/7s5 | Rear MAGIC SKY CONTROL roof switch | 14K |
| T5 | MAGIC SKY CONTROL high-voltage transformer | 10B |
| T5/1 | Rear roof MAGIC SKY CONTROL high-voltage transformer | 12G |
| U1222 | Valid for model series 222 | 8F |
