Prepare Front Fixed Element Of Panoramic Sliding Sunroof For Installation - AR77.21-P-0803-02NKA

Model 117, 156, 176, 205, 222, 253

with code 413 (Panoramic sliding sunroof/glass roof)

Model 222

with code 398 (Panoramic roof with MAGIC SKY CONTROL)

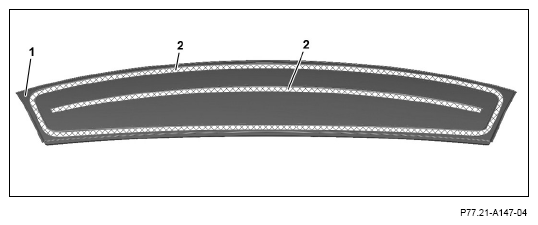

Shown on model 176 with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

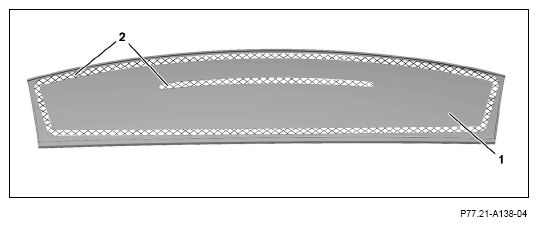

Shown on model 205 with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

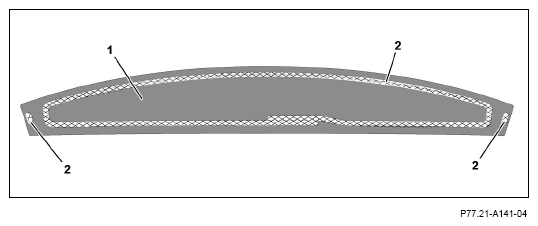

Shown on model 222 with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

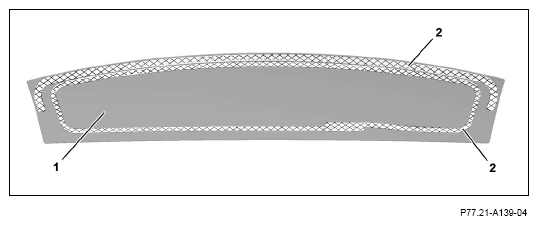

Shown on model 156 with code 413 (Panoramic sliding sunroof/glass roof) and code 700 (Vehicle production location China)

Courtesy of MERCEDES-BENZ USA

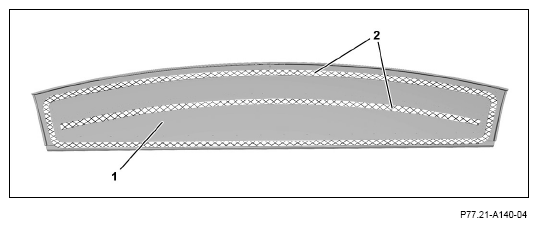

Shown on model 156 with code 413 (Panoramic sliding sunroof/glass roof) and except code 700 (Vehicle production location China)

Courtesy of MERCEDES-BENZ USA

1. Attach cup suction tools to outside of front stationary element (1) and set down front stationary element (1) on suitable base with inside facing upwards.
2. Apply cleaner to bonding surfaces (2) on inside of front stationary element (1) using part of cleaning cloth and wipe dry with other part of cleaning cloth.

   The cleaner and the cleaning cloth are included in the repair kit.

   Allow cleaner to dry completely.

3. Uniformly apply primer to bonding surfaces (2) on inside of front stationary element (1).

   Observe processing notes for primer.

   Otherwise the adhesive force of the adhesive material starts to decrease when installing window.

   The primer is included in the repair kit.

   Allow primer to dry completely.
