Overview Of System Components Of Panoramic Roof - GF77.21-P-9998LF
Model 17.3
Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
Model 222 with code 413 (Automatic panoramic sliding sunroof)

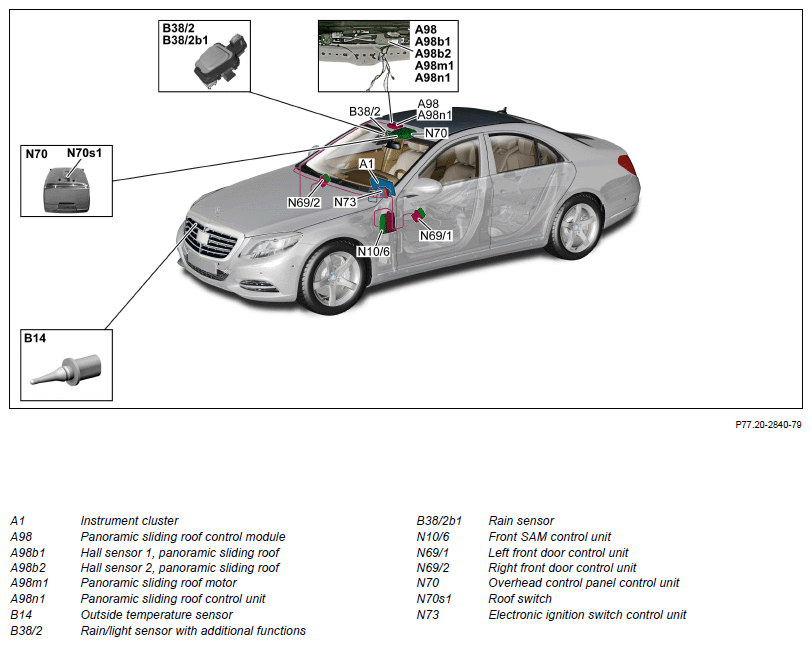

Panoramic sliding sunroof (model 222 with code 413 (Panoramic sliding sunroof))

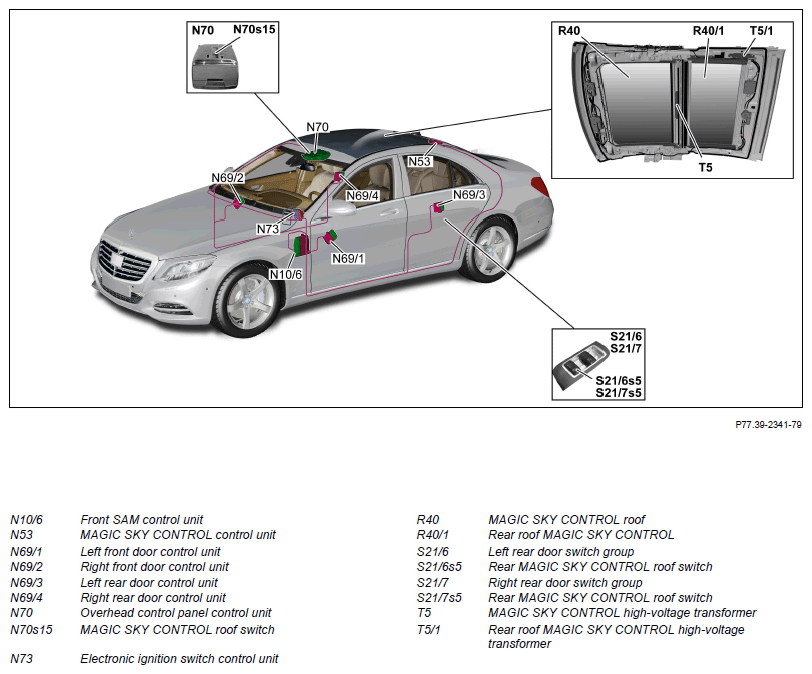

MAGIC SKY CONTROL (model 222 with Code 398 (Panoramic roof with MAGIC SKY CONTROL))

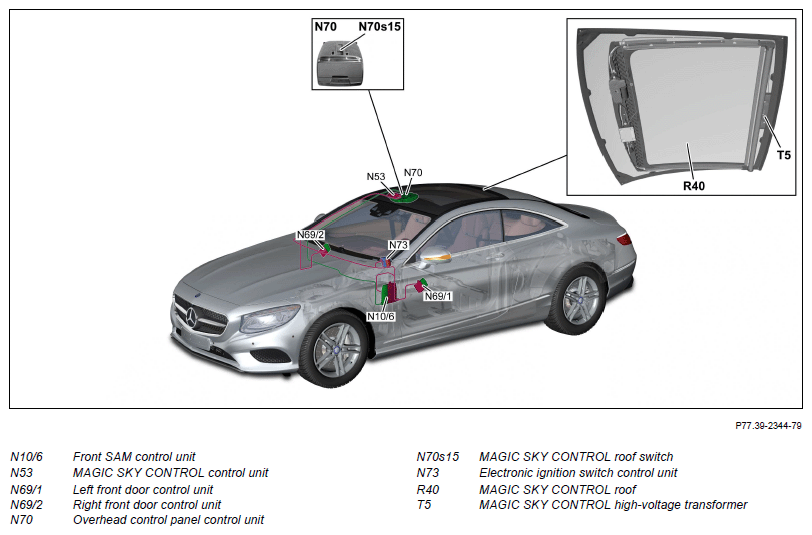

MAGIC SKY CONTROL (model 217.3 with code 398 (Panoramic roof with MAGIC SKY CONTROL))

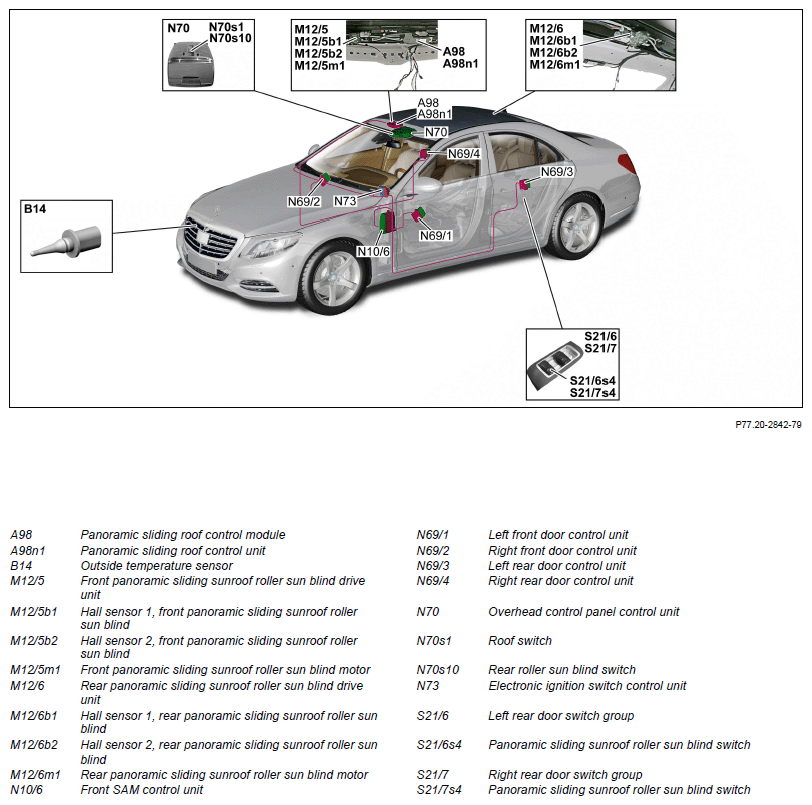

Panoramic sunroof)) roof roller sun blind (model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) or code 413 (Panoramic sliding sunroof)

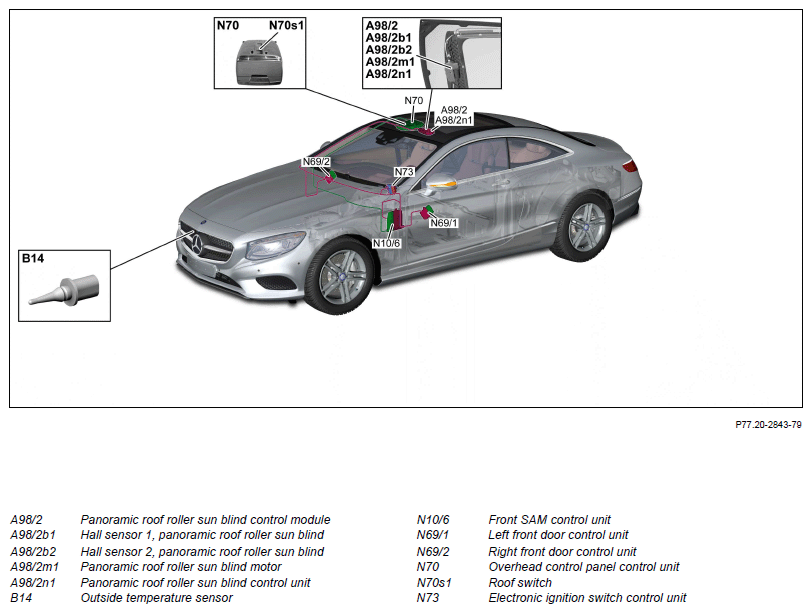

Panoramic roof roller sun blind (model 217.3)
| Component description for instrument cluster | Model 217.3 up to model year 2018 222 up to model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 up to model year 2018 with code 413 (Automatic panoramic sliding sunroof) A1 |
GF54.30-P-6000LF | |
| Model 217.3 as of model year 2018 222 as of model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 as of model year 2018 with code 413 (Automatic panoramic sliding sunroof) A1 |
GF54.30-P-6000LFM | ||
| Component description for panoramic sliding roof control module | Model 222 with code 413 (Automatic panoramic sliding sunroof) A98, A98n1 | GF77.20-P-4106LF | |
| Panoramic roof roller sun blind control module component description | Model 217.3 A98/2 | GF77.20-P-4110LF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| MAGIC SKY CONTROL, control unit, component description | Model 217.3 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) N53 |
GF77.39-P-3218LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Automatic panoramic sliding sunroof) N69/3, N69/4 |
GF72.29-P-6021LF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Table of contents, function description for panoramic roof | GF77.21-P-0999LF |
