Remove/Install Complete Sideview Mirror - AR88.70-P-9000LF
Model 222
except code Z07 (B7 armoring on special protection version)
MODIFICATION NOTES
| 10.09.2015 | Specifications on calibrating 360° camera revised. | Operation step 7 | |
| 10.09.2015 | "Check outside mirror for proper function" added. | Operation step 8 |

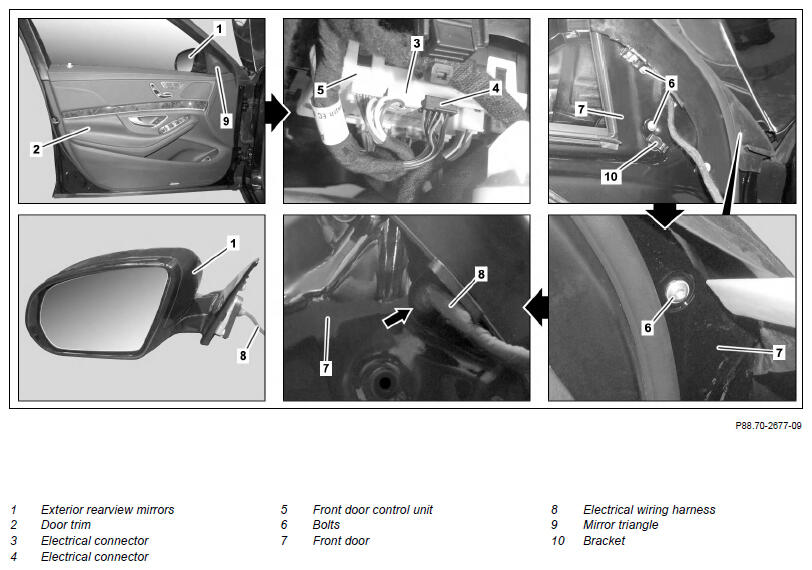

Shown on left side of vehicle
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove mirror triangle (9) on left and right front door (7) | Fig 1 | |
| 2 | Remove door trim (2) from front door (7) | AR72.10-P-1000LF | |
| 3 | Disconnect electrical connectors (3, 4) from front door control unit (5) | ||
| 4 | Unscrew bolts (6) and remove outside mirror (1) from front door (7) | ||
| 5 | Unclip electrical wiring harness (8) from bracket (10) and guide through passage (arrow) | ||
| 6 | Install in the reverse order | ||
| 7.1 | Calibrate 360° camera on left or right outside mirror (1) with diagnostic system | Model 222 with code 501 (360° camera) except code Z07 (B7 armoring on special protection version) If the left or right outside mirror (1) has been removed. |
|
| AD00.00-P-2000-04B | |||
| 7.2 | Calibrate all the cameras for the 360° camera system using the diagnostic system | Model 222 with code 501 (360° camera) except code Z07 (B7 armoring on special protection version) If the left or right outside mirror (1) has been removed. |
|
| AD00.00-P-2000-04B | |||
| Check | |||
| 8 | Check outside mirror (1) for proper function |
