Prepare Reinforcement Of Inner C-Pillar Sidewall For Installation - Ar63.10-P-0700-07LFS
Model 222
with code Z07 (B7 armoring on special protection version)
The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

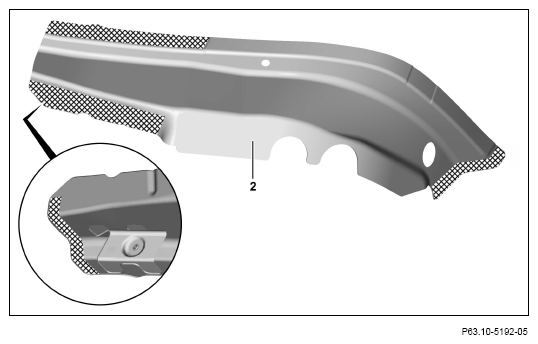

- Grind mating surfaces on reinforcement (2) down to bare metal in the crosshatched areas.
Observe pretreatment of bonding surfaces.
